- Page 1 USE AND CARE GUIDE SERIES 600D and 675D with...
- Page 3 Thank you for equipping your RV or home with an Aqua-Hot hydronic heating system! We value your business and are grateful for the trust you have placed with Aqua-Hot Heating Sys- tems Inc. Our customers are our top priority and we are committed to providing best-in-class products, service, and support.
- Page 4 Comfort Zone #7: Low Fuel Costs There’s no need to burn propane each time heat or hot water is needed. The Aqua-Hot heats a boiler tank and uses the heat stored in the liquid of the boiler tank to provide interior heat. Aqua-Hot’s 600 series uses TribridHot™ technology to power the Aqua-Hot system by pulling heat from one or a combination of heat sources.
-
Page 5: Table Of Contents
This information is important for safe and efficient use of the Aqua-Hot equipment. Heating System Features ..........6 Operating Instructions Activating the Aqua-Hot Heating System ...... 8 Operating Zone Thermostats ........8 Using the Domestic Water Heating System ....8 Operational Flowchart ........... 9... -
Page 6: Safety And Precautions
Do NOT park in areas where dry conditions exist (i.e. system grassy, dry fields) • DO NOT connect the 12V DC power to the Aqua-Hot if the • Do NOT operate the burner inside an enclosed building RV or home requires welding •... -
Page 7: Component Diagrams

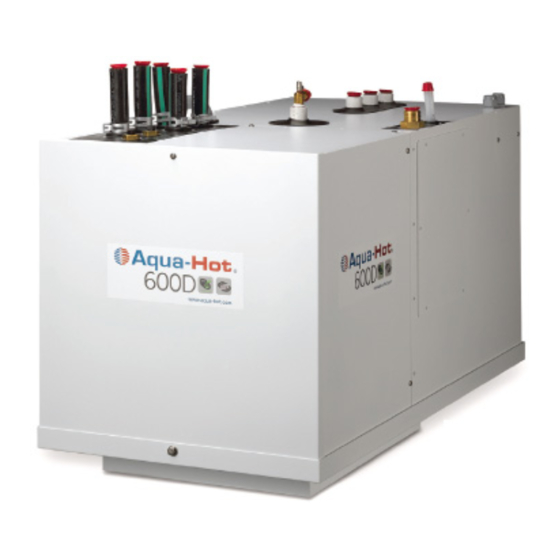

600 Series Components 1. Heating Zone Outlet Ports 2. Wiring Harness Port 3. Expansion Tank Connection 4. Heating Zone Inlet Ports 5. AC Wiring Ports 6. Domestic Water Connections 7. Domestic Water Access Panel 8. Diesel Burner 9. Drain Valve 10. -
Page 8: Heating System Features
Care & Maintenance section of this guide, or contact the Aqua-Hot Heating Systems Technical Support department The Aqua-Hot Heating System is four systems in one: at +1 (800) 685-4298 or visit our website at 1. Interior Heating System www.aquahot.com. - Page 9 “ON” position, it will supply the nec- providing heat to the coach. essary heat to the boiler tank. Keep in mind that the Aqua-Hot NOTE: The fresh water thermostat controls the bay heating must be at operating temperature for the heating zones and area and should NOT be set below 40°F to prevent freezing...
-
Page 10: Operating Instructions
“ON” position. This action will activate the correspond- switch panel to the “ON” position. ing devices within the Aqua-Hot to begin heating the unit to operating temperature. Please note that the electric element NOTE: The coach must be operating on shore power, or the retains “HIGH”... -
Page 11: Operational Flowchart
The engine’s coolant is supplied to the faucet and water solution flows circulated through the through the hydronic Aqua-Hot’s internal en- heating system transfer- gine preheat system, ring heat to the heat ex- where the heat from the changer, which is then... -
Page 12: General Information
The Aqua-Hot 600 series now contain Aqua-Hot’s new fuel. Reporter unit. The Reporter serves to replace the electronic 5. If at this stage the Aqua-Hot does not begin to function, controller in 600-D04, and 675-D04 units and later. Should please contact the Aqua-Hot Heating Systems Technical the Aqua-Hot cease to operate, complete the following steps. -
Page 13: Testing Functionality
Aqua-Hot operation as normal. The Reporter this it is not possible to test pumps, and fans concurrently. will cease all Aqua-Hot functionality after the loss of 6 consec- utive signals from the RVC network. If such a situation were to The Reporter will time out after five minutes and re- occur, the Reporter would then display “BATTERY DISCON-... -
Page 14: Maintenance
When the Aqua-Hot is at maximum operating temperature, accomplished by visually checking the coolant level in the Aq- the coolant will be very hot. If the Aqua-Hot’s heating sys- ua-Hot’s expansion tank; reference figure 5, page 14. tem is accessed, scalding by hot vapor or coolant could Please note that the coolant level should be checked result. -
Page 15: Winterization
Not winterizing the Aqua-Hot when freezing temperatures NOTE: The Aqua-Hot can continue to be used for interior are present will result in serious damage to the Aqua-Hot zone heat once the domestic water heating system has domestic water heating system. - Page 16 2. Ensure that the vehicle’s propane tank contains a suffi- cient level of fuel. The Aqua-Hot system will not operate if the fuel level is at or below 1/4 tank. 3. Ensure that the Aqua-Hot boiler tank has an adequate supply of antifreeze and water heating solution by check- ing the level at the expansion tank.
-
Page 17: Antifreeze
“boiler” type antifreeze in the In order to ensure maximum performance and longev- Aqua-Hot. Propylene glycol is a safer alternative to the more ity of an Aqua-Hot heating system’s boiler tank and associated toxic ethylene glycol antifreeze; however, as mandated by the... - Page 18 This could ultimately inhibit than utilized for the function of the heating system. Therefore, the Aqua-Hot from providing adequate domestic hot water and a higher boiling point is desired in order to combat the loss of interior heating.
-
Page 19: Measuring Anti-Freeze Using A Refractometer
Application of Propylene Glycol Boundary Line Adjust to 32°F Lower White Field Poor Poor Good p. 17 ©Aqua-Hot® 600D and 675D Use and Care Guide... -
Page 20: Owner's Service Log
Section #: Title Service Log DATE SERVICE PERFORMED SERVICE CENTER ©Aqua-Hot® 600D and 675D Use and Care Guide... - Page 21 Service Log DATE SERVICE PERFORMED SERVICE CENTER p. 19 ©Aqua-Hot® 600D and 675D Use and Care Guide...
-
Page 22: Warranty
2-YEAR LIMITED WARRANTY AQUA-HOT® HYDRONIC HEATING SYSTEM Aqua-Hot Heating Systems Inc. warrants the Aqua-Hot Heater to be free from defects in material and workmanship under normal use and service for a period of two years on both parts and labor commencing upon the original date of registration of the vehicle. Replacement parts are warranted for the remainder of the Heater’s standard warranty coverage or for six months,... - Page 24 LTE-907-900 Rev. C SERIES Aqua-Hot Heating Systems, Inc. 7501 Miller Drive, Frederick, CO 80504 Visit us on line at www.aquahot.com Call us at (800) 685-4298 or (303) 651-5500 ©2018 Aqua-Hot Heating Systems Inc. Printed In U.S.A.
