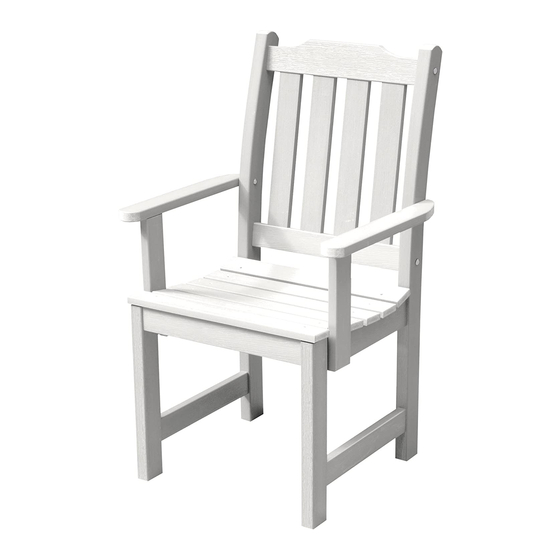

highwood Lehigh Dining Chair with Arms Assembly Manual

Lehigh Collection
Dining Chair with Arms
Assembly Guide
Left Leg Assy
Right Leg Assy
2) Attach the seat to the legs with
(4) "B" bolts. The Highwood badge
should be visible from the back.
highwood
NATURE'S CLOSEST RIVAL
C x4
Back Assy
1) Attach the left & right legs
to the back with (4) "C" bolts.
B x4
For information on Care and Cleaning or to register your
highwood product, please visit www.highwood-usa.com.
A
B
C
Seat Assy
HARDWARE
#1/4-20 x 2-1/2"
x4
#1/4-20 x 1-1/2"
#1/4-20 x 2"
IMPORTANT!
DO NOT fully tighten the bolts until all
bolts are started. Once all bolts are inserted,
go back & tighten all the bolts.
Retain these instructions for future reference
INCLUDED TOOLS
5/32" HEX KEY
CHDL2
03.13.18
PAGE 1 OF 2
x4
x6
