Lehigh, Weatherly, or Adirondack Collection
Rectangular, Square, or Sideboard Tables
Assembly Guide
- AD-DTB25/AD-CTB25 - 22x54 Sideboard
or Counter Height Sideboard Table
- AD-DTB37/AD-CTB37 - Rectangular 36x72 Dining or Counter Height Dining Table
- AD-DTB47/AD-CTB47 - Rectangular 42x72 Dining or Counter Height Dining Table
- AD-DTB48/AD-CTB48 - Rectangular 42x84 Dining or Counter Height Dining Table
This assembly guide applies to all tables displayed above!
highwood
NATURE'S CLOSEST RIVAL

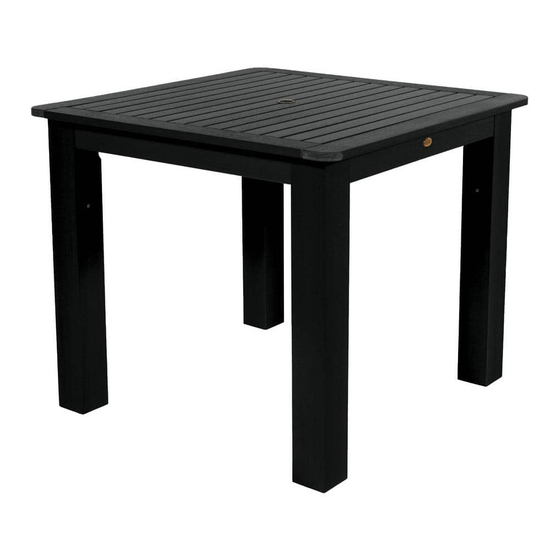

- AD-DTB44/AD-CTB44 - 42x42 Square
Dining or Counter Height Dining Table
For information on Care and Cleaning or to register your
highwood product, please visit www.highwood-usa.com.
HARDWARE
x8
A
1/4"-20 x 3" Bolt
B
2" Umbrella Grommet
IMPORTANT!
DO NOT fully tighten the nuts until all
nuts are started. Once all nuts are started,
go back & tighten all the nuts.
Retain these instructions for future reference
INCLUDED TOOLS
5/32" HEX KEY
All AD-DTB/AD-CTB
PAGE 1 OF 1
x1
08.07.2017
Advertisement
Table of Contents
Related Manuals for highwood AD-DTB25
Summary of Contents for highwood AD-DTB25
- Page 1 Rectangular, Square, or Sideboard Tables Assembly Guide 1/4"-20 x 3" Bolt 2" Umbrella Grommet - AD-DTB44/AD-CTB44 - 42x42 Square - AD-DTB25/AD-CTB25 - 22x54 Sideboard or Counter Height Sideboard Table Dining or Counter Height Dining Table IMPORTANT! DO NOT fully tighten the nuts until all nuts are started.
- Page 2 4) Securely tighten all bolts, but do not over tighten. 5) If installing an umbrella, insert Umbrella Grommet B into center hole. All AD-DTB/AD-CTB highwood For information on Care and Cleaning or to register your 08.07.2017 highwood product, please visit www.highwood-usa.com. PAGE 2 OF 2 NATURE'S CLOSEST RIVAL...
