Adirondack Collection

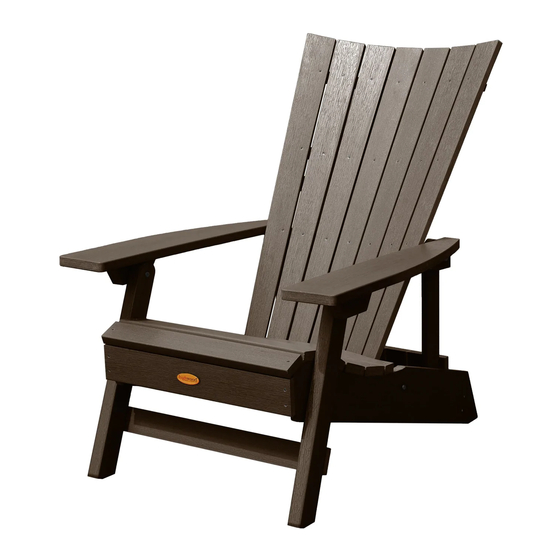

Manhatten Adirondack Chair
Assembly Guide
1) Attach Seat to Back using bolt C.
2) Repeat on other side.
highwood
NATURE'S CLOSEST RIVAL
BACK
C
SEAT
3) Attach Back Support Brace (shorter piece)
to Back Support Sides with four A screws.
For information on Care and Cleaning or to register your
highwood product, please visit www.highwood-usa.com.
A
#7 x 1-5/8"
B
1/4"-20 x 2"
C
DO NOT fully tighten the bolts until all
bolts are started. Once all bolts are inserted,
go back & tighten all the bolts.
Retain these instructions for future reference
INCLUDED TOOLS
A
CUSTOMER-SUPPLIED TOOLS
Cordless screwdriver/drill OR
Multi-bit handle for the Torx bit.
HARDWARE
x8
x2
1/4"-20 x 3"
IMPORTANT!
5/32" HEX KEY
T-15 TORX BIT
ADRID129A/B
07.05.2017
PAGE 1 OF 2
x4
Advertisement
Related Manuals for highwood Manhatten Adirondack Chair
Summary of Contents for highwood Manhatten Adirondack Chair
- Page 1 Back Support Sides with four A screws. Cordless screwdriver/drill OR Multi-bit handle for the Torx bit. ADRID129A/B highwood For information on Care and Cleaning or to register your 07.05.2017 highwood product, please visit www.highwood-usa.com. PAGE 1 OF 2 NATURE'S CLOSEST RIVAL...
- Page 2 To fold the chair, lift the back-support and gently push down on the back of the chair. The chair will collapse down to floor level. 8) Attach Front Leg Support with four A screws. Enjoy your Highwood Chair! ADRID129A/B highwood For information on Care and Cleaning or to register your 07.05.2017...
