Adirondack Collection

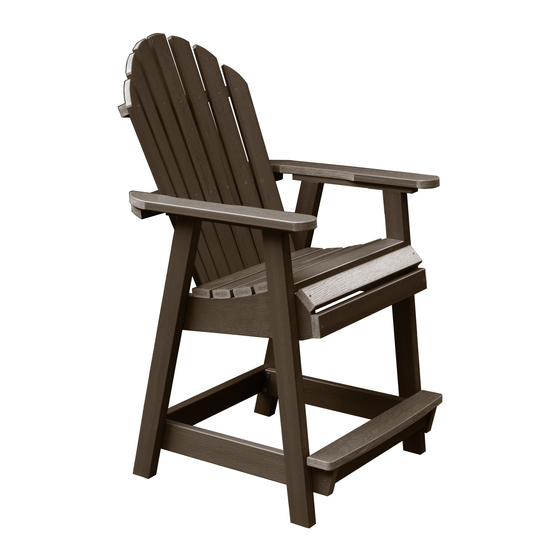

Hamilton Deck Chair
Counter Height
Assembly Guide
IMPORTANT!
DO NOT fully tighten the bolts until all bolts are started.
Once all bolts are inserted, go back & tighten all the bolts.
HARDWARE INCLUDED
A
1/4"-20 x 1-1/2"
B
1/4"-20 x 1-3/4"
C
1/4"-20 x 2"
BACK
Qty: 8
Qty: 2
Qty: 6
A
SEAT
For information on Care and Cleaning or to Register your
highwood product, please visit www.highwood-usa.com.
TOOLS INCLUDED
5/32" HEX KEY
1) Insert (1) "A" Bolt into Lower Hole on Each
Side to Attach Seat to Back. Make Sure the
Back is Fully Upright. Make Bolts Snug, but Do
Not Overtighten.
AD-CHCA2
08.17.2021
PAGE 1 OF 2
