Design and function
Transport and installation

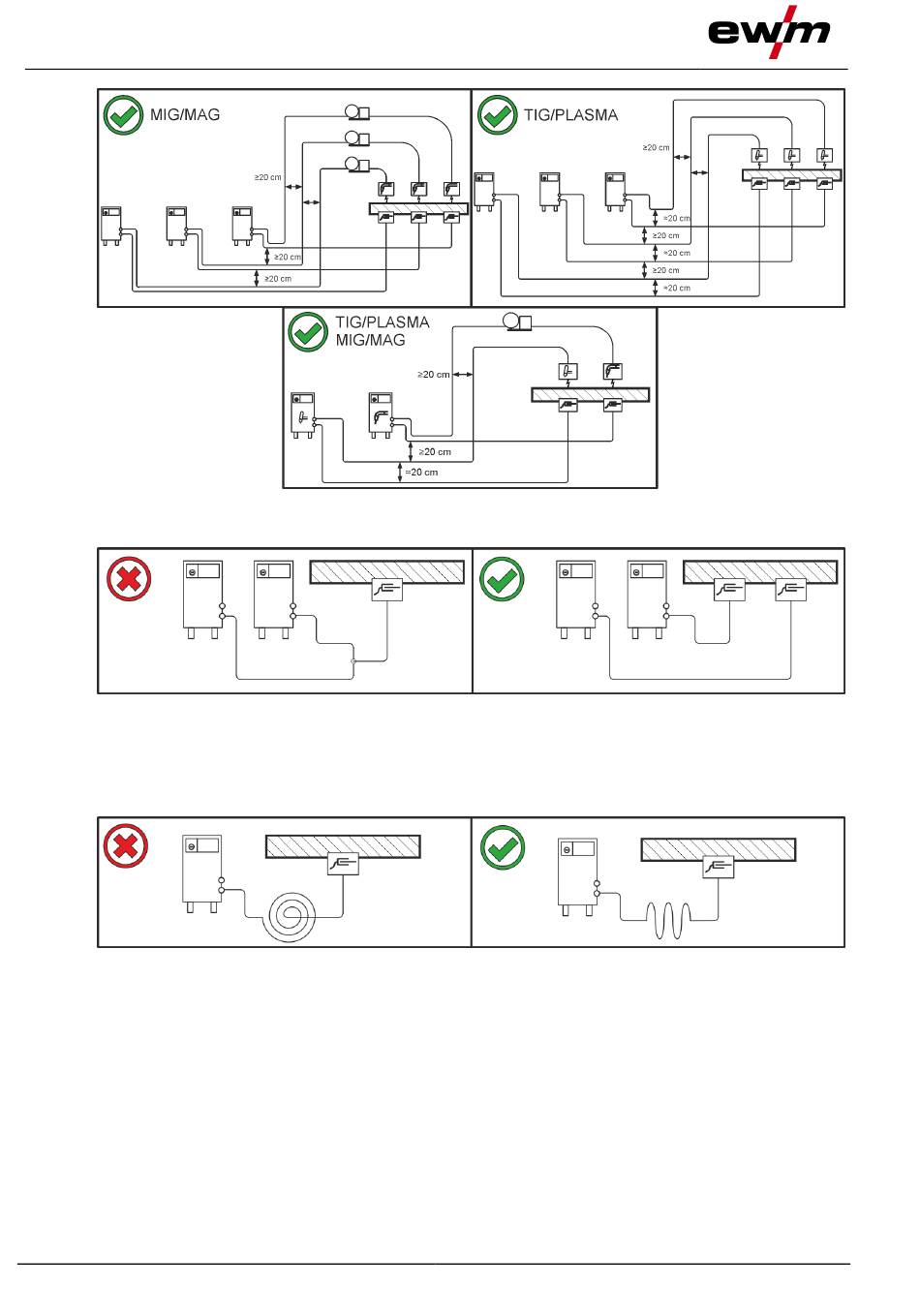

Use an individual welding lead to the workpiece for each welding machine!
Fully unroll welding current leads, torch hose packages and intermediate hose packages. Avoid
loops!
Always keep leads as short as possible!
Lay any excess cable lengths in meanders.
22
Figure 5-2
Figure 5-3
Figure 5-4
099-002032-EW501
15.10.2018
