1. Teileliste
2. Anwendungsbereich
Bestimmungsgemäß dient der Anschlussblock als Adapter von D-Sub- auf
M12-Anschlusstechnik für Profibus
3. Befestigung
Befestigungs-
Gewinde
elemente
Schrauben
4 x M3
Stecker
2 x M12
4. Anschlussbild
IN (Stift)
Das Anschlussbild entspricht IEC 947-5-2 allerdings mit invertierter mecha-
nischer Kodierung (Reverse-Key- bzw. B- Kodierung).

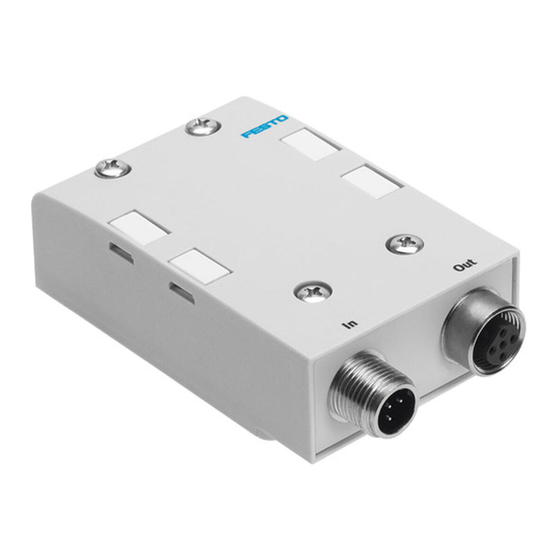

1 Anschlussblock
CPX-AB-2-M12-RK-DP
1
®
DP bei CPX.
Anzugsdrehmomente
0,5 Nm
0,8 Nm
2
1
Out (Buchse)
5
4
3
Montageanleitung (de)
690389 / 2005-02NH
Anschlussblock
CPX-AB-2-M12-RK-DP
541519
5. Kontaktbelegung
Profibus
Ankommende
(Signal)
Schnittstelle IN
PE
M12-Gewinde
VP-P5V
nc
RxD/TxD-N
2
DGND
nc
RxD/TxD-P
4
PE
5
6. Schutzart
Hinweis
Bei unbelegtem Ausgang verwenden Sie die Abdeckkappe ISK-M12
T-Nr. 165592 (10 Stück), nur dann wird die Schutzart IP65 erreicht.
® PROFIBUS ist ein eingetragenes Warenzeichen der PROFIBUS International.
†‡
Festo AG & Co. KG
Postfach
73726 Esslingen
++49/(0)711/347-0
www.festo.com
Abgehende
Schnittstelle Out
M12-Gewinde
1
2
3
4
5
