Summary of Contents for Festo CPV GEASI-4 Series

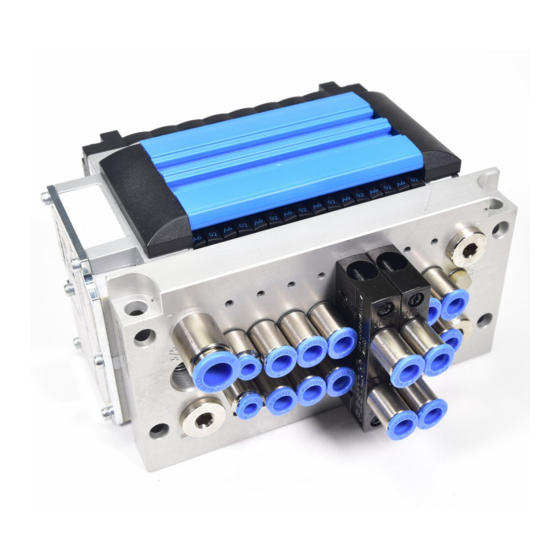

- Page 1 Compact performance Brief description CPV valve terminal with AS-Interface type CPV..-GE- ASI-4-... – English 8080210 2017-11e [8080212]...
- Page 2 For all available product documentation è www.festo.com/pk ® AS-Interface is a registered trademark of the AS-Interface Association . Copyright: Festo SE & Co. KG Ruiter Straße 82 73734 Esslingen Germany Internet: http://www.festo.com E-Mail: service_international@festo.com Reproduction, distribution or sale of this document or communication of its contents to others without express authorization is prohibited.
- Page 3 S Connect the earth connection on the end plate with low impedance (short cable with large cross-sec tional area) to the earth potential. S Commission only a valve terminal which has been fitted and wired completely. Festo CPV..-GE-ASI-... 2017-11e English...
- Page 4 Can be configured via DIP switch, see sections 4.1 and 4.2. PWR LED Fault LED Meaning AS-Interface voltage applied, no fault No AS-Interface voltage on the bu flashes AS-Interface address not set (= 0) flashes Valve diagnosis fault (see section 3.4) Bus communicat. failed (watchdog expired) Festo CPV..-GE-ASI-... 2017-11e English...
- Page 5 The address mapping depends on the configuration of the master. 3.2 Assigning the AS-Interface address Recommendation: Use the addresser type ASI-PRG-ADR with adapter cable type KASI-ADR from Festo. The addresser scans the existing slaves in the AS-Interface network. Assign the desired address to the slave (factory setting: address #0).
- Page 6 5/2-way double-solenoid valves or 5/3-way valves (e.g. J, N, C, H, G, D, I, E) 8 Only blanking plate or separator plate permitted (e.g. code L, S, T) Or blanking plate or separator plate Festo CPV..-GE-ASI-... 2017-11e English...
- Page 7 (diagnosis active, eral faults and displayed via the fault factory setting) LED (see section 2). P3 = 0 Valve faults are not registered as pe (diagnosis inactive) ripheral faults and are not displayed via the fault LED. Festo CPV..-GE-ASI-... 2017-11e English...
-
Page 8: Installation
ASI-SD-FK-BL (max. 0.3 Nm). – Electric sub-base as individual part or spare part (type CPV..-GE-ASI-4-Z): Factory setting: Load voltage supply via separate load voltage connection. If necessary, configure the load voltage supply with the DIP switch, see section 4.2. Festo CPV..-GE-ASI-... 2017-11e English... - Page 9 Supplying the valves via the AS-Interface 3, 4: Off bus (seal connection “24 V DC” with a blanking plug type ASI-SD-FK-BL). black = pressed Instructions on removing the electric sub-base can be found in the Pneumatics Manual. Festo CPV..-GE-ASI-... 2017-11e English...
- Page 10 PELV circuits in accordance with IEC/DIN EN 60204-1. By the use of PELV circuits, protection against electric shock (protection against direct and indirect contact) is guaranteed in accordance with IEC/EN 60204-1 (Electri cal equipment for machines, General requirements). Festo CPV..-GE-ASI-... 2017-11e English...
- Page 11 Pin 2: + 24 V (brown) Pin 1: 0 V (blue) Can be configured via DIP switch, see section 4.2. For connecting the valve terminal use the Festo cable sockets type ASI-SD-FK..You will then comply with protection class IP65. Proceed as follows: 1.
- Page 12 DIP switches on the bottom of the electric sub-base. DIP switch for the valve configuration on the bottom of the sub-base Permitted valve combinations and relevant DIP switch settings see table in section 3.3. Festo CPV..-GE-ASI-... 2017-11e English...
-
Page 13: Technical Specifications
– EMC interference emission See declaration of – EMC resistance to interference conformity è www.festo.com AS-Interface data – ID code – I/O code – ID code 2 – Profile S-8.F.E – Activate/deactivate diagnosis Parameter port 3 Festo CPV..-GE-ASI-... 2017-11e English... - Page 14 See section 3.4 – Parameter port P3 = 1 Any faults or malfunctioning (factory setting) which occur will be regis tered as peripheral faults on the AS-Interface master. – Parameter port P3 = 0 No fault message Festo CPV..-GE-ASI-... 2017-11e English...
