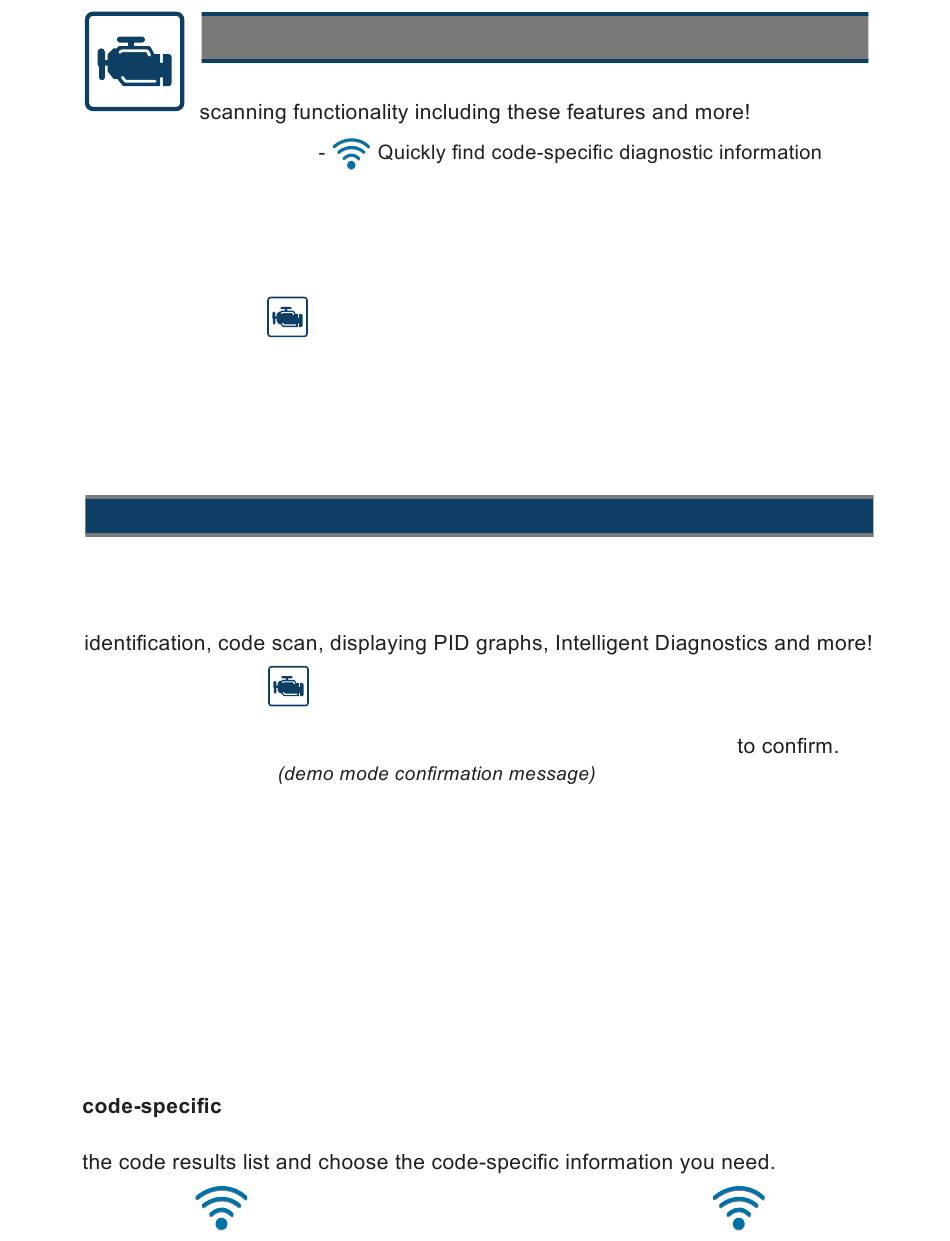

Snap-On Zeus Getting Started Pack page 4

Scanner
Scanner makes vehicle communication easy, by providing full
Intelligent Diagnostics
Data Graphing - View up to 16 graphs at once for data comparison analysis
Code Scan - Scan multiple systems and check readiness monitors in a single touch
Tests/Resets - Perform functional component tests, and adaptive relearns
Scanner Basics
1. Select Scanner
2. Select the vehicle make.
3. As prompted, identify the vehicle.
4. Select a system (e.g. Code Scan, Engine, Transmission, Body, etc.).
5. Connect the Compact Scan Module (CSM) to the vehicle.
6. Select a function/test (e.g. Codes Menu, Data Display, Functional Tests, etc.).
Scanner Demo / Intro to Intelligent Diagnostics
Explore Scanner and Intelligent Diagnostics without actually connecting to a
vehicle. The built-in demonstration gets you up-to-speed by allowing you to
navigate hands-on through simulated Scanner operations, including vehicle
1. Select Scanner
2. Select Demonstration from the vehicle make menu.
3. Select 2014 Chevrolet Tahoe North American Demo, then OK
4. Select Continue
5. Make a selection from the System Menu:
a. To use the Intelligent Diagnostics Interactive Demonstration
b. Select other menu options to see additional Scanner functions.
Examples:
• select Code Scan to see a typical code scan of all available
control modules.
• select Engine > Engine Data to see a typical PID list and view
PID graphs.
What is Intelligent Diagnostics?
Intelligent Diagnostics gives you the latest Top Repair information, TSB's,
data (Smart Data), tests, and more all obtained from actual shop
repair orders and industry professionals. It's easy to use, just select a code from
, from the Home screen.
from the Home screen.
Wi-Fi is required to use
Not required for Demo.
.
Intelligent Diagnostics.
.
(see next page)
