True IDE Multiword DMA Read/Write Access Timing

This function does not apply to SiliconDrives that have DMA disabled.

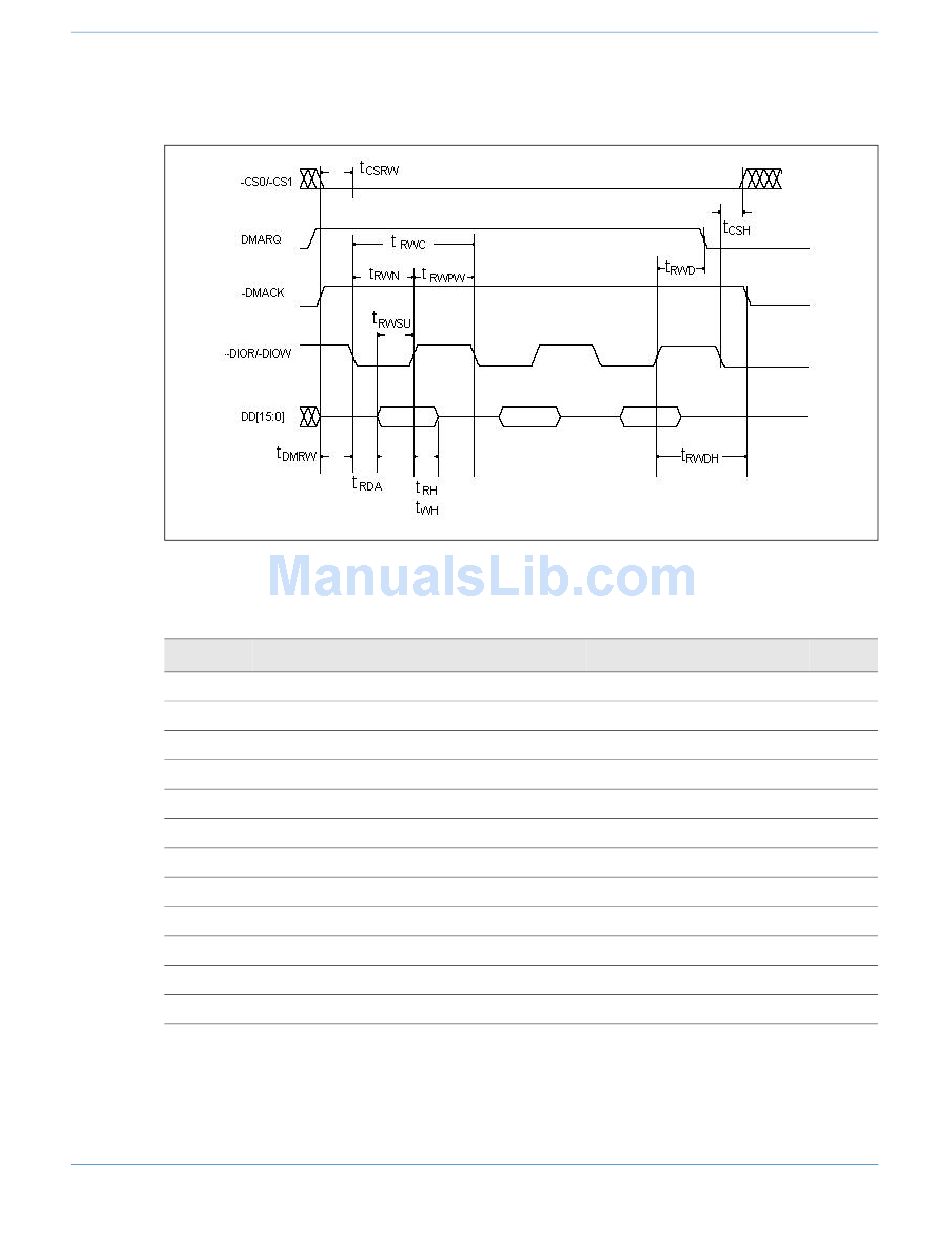

Figure 7: True IDE Multiword DMA Read/Write Access Timing

Table 15: True IDE Multiword DMA Read/Write Access Timing

Symbol
t
RWC
t
RWPW
t
RDA
t
RWSU
t
WH
t
RH
t
DMRW
t
RWDH
t
RWN
t
RWD
t
CSRW
t
CSH
This document and the information contained within it is confidential and proprietary to SiliconSystems, Inc.
3600D-04DSR
Parameter
Cycle Time (mode 2)
DIOR/DIOW Pulse Width
DIOR Data Access
DIOR/DIOW Data Setup Time
DIOW Data Hold Time
DIOR Data Hold Time
DMACK to DIOR/DIOW Setup Time
DIOR/DIOW to DMACK Hold Time
DIOR/DIOW negated Pulse Width
DIOR/DIOW to DMARQ Delay
CS(1:0) valid to DIOR/DIOW
CS(1:0) Hold Time
S S
ILICON YSTEMS
All unauthorized use and/or reproduction is prohibited.
SSD-D
Minimum
100
65
-
15
5
5
0
5
25
-
10
10
P
ROPRIETARY
P 14
AGE
(I)-3600 D S
XXX ATA HEET
Maximum Units
- ns
- ns
50 ns
- ns
- ns
- ns
- ns
- ns
- ns
35 ns
- ns
- ns
F 2, 2009
