Pin Locations; Jumper Settings; Figure 2: Pin Locations; Figure 3: Jumper Settings - Silicon Systems SiliconDrive SSD-D16G(I)-3600 Datasheet

P S
HYSICAL PECIFICATIONS
P L
IN OCATIONS

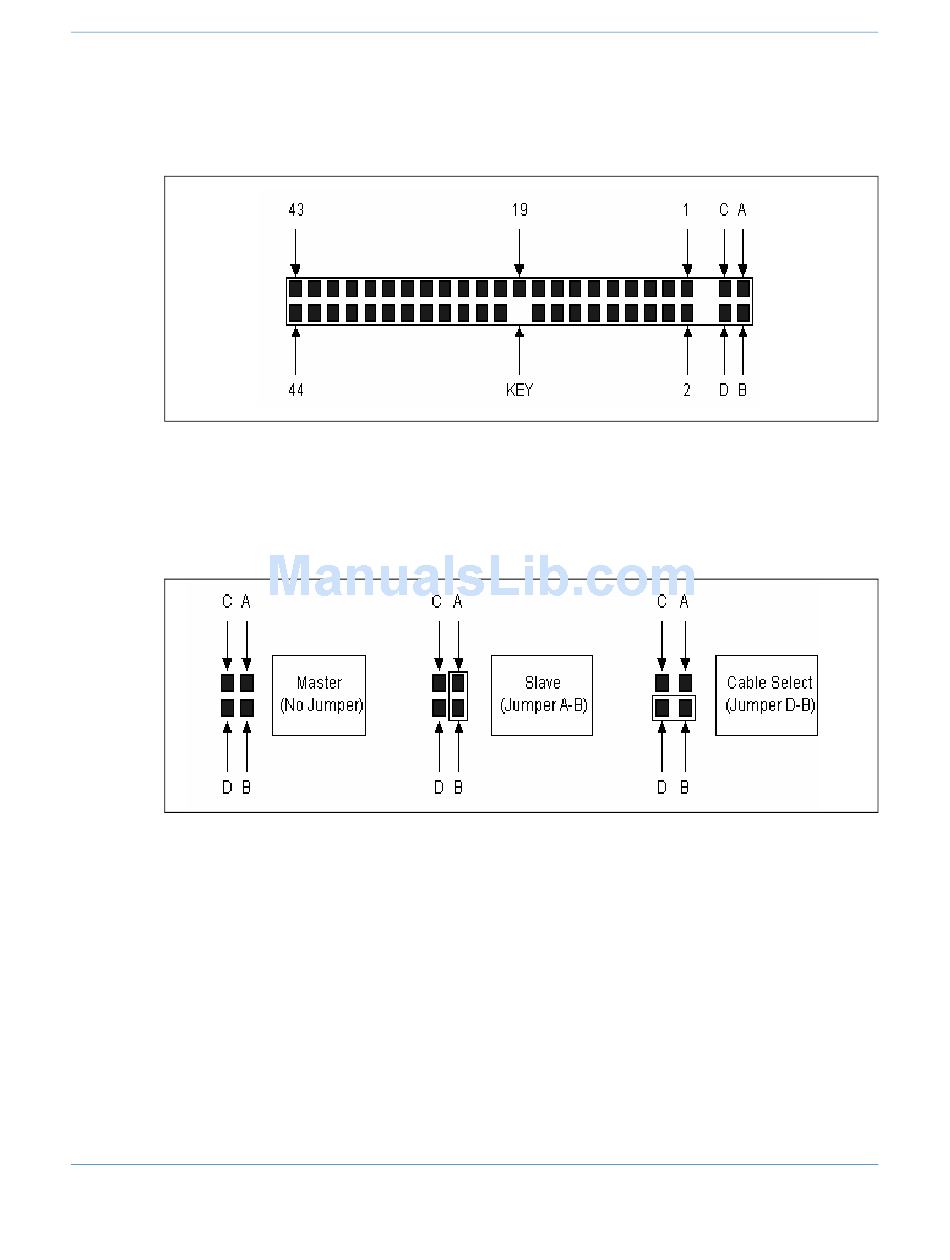

The following diagram identifies the pin locations of the 2.5" Drive.
J S
UMPER ETTINGS
The following diagram defines the SiliconDrive 2.5" Drive jumper settings.
This document and the information contained within it is confidential and proprietary to SiliconSystems, Inc.
3600D-04DSR

Figure 2: Pin Locations

Figure 3: Jumper Settings
