D
ELIVERY CONTENTS
P
ACKAGE CONTENTS
In addition to the fax machine and this manual, you will find the
following parts in the package:
• The telephone line connection cable.
• The power cable.
• The telephone plug (if applicable).
• The box containing the monochrome print head provided with the
machine.
• The telephone handset.
• List of freephone numbers for servicing and warranty enquiries.
C
ONNECTING TELEPHONE LINE

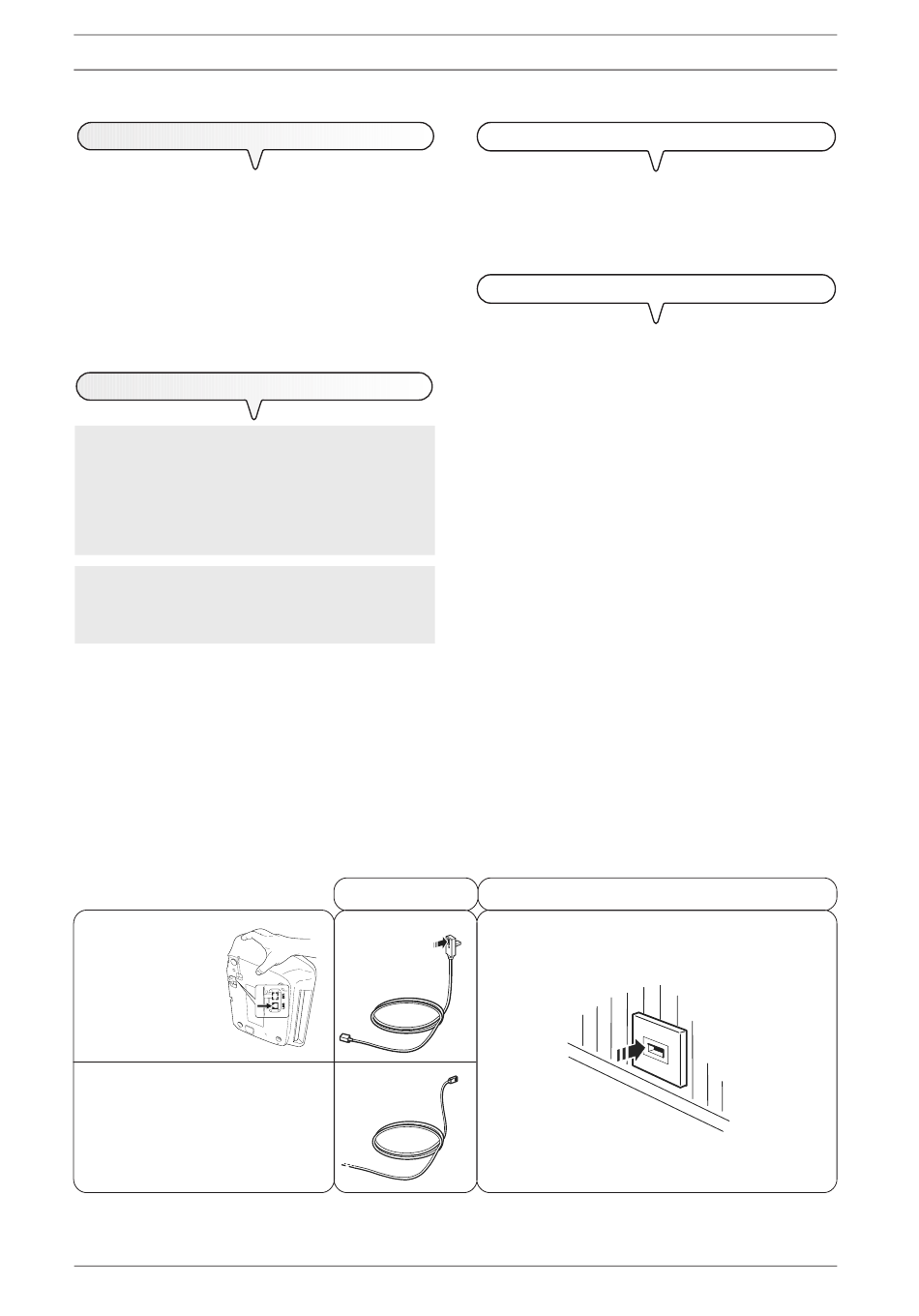

The fax machine telephone line connection, additional telephone
or other devices are regulated by national standards. These
norms vary from country to country. The following diagrams
illustrate several connections. However, if the connection to the
telephone line is different in your country is different from those
shown in the diagrams, respect the regulations in force in your
country.
The fax machine is set up for connection to the public telephone
line. If you want to connect it to a private line and you also want
to use it on a public line, see "Setting up according to line
characteristics".
C (U.K./I
ONNECTION RELAND
F
AX
Connection sockets
A
E
MERGENCY TELEPHONE
2
All manuals and user guides at all-guides.com
,
CONNECTING UP AND FIRST
)
C
ORD
C
A
-
TIME OPERATION
C
ONNECTING FAX MACHINE
1. Lay the fax machine on its right side.
2. Insert one end of the telephone line cable into the "LINE" socket
on the base of the fax machine (see example).
3. Insert the plug on the other end of the cable into the wall telephone
line socket (see example).
C
ONNECTING ADDITIONAL TELEPHONE
(Connection example)
1. Insert the plug of the additional device into the wall telephone line
socket.
2. Note connection example.
ATTENTION
The additional connection socket EXT hidden in the base must not
be used for Germany and Austria. This EXT socket must not be
used.
W
ALL SOCKETS FOR CONNECTION TO TELEPHONE LINE
B
B
C
