Estate Swing E-SC 1600 Series Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

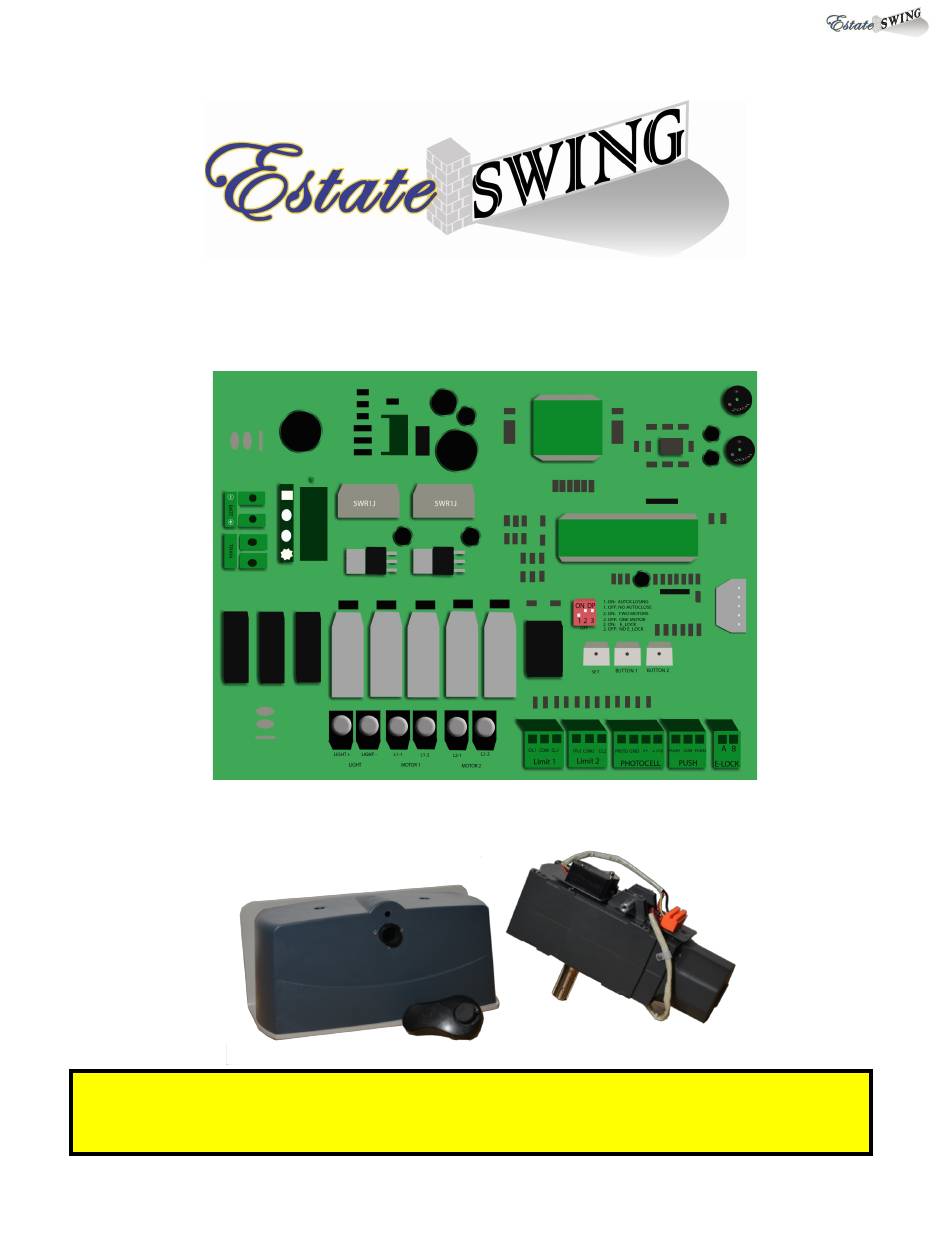

Instruction Manual for the
E-SC
1600 /
E-SC
1602 Series
WARNING - Read all instructions before beginning installation or use of this gate
opener. This operator exerts a high level of force. Exercise caution at all times and
stay clear of the system during operation.
Estate Swing E-SC 1600 / E-SC 1602 Column Mounted Gate Opener Instructions.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E-SC 1600 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Estate Swing E-SC 1600 Series

Summary of Contents for Estate Swing E-SC 1600 Series

  • Page 1 WARNING - Read all instructions before beginning installation or use of this gate opener. This operator exerts a high level of force. Exercise caution at all times and stay clear of the system during operation. Estate Swing E-SC 1600 / E-SC 1602 Column Mounted Gate Opener Instructions.
  • Page 2 Estate Swing Summary of Functions The Estate Swing is only to be used for vehicular swing gates in a Class I setting. Class I: A vehicular gate opener (or system) intended for use in a home of one-to-four single family dwelling, or a garage or parking area associated therewith.

  • Page 3: Clutch

    12 5/8” x 6 7/8” x 6 3/8” 1) Motor 2) Manual Release Clutch Cam 3) Limit Switch Cams 4) Gear Box 5) Limit Switches 6) Transmission Shaft Estate Swing E-SC 1600 / E-SC 1602 Column Mounted Gate Opener Instructions.
  • Page 4 3. Lock Nuts (2) 5/16” hex bolts for gate (cut to size) (2) Control / Power Contents 1. Control Board 2. Receiver 3. Transmitter 4. Transformer 5. Control Box Estate Swing E-SC 1600 / E-SC 1602 Column Mounted Gate Opener Instructions.

  • Page 5: Preliminary Checks

    Make sure the gate is plumb and level.  The gate post must be secured in the ground with concrete. This will prevent the  gate from shifting during installation. Estate Swing E-SC 1600 / E-SC 1602 Column Mounted Gate Opener Instructions.

  • Page 6: Cover

     Other items that may be needed prior to commencing installation. Start and stop post, bracket or door stop. Although the Estate Swing E-SC 1600 features soft start/stop and  uses limit switches, it is still best to have the gate(s) close against positive stops.
  • Page 7 In either case when you turn the handle there will be two audible clicks as it is released. Restoring Standard Operation Disconnect power prior to re-engaging the manual release. If the board is active injury from unexpected motor movement can occur. Estate Swing E-SC 1600 / E-SC 1602 Column Mounted Gate Opener Instructions.
  • Page 8 - operation only. This means the gate operator is mounted on the inside of the property and pulls your gate in towards the property. 5 to 6 1/4” 6 to 15 1/2” Estate Swing E-SC 1600 / E-SC 1602 Column Mounted Gate Opener Instructions.

  • Page 9: Estate Swing E-Sc 1600 / E-Sc 1602 Column Mounted Gate Opener

    3. Fit the gear motor back onto the base plate and secure it with 4 long bolts. Important: The transmission shaft must always face down- ward. Estate Swing E-SC 1600 / E-SC 1602 Column Mounted Gate Opener Instructions.

  • Page 10: Pivot

    7. Ensure the arm is level and attach the gate bracket using the 5/16 bolts. Once the bolts are attached the remainder can be cut off. 8. Relock the operator and assemble the motor housing. Estate Swing E-SC 1600 / E-SC 1602 Column Mounted Gate Opener Instructions.
  • Page 11 6 inches of pipe is sticking out from under the driveway. On the opposite side of the driveway look for a wet spot or water bubbling up, dig to find the end of the pipe. Estate Swing E-SC 1600 / E-SC 1602 Column Mounted Gate Opener Instructions.

  • Page 12: Estate Swing E-Sc 1600 / E-Sc 1602 Column Mounted Gate Opener Instructions

    The terminals come closed. Be sure not to mistake this for open and insert the wires below the terminal clamp. This will lack the conductivity to complete the circuit. Estate Swing E-SC 1600 / E-SC 1602 Column Mounted Gate Opener Instructions.
  • Page 13 3. Move the gate to the closed position. Move the bottom ring until it is pushing the switch on the bottom limit switch. 4. Retighten the limit switch ring screw to hold the rings in the correct place on the driveshaft. Estate Swing E-SC 1600 / E-SC 1602 Column Mounted Gate Opener Instructions.
  • Page 14 Right hand motor: Motor 1 L1-1: Black, Motor1 L1-2: Red, Limits on Limit1 block Left hand motor: Motor 2 L2-1: Red, Motor2 L2-2: Black, Limits on Limit2 block Estate Swing E-SC 1600 / E-SC 1602 Column Mounted Gate Opener Instructions.
  • Page 15 1 OFF. If the dip switch is set to on, the gate will auto-reclose after turning it on without any intentional activation on your part. Estate Swing E-SC 1600 / E-SC 1602 Column Mounted Gate Opener Instructions.
  • Page 16 Power The Estate Swing E-SC 1600 comes with 1) 24V transformer. The transformer supplied has 2 screw terminals to connect to. You may locate the transformer up to 200’ away from the control board using 16 gauge, 2 conductor stranded direct burial low voltage wire. Do not use solid core wire.
  • Page 17 Activate using Push 1 button (as shown above) The gate should run open. Press Push 1 again and it should run closed. The gate is now set up for regular usage. Estate Swing E-SC 1600 / E-SC 1602 Column Mounted Gate Opener Instructions.
  • Page 18 6. LED shows P6: P6 is the delay for automatic re-close from the open position – this option needs to be turned on using the dip switch on the board. The options are 0-99 seconds. Estate Swing E-SC 1600 / E-SC 1602 Column Mounted Gate Opener Instructions.
  • Page 19 Estate Swing 433 Plug-in Receiver 1. With the red plug already inside the control box, run the grey receiver wire out of the box through one of the water tight connections. DO NOT PERFORM THIS STEP WITH THE RED PLUG ATTACHED TO THE CONTROL BOARD.
  • Page 20 Estate Swing 433 Plug-in Receiver (cont.) 5. Plug the red clip inside the control box into the control board. The groove in the red clips should snap into the guide on the 5 prong connector. 6. The red power light should come on the receiver.

  • Page 21: Troubleshooting

    The arms are not wired in or properly wired on the limit switch connections. Without the limit switch connections being closed the board will not light up. More on next page Estate Swing E-SC 1600 / E-SC 1602 Column Mounted Gate Opener Instructions.
  • Page 22 The options are 0-9 seconds delay. Estate Swing E-SC 1600 / E-SC 1602 Column Mounted Gate Opener Instructions.
  • Page 23 Below are examples of control board pictures and motor pictures that we will be looking for: Picture shown is actual customer photo Estate Swing E-SC 1600 / E-SC 1602 Column Mounted Gate Opener Instructions.

  • Page 24: Control Board Overview

    6. When stopped mid cycle - momentary contact will open the gate. 7. When open with auto-reclose off - momentary contact will have no effect. 8. When closing - momentary contact will re-open the gate. Estate Swing E-SC 1600 / E-SC 1602 Column Mounted Gate Opener Instructions.
  • Page 25 PUSH 1 and PUSH 2 – these terminals can hold as many normally open connections as needed, they will be wired in parallel. They are used for keypads, push buttons, universal receivers, etc. Estate Swing E-SC 1600 / E-SC 1602 Column Mounted Gate Opener Instructions.
  • Page 26 Fuses: F1 = 8A 250V, protects motor 1 F2 = 8A 250V, protects motor 2 (Right to left F3 = 2A 250V, protects accessory output +24V on board) Estate Swing E-SC 1600 / E-SC 1602 Column Mounted Gate Opener Instructions.
  • Page 27 At this point no accessories or remotes will be able to activate the gate opener until the gate opener is reset by disconnecting primary power battery. Estate Swing E-SC 1600 / E-SC 1602 Column Mounted Gate Opener Instructions.

  • Page 28: Accessory Wiring

    24V Power Negative (-) or (GND) or (PWR) or Shield wire of exit device = GND ter minal of PHOTO block on gate opener control board. Estate Swing E-SC 1600 / E-SC 1602 Column Mounted Gate Opener Instructions.
  • Page 29 Connect negative lead of the power supply to the N/C terminal of the relay. Connect the COM terminal of the relay to the negative lead of the mag lock. Estate Swing E-SC 1600 / E-SC 1602 Column Mounted Gate Opener Instructions.

This manual is also suitable for:

E-sc 1602 series
