Ssd; Removing The Ssd From Carrier - Dell Latitude 5424 Rugged Owner's Manual

3 Install the: Batteries
4 Follow the procedure in

SSD

Removing the SSD from carrier

1 Follow the procedure in
2 Remove the:
a Batteries.
b SSD(Primary or Secondary).

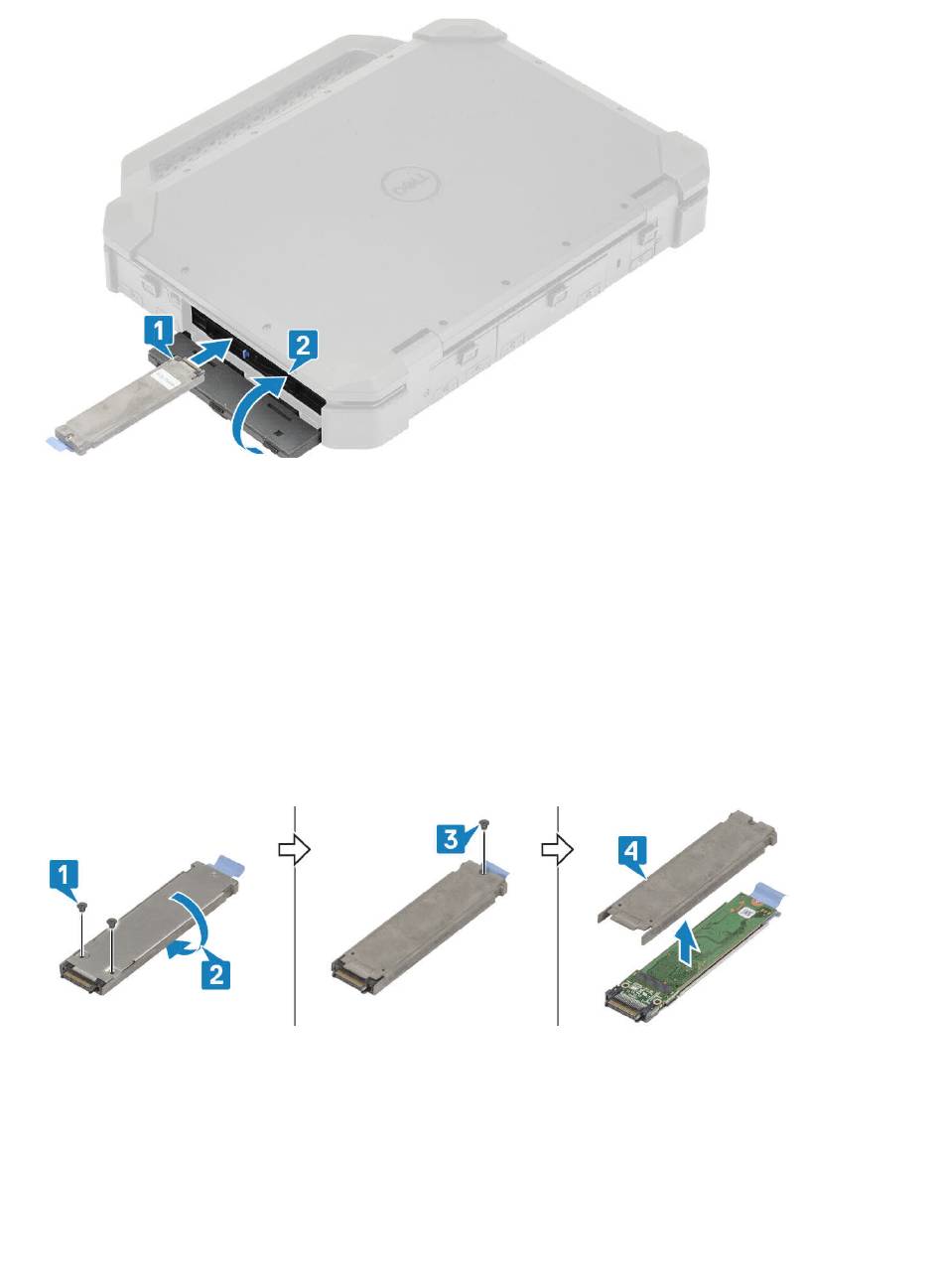

3 Remove the two 'M2*5' screws [1] and flip over the SSD carrier [2].
4 Remove the single 'M2*5' screw [3] and separate the cover from the SSD carrier [4].
5 Separate the SSD and interposer [1] from the SSD carrier tray.
6 Flip over the assembly and disconnect the SSD from the interposer [3].
After working inside your computer.
Before working inside your computer.
Removing and installing components 115
