Dell Latitude 9510, P94F, P95F Manual

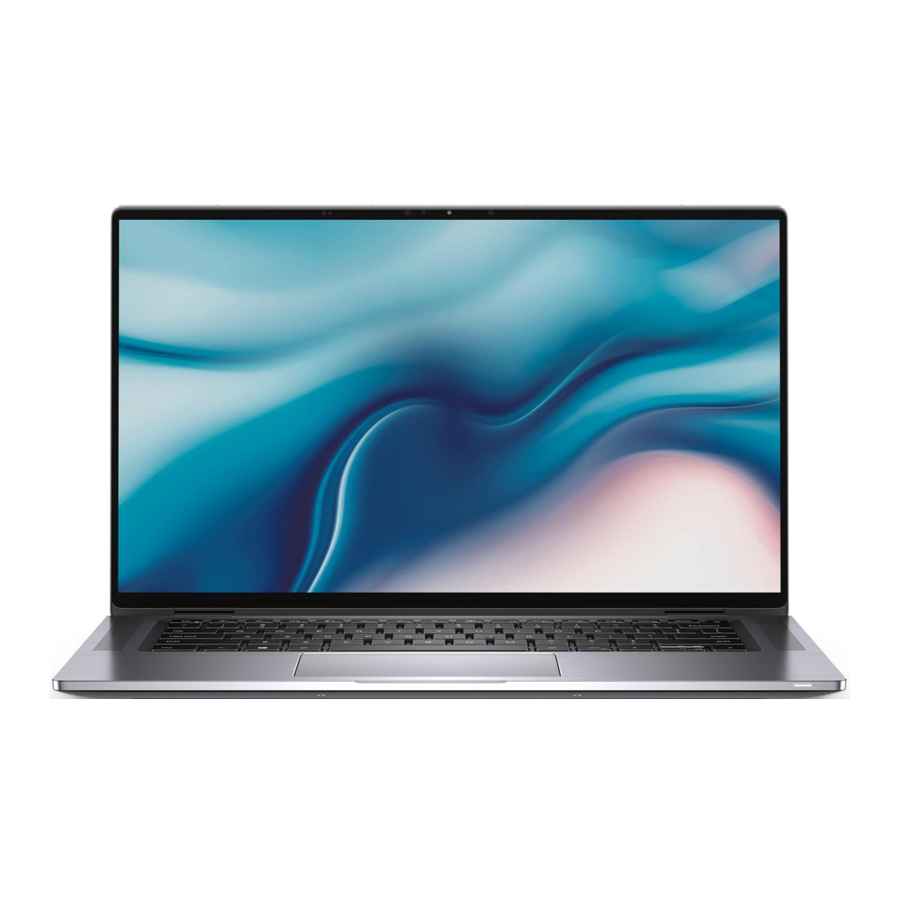

Latitude 9510 views

Display view

1. Proximity sensor
2. IR emitter
3. Ambient Light Sensor (ALS)
4. Camera (IR/RGB)
5. Camera status LED
6. IR emitter
7. Display panel
8. Battery / Diagnostics status LED

Top view (2-in-1 Chassis)

1. Microphones
2. Power button
3. Right side speaker
4. Touchpad
5. Left side speaker

Top view

1. Microphone
2. Camera shutter
3. Microphone
4. Power button with fingerprint reader (optional)
5. Right side speaker
6. Touchpad with NFC (optional)
7. Left side speaker

Right view

1. Noble Wedge-shaped slot
2. 3.5 mm universal audio jack
3. USB 3.2 Gen 1 Type-A port with Power Delivery

Left view

1. HDMI 2.0 Port
2. USB 3.2 Gen 2 Type-C port with Thunderbolt 3/Power Delivery/ DisplayPort
3. USB 3.2 Gen 2 Type-C port with Thunderbolt 3/Power Delivery/ DisplayPort
4. SIM card slot
5. microSD card slot
6. Smart card reader (optional)

Bottom view

1. Thermal vent
2. Service Tag label

Modes

NOTE: The modes are applicable only to Latitude 9510 (Convertible).

Tablet mode

Laptop mode

Tent mode

Stand mode

Specifications of Latitude 9510

Dimensions and weight

Table 1. Dimensions and weight

Description	Values
Height:
Front	8.23 mm (0.32 in.)
Rear	13.99 mm (0.55 in.)
Width	340.20 mm (13.39 in.)
Depth	215.80 mm (8.49 in.)
Weight (maximum)	Convertible chassis weight: 1.50 kg (3.30 lb), Laptop weight: 1.40 kg (3.10 lb)

Processors

Table 2. Processors

Description	Values
Processors	10th Generation Intel Core i5-10210U	10th Generation Intel Core i5-10310U	10th Generation Intel® Core™ i7-10510U	10th Generation Intel® Core™ i7-10610U	10th Generation Intel Core i7-10710U	10th Generation Intel Core i7-10810U
Wattage	15 W	15 W	15 W	15 W	15 W	15 W
Core count	4	4	4	4	6	6
Thread count	8	8	8	8	12	12
Speed	1.6 GHz - 3.9 GHz	1.6 GHz - 4.0 GHz	1.6 GHz to 4.0 GHz	1.8 GHz - 4.3 GHz	1.1 GHz - 3.9 GHz	1.1 - 4.0 GHz
Cache	6 MB	6 MB	8 MB	8 MB	12 MB	12 MB
Integrated graphics	Intel UHD Graphics Intel UHD	Graphics	Intel UHD Graphics	Intel UHD Graphics	Intel UHD Graphics	Intel UHD Graphics

Chipset

Table 3. Chipset

Description	Values
Chipset	Intel Q470
Processor	10 th Generation Intel® Core™ i5 / i7
DRAM bus width	64-bits
Flash EPROM	32 MB
PCIe bus	Up to Gen 3.0

Operating system

• Windows 10 Professional (64-bit)
• Windows 10 Home (64-bit)

Memory

Table 4. Memory specifications

Description	Values
Slots	On-board memory
Type	LPDDR3
Speed	2133 MHz
Maximum memory	16 GB
Minimum memory	8 GB
Memory size per slot	8 GB, 16 GB

Ports and connectors

Table 5. Ports and connectors

Ports and connectors
USB	2 USB 3.2 Gen 2 Type-C ports with Thunderbolt 3/Power Delivery/DisplayPort 1 USB 3.2 Gen 1 Type-A port with PowerShare
Audio	1 Combo Mic/Headphone Jack
Video	1 HDMI 2.0 port
Docking port	Supports docking through the Type-C ports
Power adapter port	2 Power adapter USB Type-C ports
Security	1 Wedge shaped lock slot

Table 6. External ports

External
Media-card reader	1 microSD-card 4.0 slot
SIM	1 uSIM slot (WWAN only)

Table 7. Internal ports and connectors

Internal
M.2	1 M.2 2230 PlCe x 4
	NOTE: To learn more about the features of different types of M.2 cards, see the knowledge base article SLN301626.

Storage

Your computer supports the following configuration:
The primary drive of your computer varies with the storage configuration.

Table 8. Storage specifications

Storage type	Interface type	Capacity
M.2 2230, Class 35 SSD	Gen 3 PCIe x4 NVMe	Up to 1 TB
M.2 2230, Opal Self-Encrypting Class 35 SSD	Gen 3 PCIe x4 NVMe	Up to 256 GB

Audio

Table 9. Audio specifications

Description	Values
Controller	Realtek ALC711-CG
Stereo conversion	Supported
Internal interface	SoundWire
External interface	Universal Audio Jack
Speakers	Stereo
Internal speaker amplifier	Realtek ALC1309D
External volume controls	Supports external volume controls
Speaker output: Average	4 W
Peak	5 W
Subwoofer output	Not supported
Microphone	Quad-array microphone

Media-card reader

Table 10. Media-card reader specifications

Description			Values
Type			microSD-card 4.0 slot
Cards supported			Secure Digital (SD) Secure Digital High Capacity (SDHC) Secure Digital Extended Capacity (SDXC)

Keyboard

Table 11. Keyboard specifications

Description			Values
Type			Standard white backlit keyboard
Layout			QWERTY
Number of keys			United States and Canada: 79 keys United Kingdom: 80 keys Japan: 83 keys
Size			X=19.05 mm key pitch Y=18.05 mm key pitch
Shortcut keys			Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. To type the alternate character, press Shift and the desired key. To perform secondary functions, press Fn and the desired key. You can define the primary behavior of the function keys (F1–F12) changing Function Key Behavior in BIOS setup program.

Camera

Table 12. Camera specifications

Description	Values
Number of cameras	One
Type	RGB/IR camera
Location	Front camera
Sensor type	CMOS RGB-Ir Hybrid technology
Resolution Camera
Still image	0.90 megapixel
Video	1280 x 720 (VGA/HD) at 30 fps
Infrared camera
Still image	0.20 megapixel
Video	640 x 360 (VGA/HD) at 15 fps
Diagonal viewing angle
Camera	78 degrees
Infrared camera	78 degrees

Display

Table 13. Display specifications

Description	Values
Type	15-inch Full High Definition (FHD)	15-inch Full High Definition (FHD)-Touch
Panel technology	Wide Viewing Angle (WVA)	Wide Viewing Angle (WVA)
Luminance (typical)	400 nits	400 nits
Dimensions (Active area):
Height	186.30 mm (7.33 in.)	186.30 mm (7.33 in.)
Width	331.20 mm (13.04 in.)	331.20 mm (13.04 in.)
Diagonal	380.00 mm (14.96 in.)	380.00 mm (14.96 in.)
Native resolution	1920 x 1080	1920 x 1080
Megapixels	2.07	2.07
Color gamut	100% (sRGB)	100% (sRGB)
Pixels per inch (PPI)	147	147
Contrast ratio (min)	1200:1	1200:1
Response time (max)	35 ms	35 ms
Refresh rate	60 Hz	60 Hz
Horizontal view angle	80 +/-degrees	80 +/-degrees
Vertical view angle	80 +/-degrees	80 +/-degrees
Pixel pitch	0.17 mm	0.17 mm
Power consumption (maximum)	2.19 W	2.29 W
Anti-reflective vs Anti-smudge	Anti-glare
Touch options	No	Anti-reflective/anti-smudge Yes
Stylus support	No	Yes

Keyboard

Table 14. Keyboard specifications

Description	Values
Type	Standard white backlit keyboard
Layout	QWERTY
Number of keys	United States and Canada: 79 keys United Kingdom: 80 keys Japan: 83 keys
Size	X=19.05 mm key pitch Y=18.05 mm key pitch
Shortcut keys	Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. To type the alternate character, press Shift and the desired key. To perform secondary functions, press Fn and the desired key. You can define the primary behavior of the function keys (F1–F12) changing Function Key Behavior in BIOS setup program.

Fingerprint reader (optional)

Table 15. Fingerprint reader specifications

Description	Values
Sensor technology	Capacitive Windows Hello Certificated Fingerprint solution
Sensor resolution	363 dpi
Sensor area	5.25 mm x 6.9 mm
Sensor pixel size	76 x 100

Touchpad

Table 16. Touchpad specifications

Description	Values
Resolution:
Horizontal	3562
Vertical	2026
Dimensions:
Horizontal	115 mm (4.53 in.)
Vertical	67 mm (2.64 in.)

Touchpad gestures

For more information about touchpad gestures for Windows 10, see the Microsoft knowledge base article 4027871at support.microsoft.com.

Computer environment

Airborne contaminant level: G1 as defined by ISA-S71.04-1985

Table 17. Computer environment

Description	Operating		Storage
Temperature range	0°C to 35°C (32°F to 95°F)		-40°C to 65°C (-40°F to 149°F)
Relative humidity (maximum)	10% to 90% (non-condensing)		0% to 95% (non-condensing)
Vibration (maximum)*	0.66 GRMS		1.30 GRMS
Shock (maximum)	110 G†		160 G†
Altitude (maximum)	-15.2 m to 3048 m (4.64 ft to 5518.4 ft)		-15.2 m to 10668 m (4.64 ft to 19234.4 ft)

* Measured using a random vibration spectrum that simulates user environment.

† Measured using a 2 ms half-sine pulse when the hard drive is in use.

Power adapter

Table 18. Power adapter specifications

Description		Values
Type		65 W USB Type-C		90 W USB Type-C
Diameter (connector)		22 x 66 x 99 mm (0.87 x 2.6 x 3.9 inches)		22 x 66 x 130 mm (0.87 x 2.6 x 5.12 inches)
Input voltage		100 to 240 VAC		100 to 240 VAC
Input frequency		50 Hz to 60 Hz		50 Hz to 60 Hz
Input current (maximum)		1.70 A		1.50 A
Output current (continuous)		3.25 A 3 A 3 A 3 A		4.5 A 3 A3 A3 A
Rated output voltage		20 VDC / 15 VDC / 9 VDC / 5 VDC		20 VDC / 15 VDC / 9 VDC / 5 VDC
Temperature range:
Operating		0°C to 40°C (32°F to 104°F)		0°C to 40°C (32°F to 104°F)
Storage		-40°C to 70°C (-40°F to 158°F)		-40°C to 70°C (-40°F to 158°F)

Battery

Table 19. Battery specifications

Description	Values
Type	4-cell, 52 WHr, ExpressCharge and ExpressCharge Boost	6-cell, 88 WHr, ExpressCharge	4-cell, 52 WHr, LCL
Voltage	7.60 VDC	11.40 VDC	7.60 VDC
Weight (maximum)	0.255 kg (0.57 lb)	0.355 kg (0.80 lb)	0.255 kg (0.57 lb)
Dimensions:
Height	260.00 mm (10.24 in.)	260.00 mm (10.24 in.)	260.00 mm (10.24 in.)
Width	85.80 mm (3.38 in.)	88.80 mm (3.50 in.)	85.80 mm (3.38 in.)
Depth	5.07 mm (0.20 in.)	9.60 mm (0.38 in.)	5.07 mm (0.20 in.)
Temperature range:
Operating	50°C to 60°C (122°F to 140°F) -20°C to 60°C (-4°F to 140°F)	50°C to 60°C (122°F to 140°F) -20°C to 60°C (-4°F to 140°F)	50°C to 60°C (122°F to 140°F) -20°C to 60°C (-4°F to 140°F)
Storage	Varies depending on operating conditions and can significantly reduce under certain power intensive conditions.	Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.	Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.
Operating time	4 hours (when the computer is off)	4 hours (when the computer is off)	4 hours (when the computer is off)
Charging time (approximate)	300 discharge/charge cycles	300 discharge/charge cycles	1000 discharge/charge cycles
Life span (approximate)	Not supported	Not supported	Not supported
Coin-cell battery	Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.	Varies depending on operating conditions and can significantly reduce under certain power intensive conditions.	Varies depending on operating conditions and can significantly reduce under certain power intensive conditions.
Operating time	Express charge: 0°C to 15°C: 4 hrs 16°C to 45°C: 2 hrs 46°C to 50°C: 3 hrs	Express charge: 0°C to 15°C: 4 hrs 16°C to 45°C: 2 hrs 46°C to 50°C: 3 hrs	Express charge: Not supported

Wireless module

Table 20. Wireless module specifications

Model number		Intel® Wi-Fi 6 AX201		Qualcomm Snapdragon SDX-X20 Global Gigabit LTE, eSIM capable
Transfer rate (max)		2400 Gbps		1 Gbps
Frequency Bands supported		2.4 GHz		3.4 GHz
Wireless Standards		Wi-Fi 802.11a/b/g, Wi-Fi 4 (WiFi 802.11n), Wi-Fi 5 (WiFi 802.11ac), Wi-Fi 6 (WiFi 802.11ax)		LTE, WCDMA
Bluetooth		Bluetooth 5.1		Not applicable
Encryption		64-bit/128-bit WEP, AES-CCMP, TKIP		Not applicable

Computer environment

Table 21. Computer environment

Description		Operating		Storage
Temperature range		0°C to 35°C (32°F to 95°F)		-40°C to 65°C (-40°F to 149°F)
Relative humidity		10% to 90% (non-condensing)		0% to 95% (non-condensing)
Vibration (maximum)*		0.66 GRMS		1.30 GRMS
Shock (maximum)		110 G†		160 G†
Altitude (maximum)		-15.2 m to 3048 m (4.64 ft to 5518.4 ft)		-15.2 m to 10668 m (4.64 ft to 19234.4 ft)

* Measured using a random vibration spectrum that simulates user environment.

† Measured using a 2 ms half-sine pulse when the hard drive is in use.

Engineering specifications

Graphics options

Intel UHD' graphics

Table 22. Intel UHD graphics

Features	Specifications
Bus type	Integrated
Memory type	LPDDR3
Memory interface	N/A (unified memory architecture)
Graphics level	i7: GT2 (UHD 620)
Estimated Maximum Power Consumption (TDP)	15 W—included in the CPU power
Maximum color depth	24 bits
Maximum vertical refresh rate	Up to 85 Hz depending on resolution

Hard drives

• 128 GB M.2 2230 PCIe SSD
• 256 GB M.2 2230 PCIe SSD
• 512 GB M.2 2230 PCIe SSD
• 1 TB M.2 2230 PCIe SSD
• 256 GB M.2 2230 PCIe SED SSD

128 GB, Gen 3 PCle x4 NVMe, Class 35 SSD

Table 23. 128 GB, Gen 3 PCle x4 NVMe, Class 35 SSD

Features	Specifications
Capacity (GB)	128 GB
Dimensions (W x D x H)	22 x 30 x 2.38 mm
Interface type and maximum speed	PCIe Gen3 32Gb/s (up to 4 lanes)
MTBF	1.4M hours
Logical blocks	250,069,680
Power source
Power consumption (reference only)	Idle 5mW(PS4), Active 3.5W
Environmental operating conditions (non-condensing)
Temperature range	0°C to 70°C
Relative humidity range	10 to 90%
Op Shock (@2 ms)	1,500G
Environmental non-operating conditions (non-condensing)
Temperature range	-40°C to 70°C
Relative humidity range	5% to 95%

256 GB, Gen 3 PCle x4 NVMe, Self-Encrypting Class 35 SSD

Table 24. 256 GB, Gen 3 PCle x4 NVMe, Self-Encrypting Class 35 SSD

Feature	Specifications
Capacity (GB)	256 GB
Dimensions (W x D x H)	22 x 30 x 2.38 mm
Interface type and maximum speed	PCIe Gen3 32Gb/s (up to 4 lanes)
MTBF	1.4M hours
Logical blocks	500,118,192
Power source
Power consumption (reference only)	Idle 5mW(PS4), Active 3.5 W
Environmental operating conditions (non-condensing)
Temperature range	0°C to 70°C
Relative humidity range	10 to 90%
Op Shock (@2 ms)	1,500G
Environmental non-operating conditions (non-condensing)
Temperature range	-40°C to 70°C
Relative humidity range	5% to 95%

256 GB, Gen 3 PCle x4 NVMe, Class 35 SSD

Feature	Specifications
Capacity (GB)	256 GB
Dimensions (W x D x H)	22 x 30 x 2.38 mm
Interface type and maximum speed	PCIe Gen3 32Gb/s (up to 4 lanes)
MTBF	1.4M hours
Logical block	500, 118, 192
Power source
Power consumption (reference only)	Idle 5mW(PS4), Active 3.5W
Environmental operating conditions (non-condensing)
Temperature range	0°C to 70°C
Relative humidity range	10 to 90%
Op Shock (@2 ms)	1,500G
Environmental non-operating conditions (non-condensing)
Temperature range	-40°C to 70°C
Relative humidity range	5% to 95%

512 GB, Gen 3 PCle x4 NVMe, Class 35 SSD

Table 26. 512 GB, Gen 3 PCle x4 NVMe, Class 35 SSD

Feature	Specifications
Capacity (GB)	512 GB
Dimensions (W x D x H)	22 x 30 x 2.38 mm
Interface type and maximum speed	PCIe Gen3 32Gb/s (up to 4 lanes)
MTBF	1.4M hours
Logical blocks	1,000,215,216
Power source
Power consumption (reference only)	Idle 5mW(PS4), Active 3.5W
Environmental operating conditions (non-condensing)
Temperature range	0°C to 70°C
Relative humidity range	10 to 90%
Op Shock (@2 ms)	1,500G
Environmental non-operating conditions (non-condensing)
Temperature range	-40°C to 70°C
Relative humidity range	5% to 95%

1 TB, Gen 3 PCle x4 NVMe, Class 35 SSD

Table 27. 1 TB, Gen 3 PCle x4 NVMe, Class 35 SSD

Feature	Specifications
Capacity (GB)	1 TB
Dimensions (W x D x H)	22 x 30 x 2.38 mm
Interface type and maximum speed	PCIe Gen3 32Gb/s (up to 4 lanes)
MTBF	1.4M hours
Logical blocks	2,000,409,264
Power source
Power consumption (reference only)	Idle 5mW(PS4), Active 3.5W
Environmental operating conditions (non-condensing)
Temperature range	0°C to 70°C
Relative humidity range	10 to 90%
Op Shock (@2 ms)	1,500G
Environmental non-operating conditions (non-condensing)
Temperature range	-40°C to 70°C
Relative humidity range	5% to 95%

Communications

Wireless LAN options

Intel Wi-Fi 6 AX201 2x2 (Gig+) + Bluetooth 5.1

Table 28. Intel Wi-Fi 6 AX201 2x2 (Gig+) + Bluetooth 5.1 specifications

Feature	Values
Host interface	Wi-Fi - PCIe Bluetooth - USB
Network standard	IEEE 802.11a/b/g/n/ac/ax, 160MHz channel use, MU-MIMO
Wi-Fi alliance certifications	Wi-Fi Certified a/b/g/n/ac with wave 2 features Designed to be Wi-Fi Certified ax (Wi-Fi 6) WMM WMM-PS WPA WPA2 WPS2 Protected Management Frames Wi-Fi Direct (For Windows only)
Operating frequency bands	2.4 Ghz 5 Ghz
Data rate	2.4 GHz 40M - Up to 574 Mbps 5 GHz 80M - Up to 1.2 Gbps 5 GHz 160M - Up to 2.4 Gbps
Power consumption	Optimized power modes (sleep states) reduce power consumption during periods of inactivity
Authentication	WPA and WPA2 Personal and Enterprise WPA3 (pending OS support)
Authentication protocols	802.1X EAP-TLS EAP-TTLS/MSCHAPv2 PEAPv0 -MSCHAPv2 (EAP-SIM, EAP-AKA, EAP-AKA)
Encryption	64-bit and 128-bit WEP TKIP 128-bit AES-CCMP 256-bit AES-GCMP
Product safety	UL C-UL CB(IEC60950-1)
Management capabilities alerting	Support for Intel AMT
Government compliance	FIPS 140-2 FISMA
Client utility	Intel PRO/Set Wireless Software v21 and later
Antenna diversity	Supported
Radio On/Off	Supported
Roaming	Support seamless roaming between access points
Wake On wireless	Supported
Wireless display	Native Miracast support by Windows 10
Wireless PAN standard	Dual Mode Bluetooth 5.1, BLE
Bluetooth version	Bluetooth 5.1
Bluetooth data rates	Up to 3 Mbps
Bluetooth operating frequency bands	2.4 GHz
Bluetooth profiles supported	Support for Microsoft Inbox Bluetooth profiles in Windows 10
Bluetooth data encryption	128-bit encryption
Bluetooth output power	Power class 1
Temperature	Operating temperature 0°C to + 50°C (Full performance at shield temperatures up to 80°C) Storage temperature of -40°C to +70°C
Humidity	Up to 90% RH non-condensing (at temperatures of 25°C to 35°C)

Monitors

Table 29. Supported monitors

Monitors

Dell UltraSharp 27 4K USB-C Monitor - U2720Q

Cables, dongles, and adapters

Table 30. Supported cables, dongles, and adapters

Supported adapter

Dell USB-C Mobile Adapter - DA300

Carrying case

Table 31. Carrying cases

Supported carrying cases

Dell Premier Backpack 15 - PE1520P Dell Premier Briefcase 15 - PE1520C Dell Premier Sleeve 15 Dell Premium Active Pen - PN579X

Docks and port replicators

Table 32. Docks and port replicators

Supported docks and port replicators

Dell Thunderbolt Dock - WD19TB Dell Dock - WD19

Keyboard shortcuts

Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. The symbol that is shown on the lower part of the key sees the character that is typed out when the key is pressed. If you press shift and the key, the symbol that is shown on the upper part of the key is typed out. For example, if you press 2, is typed out; if you press Shift + 2, is typed out.

The primary behavior is the media keys and the secondary behavior is the F1-F12 keys.

Function (Fn) lock only switches between primary and secondary behavior on F1-F12 keys only.

F9 will have the same function as F9 behavior as there is no secondary behavior.

NOTE: You can also define the primary behavior of the function keys (F1–F12) by changing Function Key Behavior in BIOS setup program.

Table 33. List of keyboard shortcuts

Table 34. Secondary behavior

Function key	Behavior
Fn + Esc	Toggle between power and battery-status light/hard-drive activity light
Fn + F1	F1 behavior
Fn + F2	F2 behavior
Fn + F3	F3 behavior
Fn + F4	F4 behavior
Fn + F5	F5 behavior
Fn + F6	F6 behavior
Fn + F7	F7 behavior
Fn + F8	F8 behavior
Fn + F9	F9 behavior
Fn + F10	F10 behavior
Fn + F11	F11 behavior
Fn + F12	F12 behavior
Fn + Insert	Insert
Fn + Delete	Delete

Getting help

Contacting Dell

NOTE: If you do not have an active Internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog.

Dell provides several online and telephone-based support and service options. Availability varies by country and product, and some services may not be available in your area. To contact Dell for sales, technical support, or customer service issues:

1. Go to Dell.com/support.
2. Select your support category.
3. Verify your country or region in the Choose a Country/Region drop-down list at the bottom of the page.
4. Select the appropriate service or support link based on your need.

Notes, cautions, and warnings

NOTE:
A NOTE indicates important information that helps you make better use of your product.

A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

A WARNING indicates a potential for property damage, personal injury, or death.

Documents / Resources

References

• Touch gestures for Windows - Microsoft Support
• Microsoft Support

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Dell Latitude 9510, P94F, P95F Manual
