PCIe Heatsink Fan Assembly

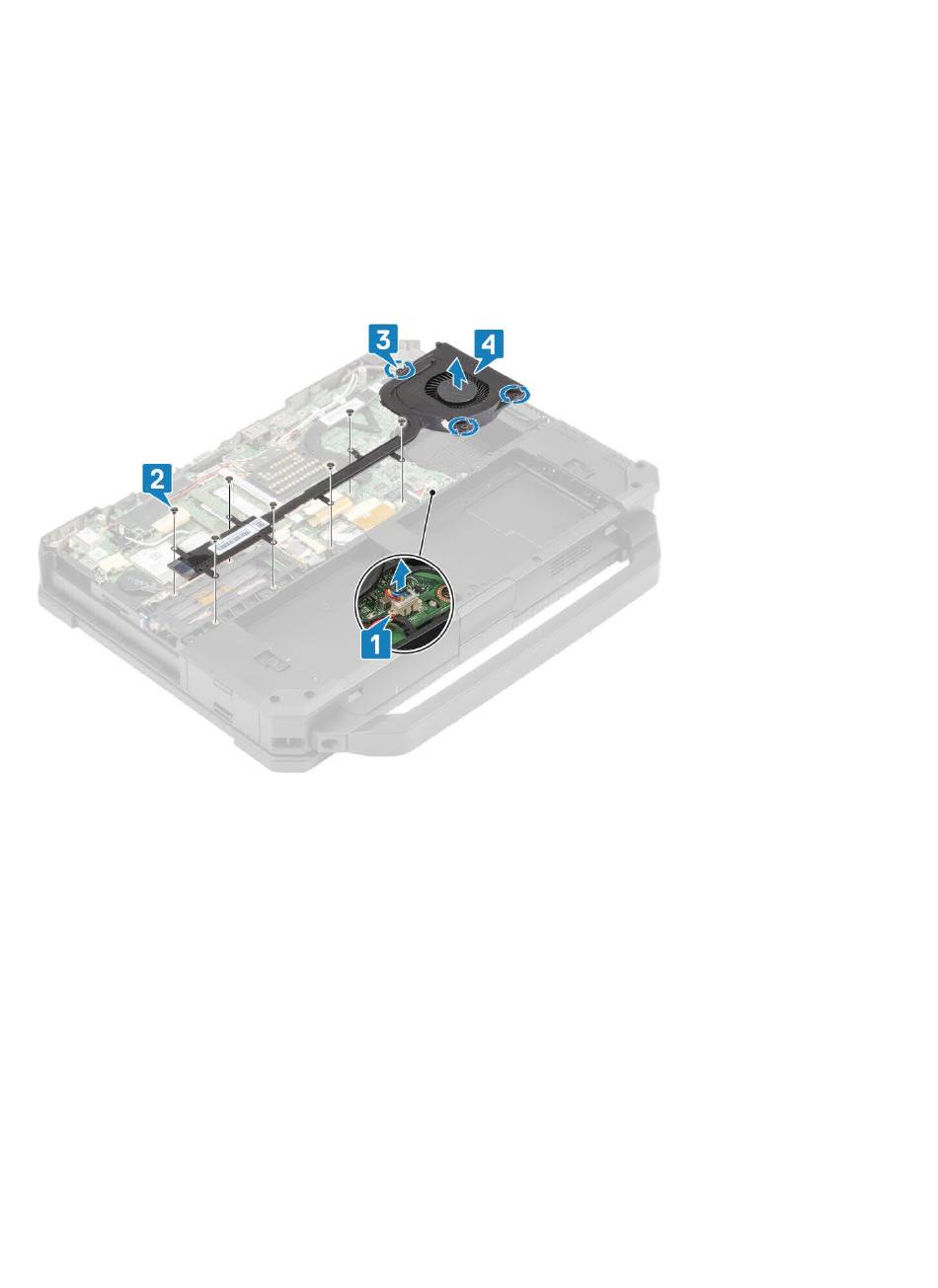

Removing the PCIe Heatsink fan assembly
1
Follow the procedure in
2
Remove the:
a
Batteries
b
Bottom chassis cover
3
Disconnect the fan cable [1] from the system board.
4
Remove the seven 'M2.5*5' screws [2] from the heat sink pipe and loosen the three captive screws from fan case [3].
5
Remove the PCIe heatsink fan assembly from the computer [4].
Installing the PCIe heatsink fan assembly
1
Install the PCIe heatsink fan assembly [1] in the chassis and tighten the three captive screws [2] on the fan case.
2
Install the seven 'M2.5' screws [3] on the heat sink pipe and connect the fan cable [4].
126
Removing and installing components
Before working inside your
computer.
