Summary of Contents for Datavideo GO KMU-100 STUDIO

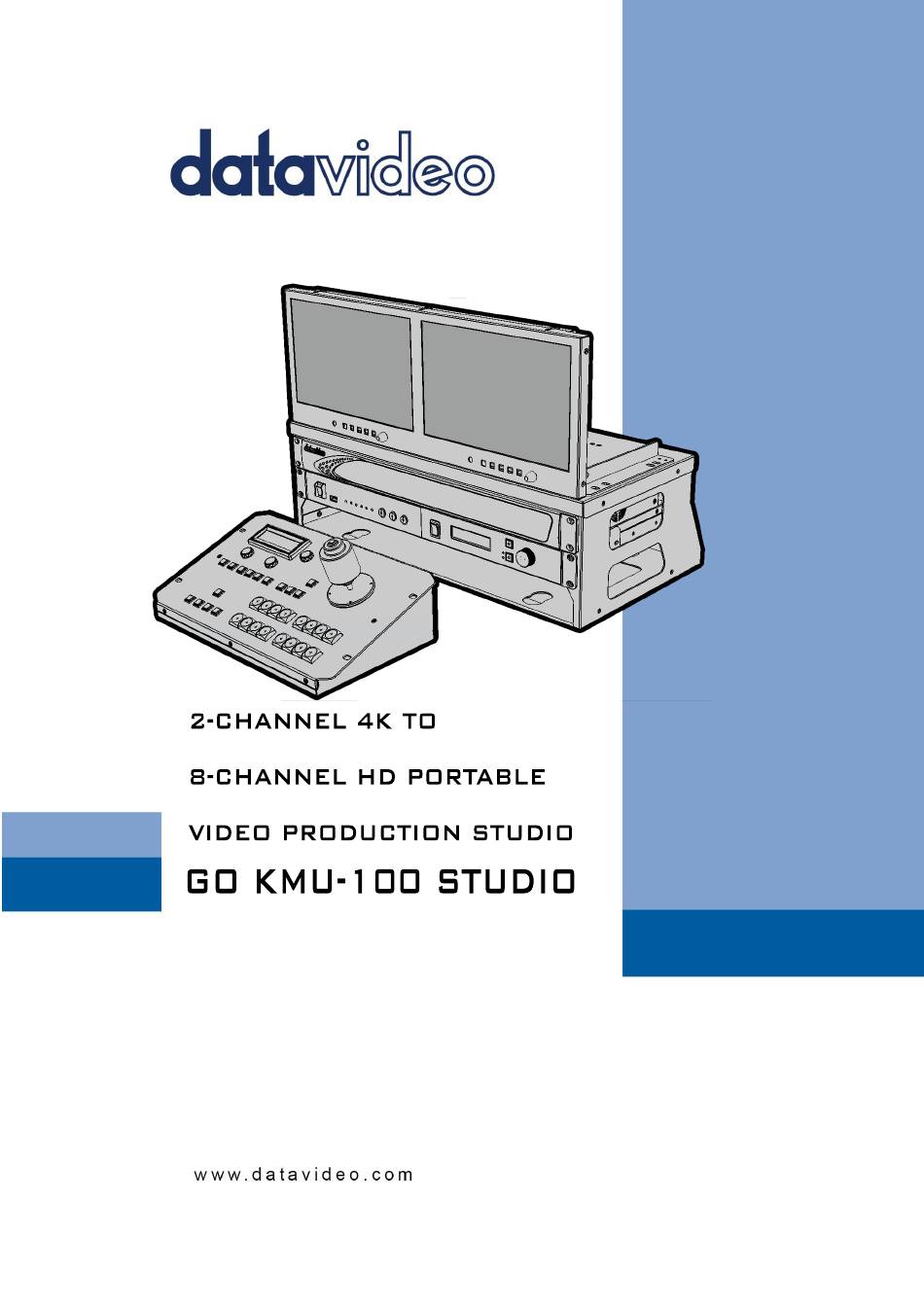

- Page 1 Instruction Manual...
-
Page 2: Table Of Contents
SERVICE AND SUPPORT..............................16 Disclaimer of Product and Services The information offered in this instruction manual is intended as a guide only. At all times, Datavideo Technologies will try to give correct, complete and suitable information. However, Datavideo Technologies cannot exclude that some information in this manual, from time to time, may not be correct or may be incomplete. -
Page 3: Fcc Compliance Statement
The GO KMU-100 Studio is HEAVY, the weigh is about 14kg. At least two people are required to move this unit. It needs two people to move the GO KMU-100 Studio out of the carton. If the system is packed in the 19”... -
Page 4: Warranty
Drive, Solid State Drive, SD Card, USB Thumb Drive, Lighting, Camera module, PCIe Card are covered for 1 year. The three-year warranty must be registered on Datavideo's official website or with your local Datavideo office or one of its authorized distributors within 30 days of purchase. -
Page 5: Introduction
Introduction The Datavideo GO KMU-100 Studio is a small studio video production system. The system integrates virtual camera, video switching and audio delaying for synchronization, monitoring, encoding and streaming functionalities in one box. With two 4K cameras, the KMU-100 plus can create up to 8 different virtual cameras for built-in video switching. -
Page 6: Go Kmu-100 Studio
GO KMU-100 Studio Front Panel Foldable 4RU rack mount dual TLM-102: monitor providing connections for SDI and HDMI videos KMU-100 Plus: 2 Channel 4K multi- camera processor for converting up to 2 4K UHD input signals to up to 8 HD output signals. -
Page 7: Installation
Transport & Placement The GO KMU-100 Studio is heavy and the weight is about 14kg – Do not attempt to lift or move it on your own. It’s recommended to have at least two people to move the GO KMU-100 Studio out of the carton. -
Page 8: How To Connect Internal Cables
How to Connect Internal Cables Cable requirements: Cable No. 1-5: DC Plug Cable built into the RMK-6 Cable No. 6: HDMI Cable ( 50 CM) Cable No. 7: BNC 180 Degree to 180 Degree Cable (50 CM) ... - Page 9 2. Please connect the Cable No.7 (BNC 180 Degree Cable) from the SDI Output 8 on the rear panel of the KMU-100 to the SDI IN2 on the rear panel of the TLM-102. 3. Please connect the Cable No. 8 (HDMI Cable) from the HDMI Output A on the rear panel of the KMU-100 to the HDMI Input on the rear panel of the NVS-25.
- Page 10 4. Please connect the Cable No. 9 & Cable 10 (RCA Cables) from the RCA OUT on the rear panel of the AD-100M to the RCA IN on the rear panel of the NVS-25. 5. Please connect the Cable No. 11 (Ethernet Cable) from the LAN interface on the rear panel of the NVS-25 to the LAN port on the inner side of the real panel of the RMK-6.
- Page 11 7. Please connect Cable No. 12 (RS-422 to RJ-45 adapter cable) from the RS-422 interface on the rear panel of the KMU-100 to the RJ-45 interface on the rear panel of the RMC-185. 8. First locate the DC jack on the RMK-6 and on the inner side of the DC jack, you should find five DC plug cables attached.
-
Page 12: Powering On
Please ensure the RMK-6 is fed with a DC power supply before attempting to switch on the GO KMU- 100 Studio. If a product within the GO KMU-100 Studio fails to start after the power switch on the rear of the RMK-6 is switched on please locate the on/off switch for that product which has not yet started.。... -
Page 13: Dimensions
Dimensions... - Page 14 All dimensions in mm.
-
Page 15: Weights
Weights The GO KMU-100 Studio is heavy and the weight is about 14kg. If you want to move the GO KMU- 100 Studio from the carton, it needs two people. If the GO KMU-100 Studio is packed in the 19”... -
Page 16: Service And Support
Feb.-18.2018 Version E2...
