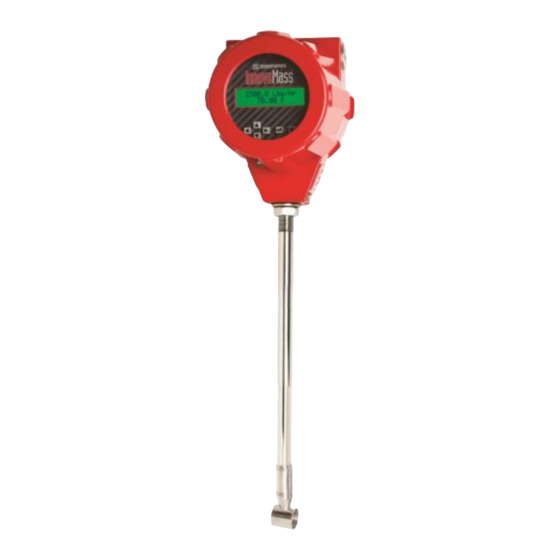

Sierra InnovaMass i Series Preliminary Instruction Manual

Foundation fieldbus volumetric & multivariable mass vortex flow meter
Hide thumbs Also See for InnovaMass i Series:
Table of Contents

Advertisement

Quick Links

Download this manual
InnovaMass
240i/241i
®
Foundation Fieldbus
Preliminary Instruction Manual
Foundation Fieldbus Specification for Models: 240i and 241i
Volumetric & Multivariable Mass Vortex Flow Meter
Part Number: IM240i/241i-FF
V1 December 2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the InnovaMass i Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sierra InnovaMass i Series

Summary of Contents for Sierra InnovaMass i Series

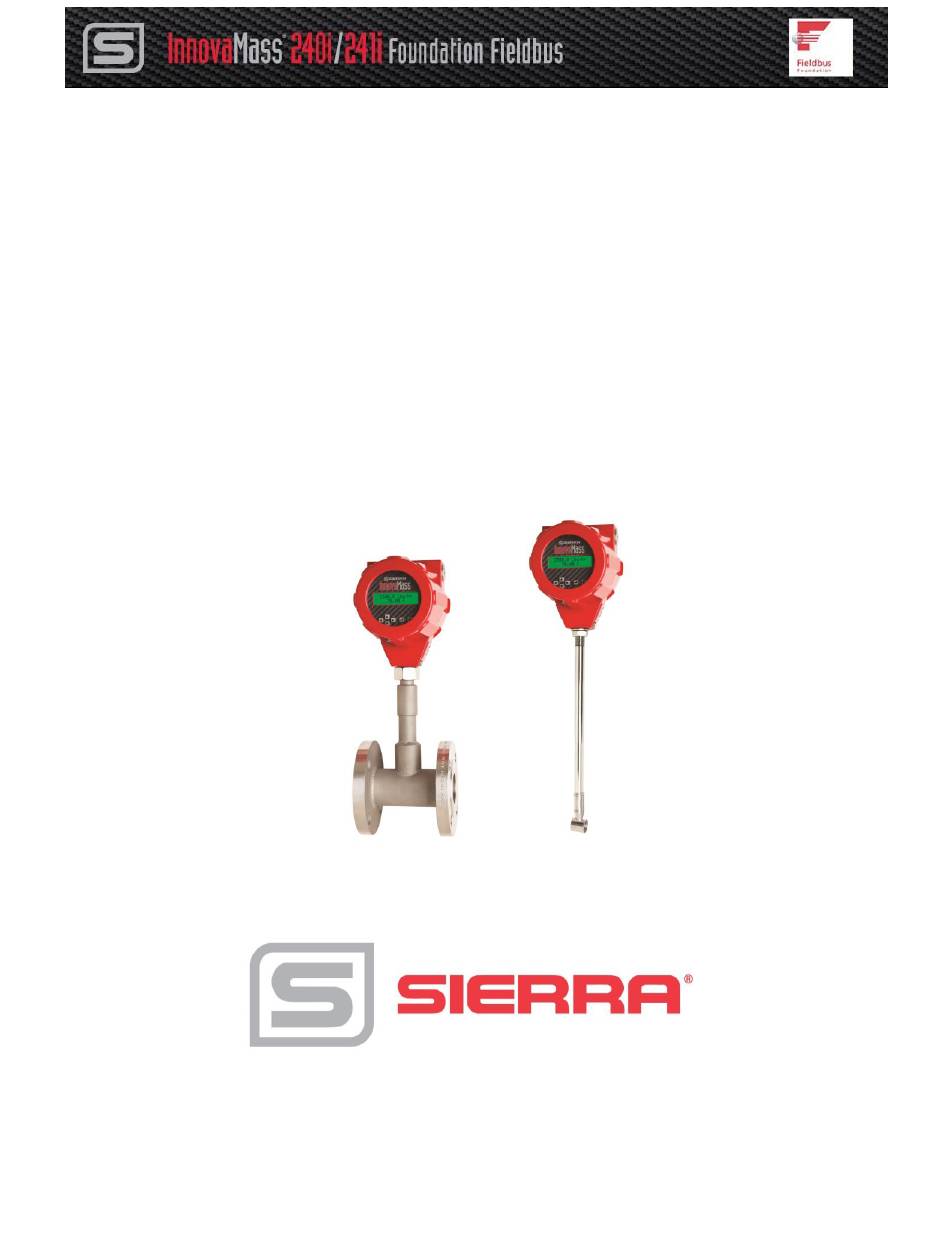

  • Page 1 InnovaMass 240i/241i ® Foundation Fieldbus Preliminary Instruction Manual Foundation Fieldbus Specification for Models: 240i and 241i Volumetric & Multivariable Mass Vortex Flow Meter Part Number: IM240i/241i-FF V1 December 2015...
  • Page 2 IMPORTANT CUSTOMER NOTICE- OXYGEN SERVICE Sierra Instruments, Inc. is not liable for any damage or personal injury, whatsoever, resulting from the use of Sierra Instruments standard mass flow meters for oxygen gas. You are responsible for determining if this mass flow meter is appropriate for your oxygen application. You are responsible for cleaning the mass flow meter to the degree required for your oxygen flow application.
  • Page 3 Warnings and Cautions Warning! Agency approval for hazardous location installations varies between flow meter models. Consult the flow meter nameplate for specific flow meter approvals before any hazardous location installation. Warning! Hot tapping must be performed by a trained professional. U.S. regulations often require a hot tap permit. The manufacturer of the hot tap equipment and/or the contractor performing the hot tap is responsible for providing proof of such a permit.
  • Page 4 Receipt of System Components When receiving a Sierra mass flow meter, carefully check the outside packing carton for damage incurred in shipment. If the carton is damaged, notify the local carrier and submit a report to the factory or distributor. Remove the packing slip and check that all ordered components are present.

  • Page 5: Table Of Contents

    Table of Contents Table of Contents ............................ 5 Chapter 1: Introduction .......................... 6 Chapter 2 – Connecting the 240i/241iSeries to Your FF-BUS Network ..........7 Chapter 3 - Definitions ..........................8 Chapter 4 – Foundation Fieldbus Interface Configurations ..............9 AI/AO Blocks: ............................

  • Page 6: Chapter 1: Introduction

    Chapter 1: Introduction This manual will explain how to add a Sierra flow meter equipped with Foundation Fieldbus to your network. The Foundation Fieldbus interface allows access to all relevant data available in the flow meter. This manual is intended to document the configuration of the Sierra Instruments’ InnovaMass 240i and 241i vortex mass flow meter with the Foundation Fieldbus Communication Interface to your network.

  • Page 7: Chapter 2 - Connecting The 240I/241Iseries To Your Ff-Bus Network

    Chapter 2 – Connecting the InnovaMass 240i/241i to your FF-BUS Network The InnovaMass 240i/241imeters use 24VDC (+/-10%) at 1.1 Amp. Due to the current needed, the meter cannot be powered from the H1 network. The separate 24VDC (+/-10%) power is connected to terminals 1 and 2. The Foundation Fieldbus H1 network connections are labeled as FF-1(terminal 13 and FF-2 (terminal 14).

  • Page 8: Chapter 3 - Definitions

    (input), it is still referred to as an AO Block. The 240i/241iFF-BUS interface has one, labeled Modbus: Modbus is another digital communication protocol and is only relevant here because the Sierra FF-BUS interface uses Modbus as an intermediary between the meter and the FF-BUS interface. For special configuration, the user will only need a rudimentary knowledge of Modbus.

  • Page 9: Chapter 4 - Foundation Fieldbus Interface Configurations

    Chapter 4 – Foundation Fieldbus configuration The 240i/241iFF-BUS interfaces uses a Modbus to FF-BUS translator board inside the flow meter. This allows the user to configure variables accessible to our Modbus interface. For the most part, the Modbus to FF-BUS translation is invisible to the end user unless they want to reconfigure the Transducer Block (TB) to access other Modbus variables.
  • Page 10 Totalizer units Char 3-4 Totalizer unit - index Temp. units ASCII Char 1-2 Temperature unit - index Pressure units ASCII Char 1-2 Pressure units ASCII Char 3-4 Pressure units ASCII Char 5-6 Pressure units ASCII Char 6-7 Pressure unit - index Alarm active Alarm mode Table 2: Factory Static MODBUS Registers...

  • Page 11: Chapter 5 - Configuring The Ff-Bus Using Ni-Fbus Configurator

    Chapter 5 – Re-configuring the FF-BUS Using NI- FBUS Configurator The National Instruments F-BUS Configurator software is widely used for testing and configuration of FF-BUS devices. Consult your NI-FBUS Configurator manual for more information on this NI software (included in NI-FBUS help on the software). Before starting the NI-FBUS Configurator, you must import the DD using the NI-FBUS Interface Configurator Utility.
  • Page 12 Figure 3: Screen before Writing Changes After completing the configuration, you should be able to read the variables being returned from your flow meter on the same SIERRA_TB block on the “Others” tab. Flow (PV_1) and Pressure (PV_2), etc. are shown below (See Figure 4). If you scroll down futher, you will also see the static MODBUS_REGS_ values being read from the meter (See Figure 5).
  • Page 13 Current Flow Rate Current Temperature Current Pressure Accumulated Total Flow Flow Units Temperature Units Pressure Units Total Flow Units Figure 4 Screen Showing PV1,2,3,4 & Units From Meter...
  • Page 14 Alarm Status (ox0=off) Gas Name in ASCII, ox41,72,=Ar Gas Name in ASCII, ox67,6F =go Gas Name in ASCII, ox6E,20 =n The rest of the ASCII characters ox20 = (space) Gas Index 1=Argon Flow Units in ASCII ox53,43,46,5D=SCFM Flow Index 1=SCFM Fig.

  • Page 15: Modbus_Com_Setup

    Figure 6: TB Block Engineering Unit Setup MODBUS_COM_SETUP The Modbus com settings are needed for the communication connection between the Modbus and the FF-BUS boards inside the meter. The Modbus Instrument Address must always be set to 1. The MODBUS _COM_SETUP must always set as shown below: BaudRate: 9600 Baud Stop_Bits: 1 Parity: None...

  • Page 16: Chapter 6 - Available Modbus Registers

    Chapter 6 – Available Modbus Registers Although most users will be satisfied using the default configuration, other Modbus registers can be configured for Foundation Fieldbus access. Below (Table 3) is a list of all available Modbus registers. These would need to be configured in the transducer block. Register Description Read/...
  • Page 17 Adjust DAC for pressure – 20mA 16-bit integer Temperature 4mA value – low word 32 bits real Temperature 4mA value – high word Temperature 20mA value – low word 32 bits real Temperature 20mA value – high word Pressure 4mA value – low word 32 bits real Pressure 4mA value –...
  • Page 18 Alarm active 16 bits ASCII 4 Characters total Alarm mode 16 bits ASCII 6 Characters total Serial number 16 bits ASCII 8 Characters total Firmware version 16 bits ASCII 8 Characters total Calibration date 16 bits ASCII 10 Characters total PCA version 16 bits ASCII 6 Characters total...

  • Page 19: Chapter 7 - Modbus Registers Explained

    Chapter 7 – Modbus Registers Explained The Modbus registers can be divided into two groups. The first group (00 - 08) represents the dynamic data used in AI1,2,3, and 4. The second group (09 – 130) contains the settings in the flow meter.
  • Page 20 22: Flow Unit Index This 16-bit integer value shows which flow unit is selected on the flow meter. The value can range between 0 and 49: Mass Flow Units: 0 - SCFS 23 - NCFD 51 - NLPM 109 - Lton/yr 1 - SCFM 24 - NCFY 52 - NLPH...
  • Page 21 Warning! The totalizer only works when Flow units are chosen, it will not work when if Velocity units are selected. 23-24: User Full Scale Registers 23-24 is the “4-20mA Flow Out” full scale value. Changing this only affects the 4- 20 mA flow output and will not affect the Modbus data.
  • Page 22 38-39: Standard Pressure Value shows the standard pressure. 32-bit real data type. 40: Standard Pressure Index This 16-bit integer value shows which pressure unit is selected as the standard pressure:  0 – PSIA  1 – PSIG  2 – Bar A ...
  • Page 23 Caution! Registers 47 to 59 only affect the three 4-20mA outputs on the meter, and have no effect on the Modbus or FF-BUS data. 47: Flow - 4mA Tuning This 16-bit integer is the DAC value that represents 4 mA for the flow output 48: Flow - 20mA Tuning This 16-bit integer is the DAC value that represents 20 mA for the flow output 49: Temperature - 4mA Tuning...
  • Page 24 Caution! Only one alarm can be active when the flow meter is online. This is the meter internal Alarm. FF-BUS alarms will not affect this alarm. 62: Alarm Mode Value indicates the mode of the currently active alarm (flow, temperature, pressure or totalizer): This is a read/write 16-bit integer value.
  • Page 25 81: Pipe Roughness This 16-bit integer value indicates the pipe material:  0 – PVC  1 – Glass  2 – Stainless steel-smooth  3 – Stainless steel -normal  4 – Stainless steel -rough  5 – Carbon steel -smooth ...
  • Page 26 89: Totalizer Reset Write any 16-bit integer value to reset the totalizer. 90: Password This 16-bit register shows the currently active password as a integer. Note: the password is only used to control access to the display module and is not used during FF-BUS communication.
  • Page 27  Psia  Psig  Bar A  Bar G  KPa A  KPa G  Kg/CM2 A  Kg/CM2 G  In H20 A  In H20 G  MM H20 A  MM H20 G 101-102: Pipe Diameter Units This 2 character ASCII string shows the pipe diameter units: ...
  • Page 28 110-111: Alarm Active Description This 4 character ASCII string shows the active alarm:   Flow  Pressure  Temperature  Totalizer 112-114: Alarm Mode Description This 6 character ASCII string shows the alarm mode:   High  Window 115-118: Serial Number This 8-character ASCII string shows the serial number of the unit.

  • Page 29: Chapter 8 - Communication Diagnostic Leds

    Chapter 8 – Communication Diagnostic LEDS Communication Diagnostic LEDS The photo below is taken from the Display side of the enclosure. If the FF-BUS in the meter is working: LED 1 will be green with a slight blink off after initialization. This Indicates the 240i is talking to the Modbus board.
