Seastar Solutions BayStar Plus Installation Instructions

Mounting the Helm
rilling the Hole
WARNING

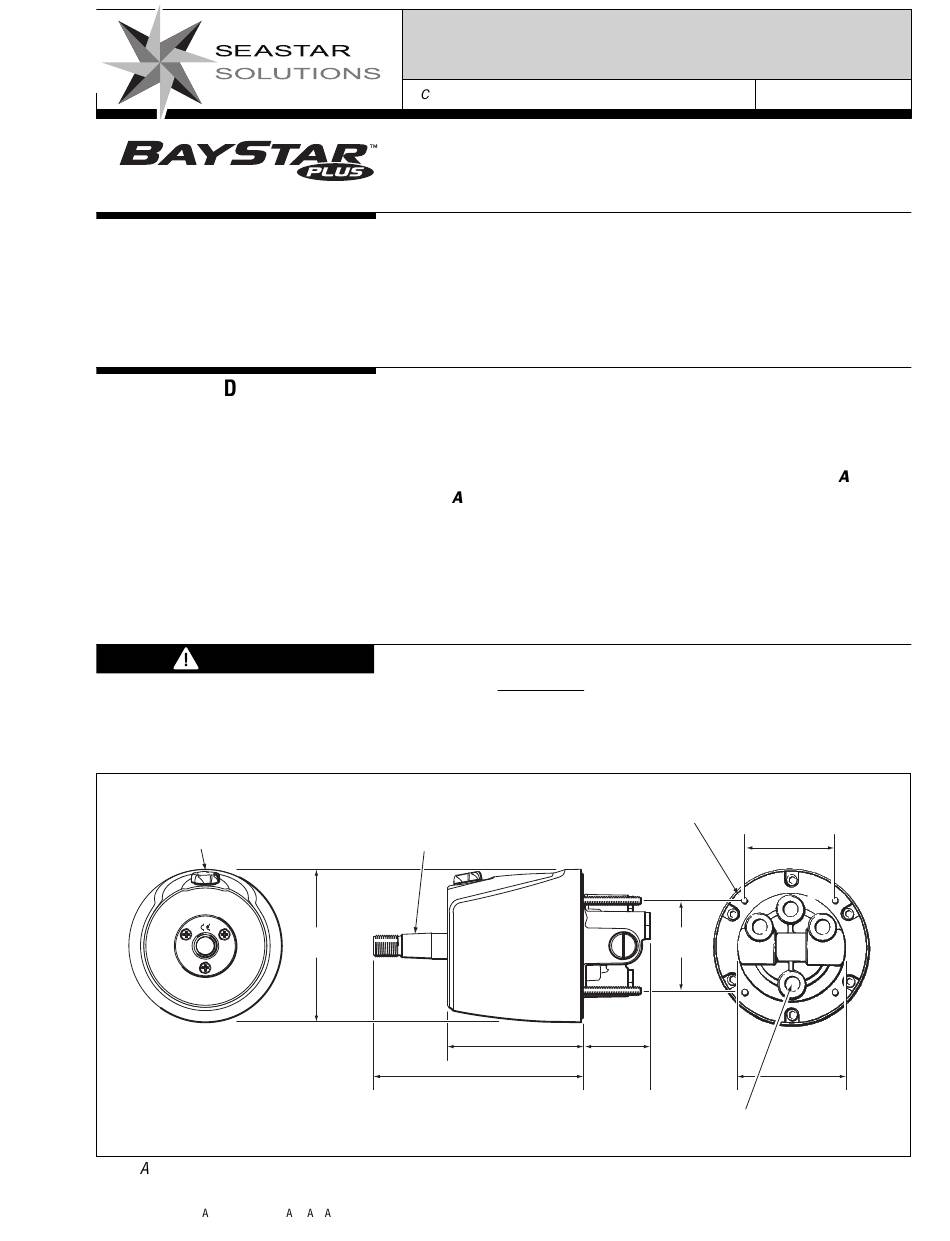

FILLER PORT
Figure .
© 2003 Marine Canada cquisition Inc. DB SE ST R SOLUTIONS 3831 No. 6 Road, Richmond, B.C. Canada V6V 1P6
INSTALLATION INSTRUCTIONS
opy Part# 764607, Rev. E, 08/2013
HELM PUMP # HH4514
Determine desired mounting position of the BayStar Plus Helm
pump. Ensure that the steering wheel will not interfere with any
other functional equipment. Check for adequate space behind
the dash. The BayStar Plus Helm Pump can be installed with the
shaft in the horizontal, vertical or any angle in between. The filler
plug must always be in the uppermost position.
Using the mounting plate on page 2, use the following steps
tomake an accurate and clean cut into the dash.
1. Tape the template to the dash and use a center punch for
locating the holes on dash, or photocopy if required to use as
a drilling template. If a photocopy is required check LL
ME SUREMENTS as per the template to ensure that the
photocopied template is true and correct.
2. Before drilling the holes, check that the helm location will
allow unrestricted movement of the steering wheel.
3. Drill the 3" diameter center hole and the four 5/16" diameter
mounting holes, positioned as shown.
Cleaning fluids containing ammonia, acids or any other corrosive
ingredients MUST NOT be used for cleaning any part of this
Hydraulic Steering System. Failure to comply will cause serious
damage to the steering system, resulting in possible loss of
steering, causing property damage, personal injury and/or death.
3/4" STANDARD TAPER
4-7/16"
(113 mm)
6-1/16" (155 mm)
1/4" NC STUDS(4)
2-5/8"
(67 mm)
3-15/16" 1-15/16"
(100 mm) (50 mm)
1/4" NPT PORTS (4)
