SMART-PULP
Ø90
70
80
*) Plate thickness 4 mm
Figure 1.1.3d

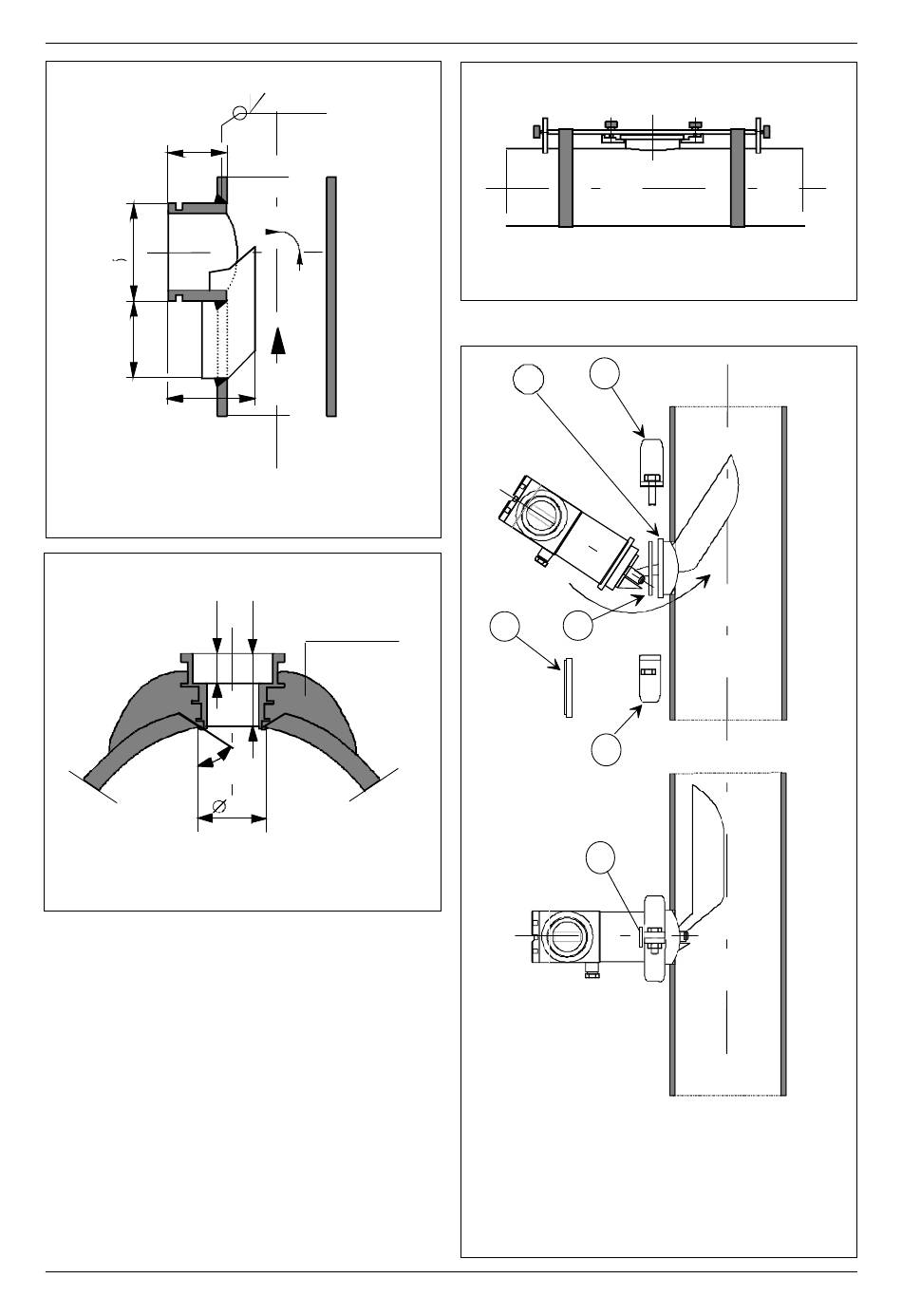

Installation of SMART-PULP HL in digester blow line
26
O
45
Figure 1.1.3e Installation for SMART-PULP JL
Installing the transmitter
Place PTFE gasket in the groove on the
transmitter's coupling flange (Fig. 1.1.3g). Attach the
transmitter to the process coupling with mounting
clamp. Before tightening the screws, ensure that the
transmitter's sensor blade is parallel to the direction
of flow
. Use a ruler placed against the bottom
(±1
O
)
of the aligning slot to align the sensor. Apply 25 N
torque to tighten the screws.
Note! When required, the process coupling can be
shut with a blind flange.
Smart Consistency Transmitter
welding
O
90
±0.5
*)
FLOW
65
Lamination
50
Figure 1.1.3f Process coupling welding guide
3
3
1
1
4
4
2
2
3
3
5
1. Process coupling
2. Gasket
3. Mounting clamp
4. Plug
5. Aligning slot
Figure 1.1.3g Mounting parts for SMART-PULP
8
BCs160VA
Nov. 15, 1997
