- Page 1 Operating Manual 45-OM196-1 English A brand of www.pregiseu.com 45-OM196-1...
-
Page 2: Table Of Contents
Contents Introduction ........................3 General Safety ........................4 Safety Instructions ....................5 Understanding the Controls ..................6 Foot Pedal ......................7 Head Assembly Controls ..................8 Length Setting ....................... 9 Speed Setting ......................9 Operation ........................10 Operating Modes ....................10 Manual Mode .................. -
Page 3: Introduction

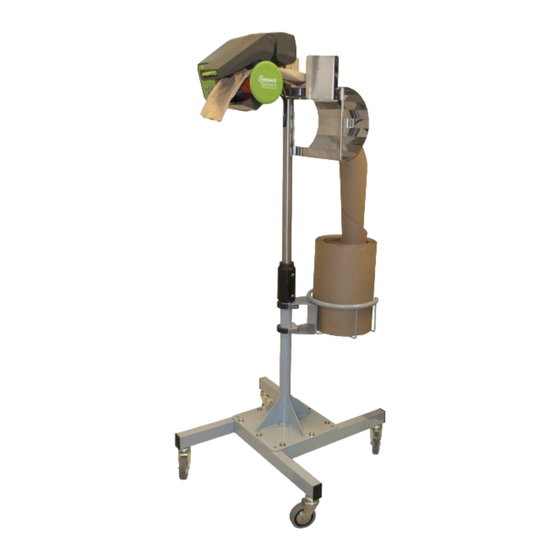

Introduction The Pregis Quantum XT machine dispenses recycled paper void-fill material both on demand and in predetermined lengths. The ability to distribute paper void-fill material on demand saves storage space and reduces packaging material waste. Paper void-fill material is available in 52gsm and 70gsm rolls. The lengths of these rolls are 660m and 400m respectively. -
Page 4: General Safety
Please read and understand the manual including all of the dangers, warnings, and cautionary statements. If after reading the manual you have any questions, contact your supervisor or your Pregis service technician to get answers before operating the machine. -
Page 5: Safety Instructions
3. Never damage or remove factory installed safety stickers. If a safety sticker ever becomes lost, damaged, or illegible, report this condition to a supervisor and obtain a replacement sticker from Pregis. 4. Keep the work area clean and uncluttered. Walking surfaces should always be free of packing material and debris to prevent a slipping or tripping hazard. -
Page 6: Understanding The Controls
Understanding the Controls The Power Switch for the Pregis Quantum XT is used to turn the electrical power “ON” or “OFF” and is located on the right side of the Head Assembly, next to the Power Inlet. Head Assembly Power Inlet Power Switch* *(Power Switch: “I”... -
Page 7: Foot Pedal
Foot Pedal: 6.3mm Jack Foot Pedal Foot Pedal Socket 6.3mm Foot Pedal Jack is inserted into Foot Pedal Socket on the back of the machine When operating the Quantum XT, the most commonly used component is the Foot Pedal. Its functions include: ... -
Page 8: Head Assembly Controls
Head Assembly Controls: Rotate Head Assembly to adjust position Pull to release Paper Deflector Head Assembly can be extended by pushing Extension Switch to the right Extension Switch Length Adjustment Buttons Operating Mode Indicator (LED) Speed Adjustment Buttons Operating Mode Control Press to change between the three modes Speed Setting... -
Page 9: Length Setting
Length Setting: There are ten preset length settings. Pressing the length adjustment buttons (Add/Subtract) will adjust the length accordingly. The length setting is only available when the machine is in Manual Feed-to-Length Mode or Auto Feed-to-Length Mode. With the length set to “1”... -
Page 10: Operation
Operation 1. DO NOT attempt to disable any safety feature. 2. DO NOT place any body part or foreign object into the drive. 3. DO NOT operate the machine if any part of your body becomes fatigued. 4. DO NOT operate the machine if you are under the influence of alcohol, drugs or medications that can make you less alert or affect your judgment. -
Page 11: Manual Feed-To-Length Mode (Ftl)
Manual Feed-to-Length Mode (FTL): This setting allows the operator to dispense a preset length of material by activating the foot pedal briefly (i.e. “tapping” the foot pedal). Once the foot pedal is “tapped” the machine will dispense a preset length of material. The operator must repeat this process to receive additional, preset lengths of material. -
Page 12: Auto Feed-To-Length Mode (A-Ftl)
Auto Feed-to-Length Mode (A-FTL): This setting allows the operator to dispense a preset length of material. Once the Powered Tear Assist feature is activated (see Powered Tear Assist section) the machine will automatically dispense another preset length of material (same as previous). This pro- cess will continue as long as the machine is in A-FTL mode. -
Page 13: Powered Tear Assist (Pta)
Powered Tear Assist (PTA): This feature was designed to reduce the amount of force required to tear the packaging material. Once the material has been dispensed, the Powered Tear Assist feature becomes active. To use this feature, simply pull the void-fill material against the Tear Assist Assembly in a downward motion as shown below. -
Page 14: Loading Procedure
Loading Procedure: Step 1: Place a roll of Quantum XT paper into the Roll Cradle. Step 2: Pull out the paper from the centre of the roll. Roll Cradle Material Inlet Upper Roller Assembly Step 3: Lift the Upper Roller Assembly. Step 4: Pull the paper over the Paper Guide, through the Material... -
Page 15: Maintenance
Quantum XT operating correctly and minimize any downtime on your packaging line. If there are any questions regarding the maintenance of the Quantum XT, please contact your local Pregis Service Technician for assistance. -
Page 16: Troubleshooting
Machine is powered on but will not run. Cause: Power lead/foot pedal cable not connected properly. Solution: Verify cable connections. Upper roller assembly keeps “popping up” while Problem: running material. Cause: Magnet block assembly not properly adjusted. Solution: Contact Pregis Service Technician. A brand of www.pregiseu.com 45-OM196-1... -
Page 17: Specifications
Specifications Total height of machine on standard frame*: 1525 mm (min.) 1980 mm (max.) *Multiple stand options available Mass (Machine): 9.4kg Mass (Standard Frame): 23.5kg Size: See dimensions above Supply: 120/230V AC, 50/60 Hz Max Power: 460W Production Speed: Adjustable up to 1.8m/s Year of Manufacture: 2018 Sound Pressure Level at Operator Station does exceed 70 dB(A)
