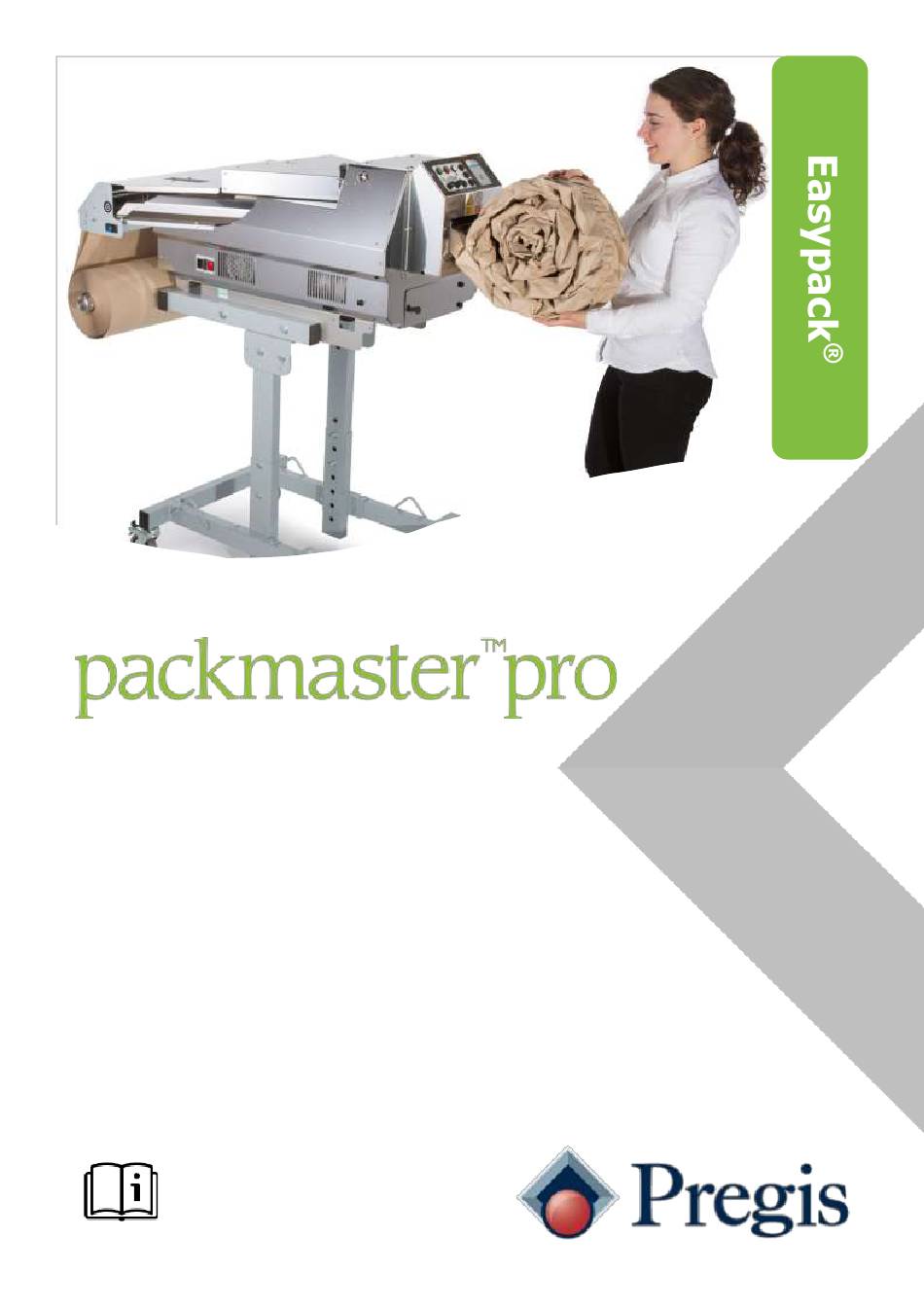

- Page 1 Model 383 Operating Manual (EN) 38-OM225-1 English...
-
Page 2: Table Of Contents
Contents Safety Information Description and Purpose of Machine Specification and Installation Machine Controls Pre-start Checks Loading Paper Instructions for Use Clearing Paper Jams Troubleshooting Declaration of Conformity 38-OM225-1 www.pregis.com... -
Page 3: Safety Information
• The machine will not run with the top cover or the paper off-cuts door open. • The machine is to be serviced or repaired only by Pregis. Always switch off the machine from the mains supply before freeing paper jams or lifting the top cover. -
Page 4: Description And Purpose Of Machine
Description and Purpose of Machine The purpose of the Pregis Packmaster-pro machine is to produce tough, resilient cushions of recyclable packaging material. The machine is loaded with either a single ply or a two ply roll of paper. As the material passes through the machine it is formed and shaped to produce a continuous cushion which is cut off to the selected length. -
Page 5: Specification And Installation
The machine must be securely strapped to a pallet for transporting safely. The machine and frame weigh 148kg. Connections The machine must be connected to a 230V, 50Hz, 1-phase electrical supply. THE MACHINE MUST BE EARTHED. No other services are required. Maximum power consumption is 400W. 38-OM225-1 www.pregis.com... -
Page 6: Machine Controls
This button is pressed to initiate the cycle for single pack, semi-automatic and continuous operation. *Fault Indication* If the machine stops unexpectedly and F1, F2, F3 or F4 are displayed, this indicates a fault (see troubleshooting, page 21). 38-OM225-1 www.pregis.com... -
Page 7: Pre-Start Checks
4. Switch the machine on by pressing from the outfeed channel without the green ‘I’ button. The display will any restriction. illuminate. If the display shows flashing ‘dashes’ the machine needs to be loaded with a roll of paper. 38-OM225-1 www.pregis.com... -
Page 8: Loading Paper
NOTE: If the machine runs out of paper in auto batch mode, the machine will automatically continue to produce the remaining quantity of packs as soon as the paper has been loaded. 38-OM225-1 www.pregis.com... - Page 9 NOTE: If the machine runs out of paper in auto batch mode, the machine will automatically continue to produce the remaining quantity of packs as soon as the paper has been loaded. 38-OM225-1 www.pregis.com...
-
Page 10: Instructions For Use
Release the footswitch when the re- quired length of cushion is produced. Remove the cushion from the machine. 38-OM225-1 www.pregis.com... - Page 11 Whilst not feeding a pack ‘A1’ will flash to show semi-automatic op- eration is active - pressing the ‘Home’ button cancels this. NOTE: If the quantity is set to ‘A2’ two packs are produced, one after the other. 38-OM225-1 www.pregis.com...
- Page 12 Single packs are produced on demand to the set length. 2. Rotate the length knob to the required 1. Rotate the quantity knob to ‘01’. length. 3. Press the black ‘Run’ button to 4. The machine will produce one initiate the cycle. pack to the set length. 38-OM225-1 www.pregis.com...
- Page 13 Press the black ‘Start’ button to initiate the cycle. NOTE: If the quantity is set above 99, the display will and will run continuously until the show paper runs out, or the machine is stopped. 38-OM225-1 www.pregis.com...
- Page 14 Press the black ‘Start’ button to initiate the cycle. NOTE: If the quantity is set above 99, the display will and will run continuously until the show paper runs out, or the machine is stopped. 38-OM225-1 www.pregis.com...
- Page 15 (whilst the display is flashing). 3. Rotate the length knob to the de- 4. Release the preset button to save sired length (whilst the display is the values - the display will flash flashing). twice before remaining on. 38-OM225-1 www.pregis.com...
- Page 16 (without pressing the ‘Run’ button). To change the preset button operation to require the ‘Run’ button to be pressed, press all three and hold preset buttons for 5 seconds until the ‘dot’ disappears. 38-OM225-1 www.pregis.com...
- Page 17 5. Release the preset button to save 4. The machine will not switch on or the values - the display will flash start if the outfeed flap is open. twice before remaining on. 38-OM225-1 www.pregis.com...
-
Page 18: Clearing Paper Jams
Lift the front end of the inner paper former and remove all paper. Swing the black ‘T’ handles up and clamp down. Check that no paper pieces remain in the folding area, the crimping area and the outfeed channel. 38-OM225-1 www.pregis.com... - Page 19 4. Locate the blade reset tool (supplied) 3. Lift the door forwards over the on the crank nut. knobs to remove. Rotate the crank clockwise to the position shown; this releases the paper jammed in the blades. 38-OM225-1 www.pregis.com...
- Page 20 3. Remove any paper off-cuts from 4. Replace the paper off-cuts door taking around the blade mechanism. care to align the safety switch key. Tighten the two black knobs. 38-OM225-1 www.pregis.com...
-
Page 21: Troubleshooting
This can be found on the back of the machine, behind the paper roll holder. The machine is the property of Pregis and under no circumstances is a customer to attempt to carry out any dismantling other than removal of the top cover or paper off-cuts door to clear a paper jam. -
Page 22: Declaration Of Conformity
Machinery Directive 2006/42/EC, the Low Voltage Directive (LVD) 2014/35/EC and the Electromagnetic Compatibility Directive 2014/30/EC. Manufacturer: Pregis Ltd Unit 1, The Io Centre, Whittle Way, Address: Arlington Business Park, Stevenage, Hertfordshire, SG1 2BD, England...
