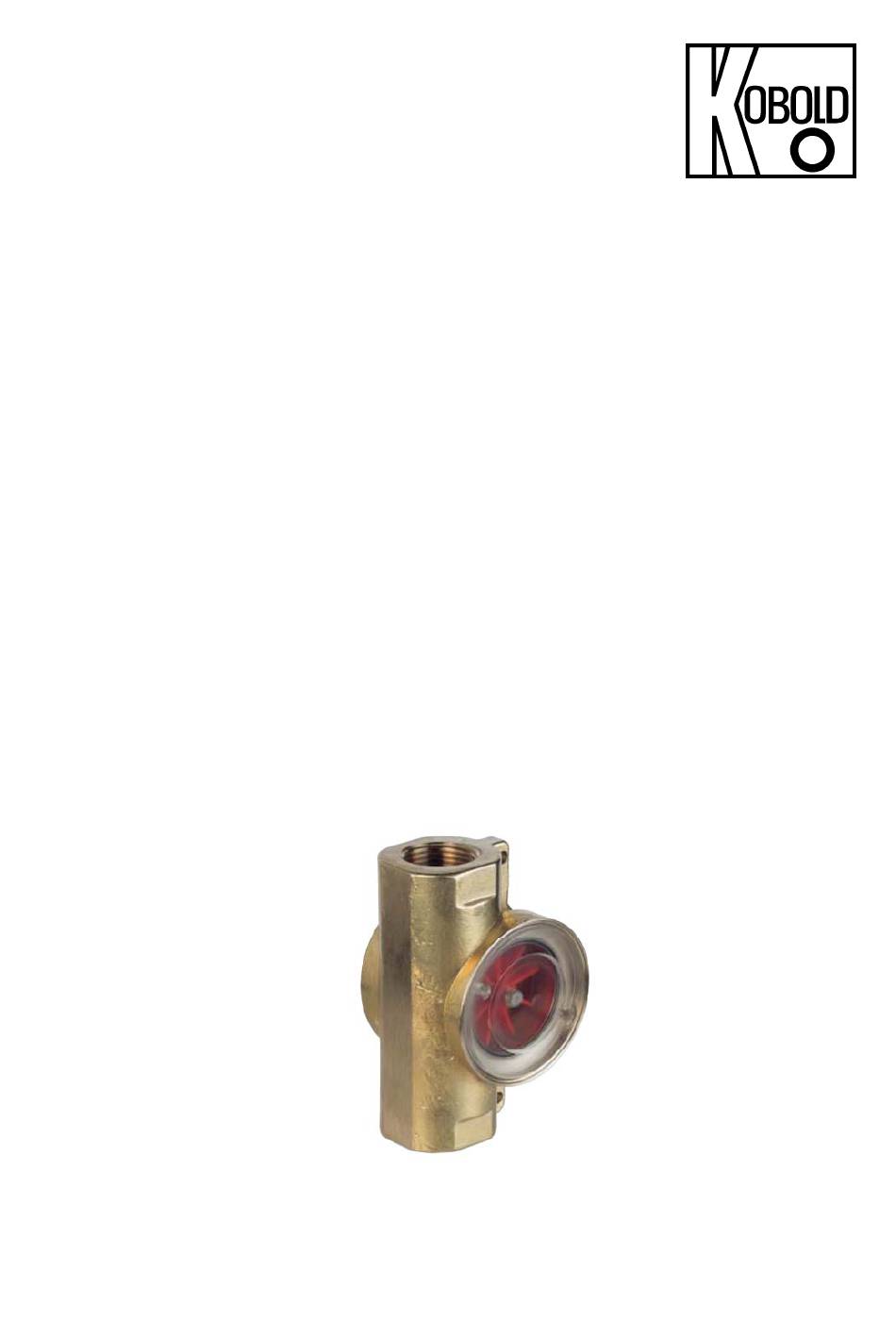

- Page 1 Operating Instructions Rotating-Vane Flow Indicator Model: DIG...
- Page 2 Order Codes ....................6 Dimensions ....................6 EU Declaration of Conformance ..............7 Manufactured and sold by: Kobold Messring GmbH Nordring 22-24 D-65719 Hofheim/Germany Tel.: +49(0)6192-2990 Fax: +49(0)6192-23398 E-mail: info.de@kobold.com Internet: www.kobold.com Page 2 DIG K02/1117...
-
Page 3: Operating Principles
2. Note Please read these operating instructions before unpacking and putting the unit into operation. Follow the instructions precisely as described herein. The devices are only to be used, maintained and serviced by persons familiar with these operating instructions and in accordance with local regulations applying to Health &... - Page 4 5. Instrument Inspection Instruments are inspected before shipping and sent out in perfect condition. Should damage to a device be visible, we recommend a thorough inspection of the delivery packaging. In case of damage, please inform your parcel service / forwarding agent immediately, since they are responsible for damages during transit.
-
Page 5: Technical Information
Wrong! Right The threaded connections must be sealed with Teflon tape or similar sealant. During installation, avoid placing pressure and tension loads on the device. We recommend that the inlet and outlet lines be mechanically secured at a distance of approximately 50 mm from the connections. - Page 6 8. Order Codes Display Range Connection Connection L/min water ∆ P (bar)* DIG-1... DIG-14... DIG-18... Standard Special R06=G 1/8 IG N06=1/8 NPT 0,5...12 DIG-1105 DIG-1405 DIG-1805 R08=G 1/4 IG N08=1/4 NPT 1...25 DIG-1110 DIG-1410 DIG-1810 R15=G 1/2 IG N15=1/2 NPT 2...45 DIG-1120 DIG-1420...
- Page 7 10. EU Declaration of Conformance We, KOBOLD Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: Rotating-Vane Flow Indicator Model: DIG-... to which this declaration relates is in conformity with the standards noted below: EN 50581:2012 Technical documentation for the assessment of electrical...
