www.ti.com
4.2
BoosterPack Pinout
The BOOSTXL-CAPKEYPAD is compatible with the 40-pin BoosterPack plug-in module standard. The
BoosterPack plug-in module headers provide I
and SCL signals), as well as an open-drain type interrupt request (IRQ) signal, which can be connected to
one of two BoosterPack plug-in module pins to alert a host LaunchPad development kit when new data is
available from the keypad.
1
2
3
4
5
6
7
8
9
10
SLAU758 – January 2018
Submit Documentation Feedback
2
C connectivity to a host LaunchPad development kit (SDA

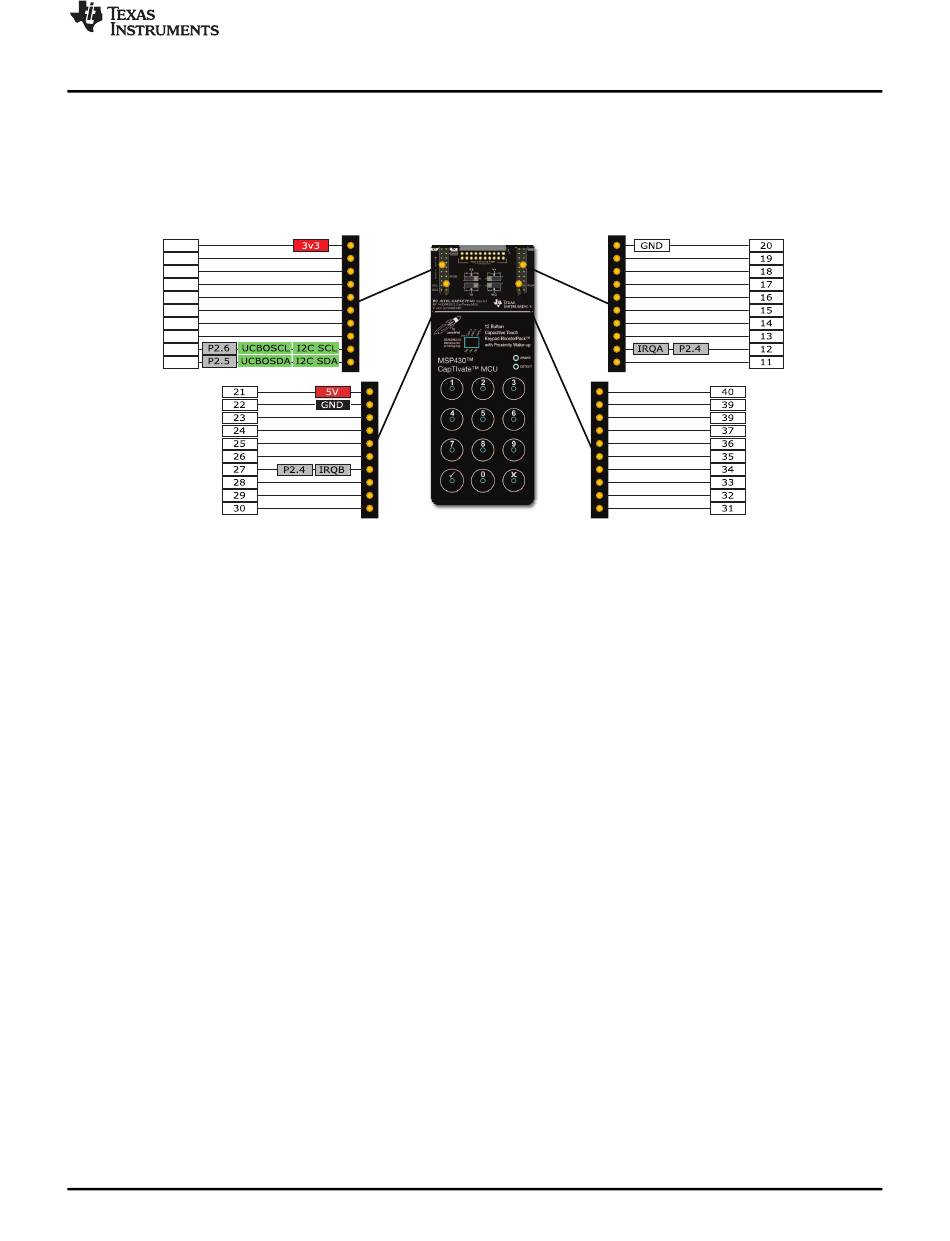

Figure 3. BOOSTXL-CAPKEYPAD Pinout
BOOSTXL-CAPKEYPAD Capacitive Touch BoosterPack Plug ‑ in Module
Copyright © 2018, Texas Instruments Incorporated
Hardware
5
