Now all status registers, parameters and log items will be retrieved, from all units in the system. When
done, it will be presented like this.

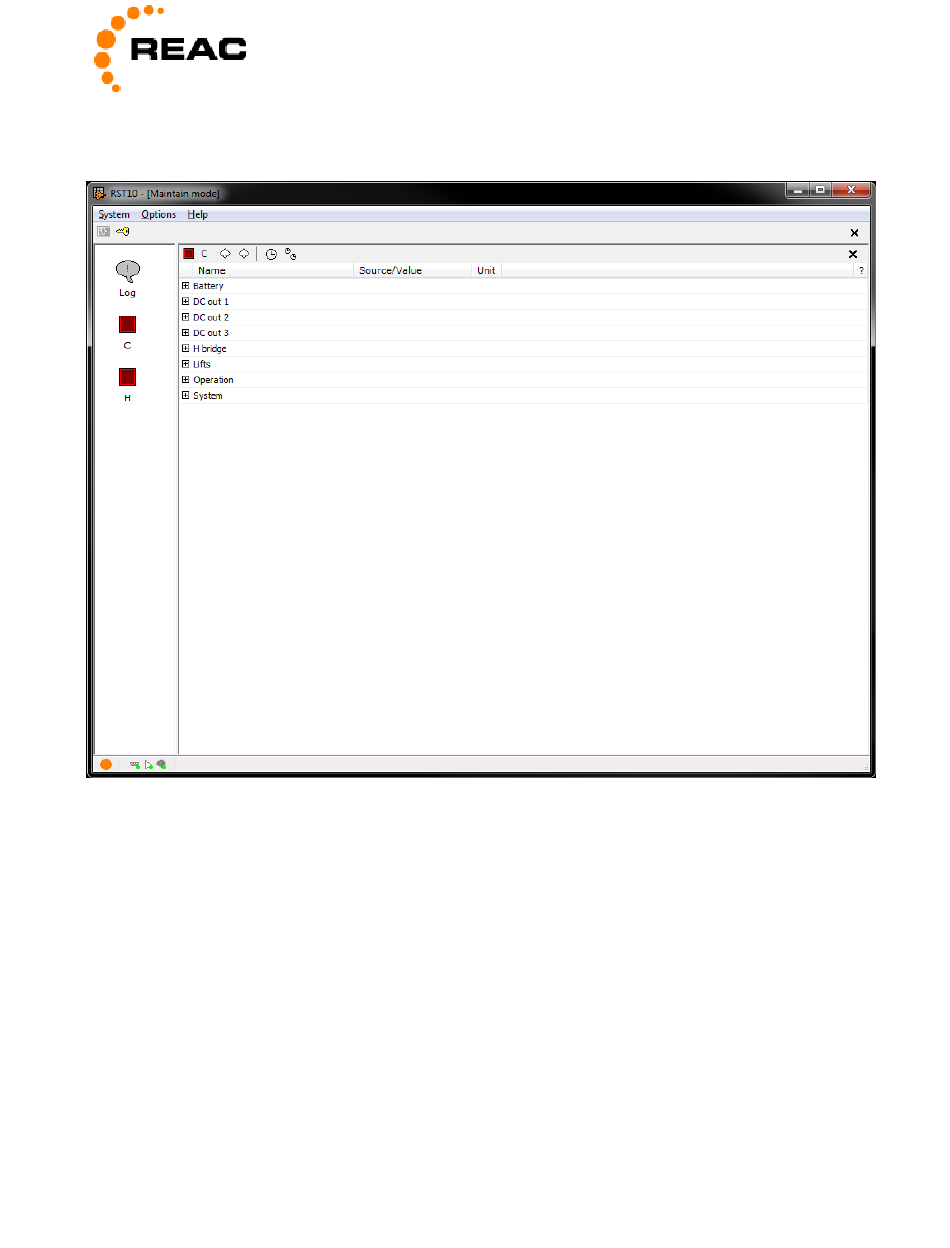

In the small area to the left, one icon for each detected unit is listed. There is also an icon for the
aggregated log, common for all units. C stands for the control box. H stands for the hand control.
The larger area to the right is for viewing different tools. In the example above, a viewer for the control box
(C icon), have been double clicked, and opened up in the area to the right, showing its groups of status
registers and parameters.
