PC SOFTWARE – MONI LOG® ANALYZER
Furthermore, the view period can be adjusted via the slide bar; by moving the blue bars
with the mouse (see Figure 11).

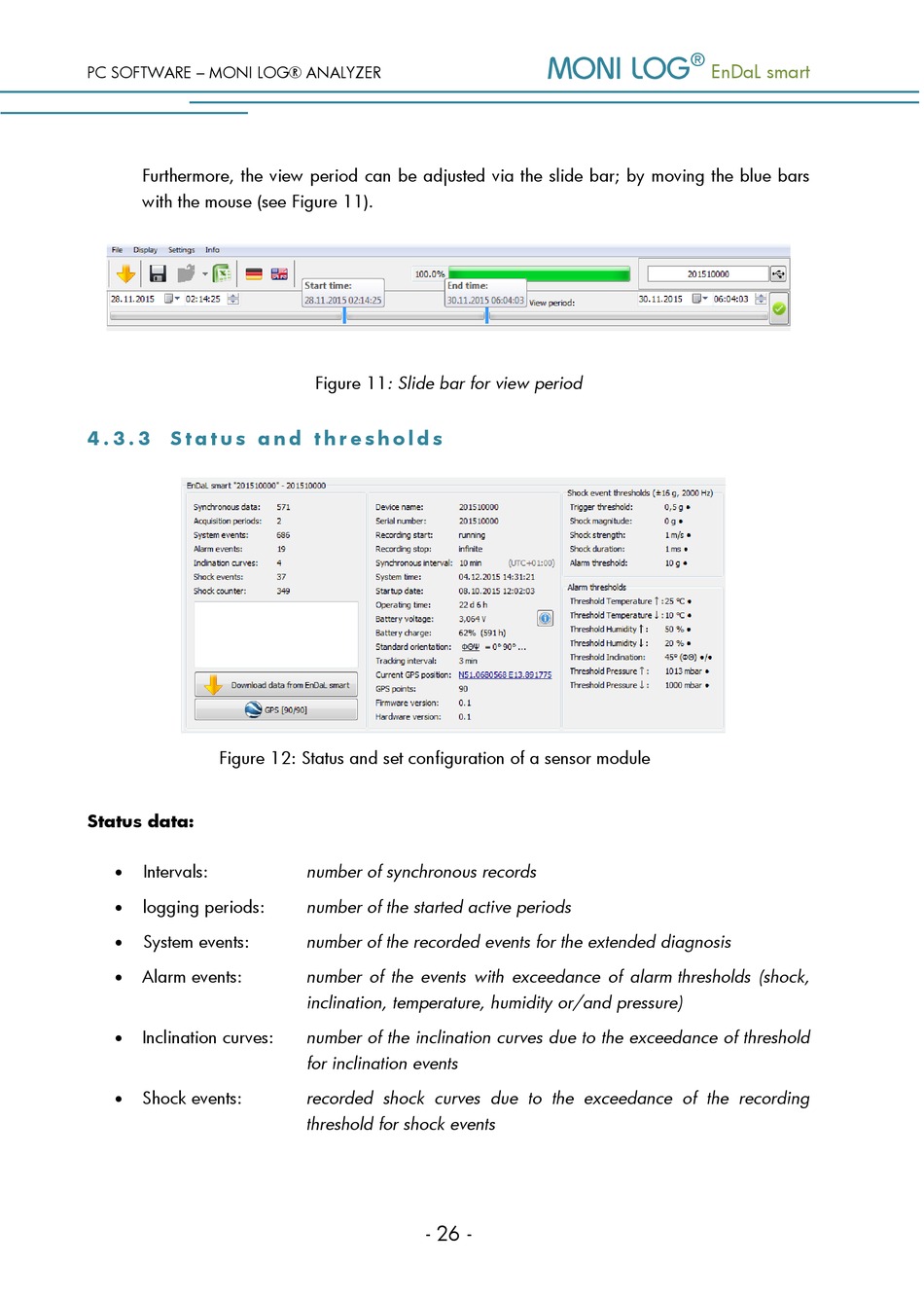

4 . 3 . 3 S t a t u s a n d t h r e s h o l d s
Figure 12: Status and set configuration of a sensor module
Status data:
 Intervals:
logging periods:

System events:

Alarm events:

 Inclination curves:
 Shock events:
Figure 11: Slide bar for view period
number of synchronous records
number of the started active periods
number of the recorded events for the extended diagnosis
number of the events with exceedance of alarm thresholds (shock,
inclination, temperature, humidity or/and pressure)
number of the inclination curves due to the exceedance of threshold
for inclination events
recorded shock curves due to the exceedance of the recording
threshold for shock events
- 26 -
EnDaL smart
