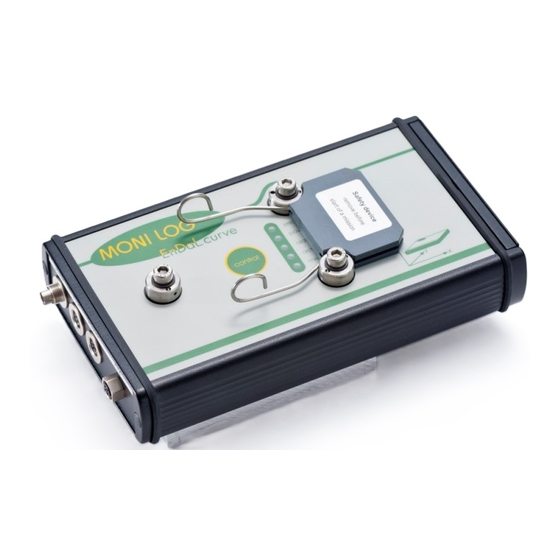

MONI LOG EnDaL curve Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

EnDaL curve/vi
Manual
for
EnDaL curve
and
EnDaL vi
Release 09/2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EnDaL curve and is the answer not in the manual?

Questions and answers

Related Manuals for MONI LOG EnDaL curve

Summary of Contents for MONI LOG EnDaL curve

  • Page 1 EnDaL curve/vi Manual EnDaL curve EnDaL vi Release 09/2017...

  • Page 3: Table Of Contents

    EnDaL curve/vi ENVIRONMENTAL AND SAFETY INSTRUCTIONS T A B L E O F C O N T E N T S ENVIRONMENTAL AND SAFETY INSTRUCTIONS ......... 3 INTRODUCTION ..................4 TECHNICAL PARAMETERS ................. 5 DEVICE DESCRIPTION ................7 ......................7...
  • Page 4 EnDaL curve/vi ENVIRONMENTAL AND SAFETY INSTRUCTIONS 5.6.2 Sensor Configuration ....................24 5.6.3 Autoprogramming ...................... 25 5.6.4 Password ........................25 ................26 VALUATION OF MEASURING DATA 5.7.1 Device Status and Acquisition Periods ................26 5.7.2 Overall Graphic (total) ....................27 5.7.3 Acceleration Data ......................

  • Page 5: Environmental And Safety Instructions

    Lithium batteries are hazardous waste. Battery operation EnDaL curve is typically supplied with two exchangeable alkaline or lithium batteries (type C|R14). They can be bought in specialized stores according to the specification stated in the instruction manual.

  • Page 6: Introduction

    Because of its versatility of power supply and its degree of protection IP65, EnDaL curve/vi is suitable as an independent long-term transport data logging system. By the use of an external power supply, it is also suitable for stationary applications.

  • Page 7: Technical Parameters

    EnDaL curve/vi TECHNICAL PARAMETERS T E C H N I C A L P A R A M E T E R S Case and operational conditions Case material Aluminium, powder-coated Degree of protection IP65 IP40 for version with external NiMH secondary cells and internal 9 V...
  • Page 8 EnDaL curve/vi TECHNICAL PARAMETERS 3x green (power, active, memory) Key button 1x “control“ to display the operating state via LEDs Shackle magnetic on/off-switch Bypass switch toggle switch to bypass the safety bar (permanently switched on) Sound module Only for EnDaL vi...

  • Page 9: Device Description

    4 . 1 D E V I C E S E T U P The following picture shows a possible configuration of a EnDaL vi. The available inputs and outputs on the EnDaL curve/vi depend on the specific model. Please contact the distribution of SMT ELEKTRONIK GmbH for further information.

  • Page 10: Connecting External Sensors And Switches

    The measuring ranges of the internal charge amplifiers are 100, 200, 500, 1000 or 2000 pC for each channel (EnDaL curve). Measuring ranges of 50, 100, 250, 500 or 1000 mV can be set for ICP sensors (EnDaL vi). The transmission factors of each sensor connected to a channel can also be entered in the measuring program so that the stored measured values correspond to the accelerations in g transmitted by the sensors.

  • Page 11: Operation

    An alternative to the indication by means of the integrated LEDs is to signalise the current operating status with an external test connector. This test connector needs to be connected to the EnDaL curve/vi via the RS-232 data cable. The function of this test connector is described in a separate appendix.

  • Page 12: Changing The Batteries

    "Shackle" and not to "ON", so that the safety shackle can switch off the EnDaL curve. After unscrewing the battery holder (cross recessed head H size 2), the used batteries can be removed. Insert the new batteries, making sure their polarity is correct. Tighten the battery holder with a tightening torque of 75 Ncm.

  • Page 13: Mounting Information

    To avoid unintentional shock absorption and thus the measurement of insufficient acceleration values, you should attach the EnDaL curve/vi as close as possible to the goods or package. Shocks absorbing padding or instable assemblies distort the measurement results!

  • Page 14: Measurement Data Acquisition

    EnDaL curve/vi DEVICE DESCRIPTION 4 . 6 M E A S U R E M E N T D A T A A C Q U I S I T I O N 4 . 6 . 1 M e a s u r i n g S h o c k E v e n t s Every acceleration event that exceeds the set recording threshold and the minimum shock duration on at least one of the active measuring channels (X, Y, Z) is recorded.

  • Page 15: Synchronous Measurements

    EnDaL curve/vi DEVICE DESCRIPTION 4 . 6 . 3 S y n c h r o n o u s m e a s u r e m e n t s The measurement of temperature and humidity and the free analogue measuring channel and optionally the recording of geographical position are time-controlled and occur at regular intervals.

  • Page 16: Pc Evaluation Software Encur

    5 . 1 S Y S T E M R E Q U I R E M E N T S The evaluation software ENCUR is exclusively designed for the usage with the data logger EnDaL curve and EnDaL vi. The software ENCUR requires the following minimum PC specifications:...

  • Page 17: Overview

    EnDaL curve/vi PC EVALUATION SOFTWARE ENCUR 5 . 3 O V E R V I E W Main menu Function (context menu) Menu File Transfer device data  Data transfer Ctrl+T Ctrl+O  Open Open measuring file (*.edz) Drag&Drop or program file(*.epz) ...
  • Page 18 EnDaL curve/vi PC EVALUATION SOFTWARE ENCUR Main menu Function (context menu) Overall graphic total  Overall graphic total (graphical overview with all Ctrl+Alt+G measured values for all (Overall graphic total) acquisition periods) Overall graphic  Overall graphic (graphical overview with all...
  • Page 19 EnDaL curve/vi PC EVALUATION SOFTWARE ENCUR Main menu Function (context menu) Change password (configuration of the device  Change password protection) Menu Options Basic settings (configuration  Basic settings of interfaces and display)  Classification  Shock Classification (parameter for...

  • Page 20: Configurations (Options )

    In the menu Basic settings the file path, the communication interface as well as the graphical view can be configured. The types of measurement data to be transferred from the EnDaL curve/vi to the PC can also be configured. This menu is located in the tab Options.
  • Page 21 In the panel “Data transfer”, you can select the different types of measurement data to be transferred from the EnDaL curve/vi to the PC. The transfer of the acceleration curves is bound to the transfer of acceleration events. Graphics With the tab “Graphics”,...

  • Page 22: Classification

    EnDaL curve/vi PC EVALUATION SOFTWARE ENCUR 5 . 4 . 2 C l a s s i f i c a t i o n In the menu “Options  Classification”, the parameter for the classification can be selected. The classification (table and graphic) sorts the measured values according to selected parameters (see 5.7.3.4)

  • Page 23: Manage Measuring And Program Files

    EnDaL curve/vi PC EVALUATION SOFTWARE ENCUR 5 . 5 M A N A G E M E A S U R I N G A N D P R O G R A M F I L E S Open files (*.epz and *.edz) If all files are closed, you can load a measuring file (*.edz) or a measuring program file (*.epz).

  • Page 24: Device Configuration

    EnDaL curve/vi PC EVALUATION SOFTWARE ENCUR 5 . 6 D E V I C E C O N F I G U R A T I O N 5 . 6 . 1 M e a s u r i n g P r o g r a m The measuring program configures the settings for data recording.
  • Page 25 EnDaL curve/vi PC EVALUATION SOFTWARE ENCUR Label Function N° Activates/deactivates the cyclic measured parameters (Interval Meas. channels T/F/AN): (cycl.) GPS, temperature (T), relative humidity (H), analogue channel (AN) Events Activates/deactivates the event triggered parameters: (Digital) Digital channels (D0, D1, D2, D3), The settings of the sensor configuration window and the parameters inner frame (measuring range and acceleration channels) won’t be...

  • Page 26: Sensor Configuration

    EnDaL curve/vi PC EVALUATION SOFTWARE ENCUR Label Function N° Sends the above parameters to the device (transmission of the sensor Send setting depends on setting “Retain sensor settings” (N° 3)) Saves the current configuration (including the sensor configurations) in Save a measuring program file (*.epz)

  • Page 27: Autoprogramming

     If the password protection for configuration is enabled, the software asks to enter this password between EnDaL curve/vi will reading out and send of the configuration. Due to the time delay, the break the communication. Do not enter the password until the LEDs go black! 5 .

  • Page 28: Evaluation Of Measuring Data

    EnDaL curve/vi PC EVALUATION SOFTWARE ENCUR 5 . 7 E V A L U A T I O N O F M E A S U R I N G D A T A 5 . 7 . 1 D e v i c e S t a t u s a n d A c q u i s i t i o n P e r i o d s...

  • Page 29: Overall Graphic (Total)

    EnDaL curve/vi PC EVALUATION SOFTWARE ENCUR 5 . 7 . 2 O v e r a l l G r a p h i c ( t o t a l ) The “Overall graphic” shows the occurrence of all measured parameters of the selected acquisition period.

  • Page 30: Acceleration Data

    EnDaL curve/vi PC EVALUATION SOFTWARE ENCUR In the overall graphic you can navigate as follows: Mouse Function Mouse key movement Ctrl right Opens functions (context menu) for marked curve right Left or right Moves the graphic left From left to right...

  • Page 31: Curve Analysis

    EnDaL curve/vi PC EVALUATION SOFTWARE ENCUR The headers “direction” and “area” indicate from where the acceleration was induced. The area indicator is defined as follows: Shock in direction of Function  Corner  0 58   Edge 0 58 0 58 ...
  • Page 32 EnDaL curve/vi PC EVALUATION SOFTWARE ENCUR Curve table and acceleration curve The curve table represents the course of the acceleration curve for the channels X, Y, Z and the magnitude R. On the top of the table, the time stamp of the curve can be seen.

  • Page 33: Distribution

    EnDaL curve/vi PC EVALUATION SOFTWARE ENCUR SRS - Shock Response Spectrum The SRS is a mathematical model to estimate the potential damage of the cargo. It represents the system’s response in form of the acceleration peak value of a particular frequency or a frequency range.

  • Page 34: Classification

    EnDaL curve/vi PC EVALUATION SOFTWARE ENCUR 5 . 7 . 3 . 4 C l a s s i f i c a t i o n The classification orders the occurred shocks of an acquisition period into 10 classes. The classification is carried out according to the maximum value.

  • Page 35: Gps-Data

    The usage of Google Earth as GPS program is recommended. Please note that an internet connection is necessary to use Google Earth. the EnDaL curve/vi device is listed with its measuring data. You can In Google Earth on the left...

  • Page 36: Help

    S E R V I C E A N D C A L I B R A T I O N EnDaL curve/vi has an internal backup battery, which supplies the internal clock while the device is switched off. This backup battery must be replaced every 6 years.

  • Page 37: Warranty Certificate

    EnDaL curve/vi WARRANTY CERTIFICATE W A R R A N T Y C E R T I F I C A T E EnDaL curve/vi Against submission of this warranty certificate we grant a 12-month warranty from the date of delivery for the above instrument.
