UM2480
User manual
Getting started with the X-NUCLEO-EEPRMA1 standard I²C and SPI EEPROM
memory expansion board based on M24xx and M95xx series for STM32 Nucleo
Introduction
The
X-NUCLEO-EEPRMA1
expansion board is designed for M24xx I²C and M95xx SPI EEPROM for data reading and writing.
The expansion board acts as an external storage device that can be used to store data such as manufacturing traceability,
calibration, user setting, error flags, data log and monitoring data to make applications more flexible and accurate.
The X-NUCLEO-EEPRMA1 expansion board is compatible with the Arduino UNO R3 connector pin assignment and can be
easily plugged to any
STM32 Nucleo
development board. You can mount the ST morpho connectors if required.

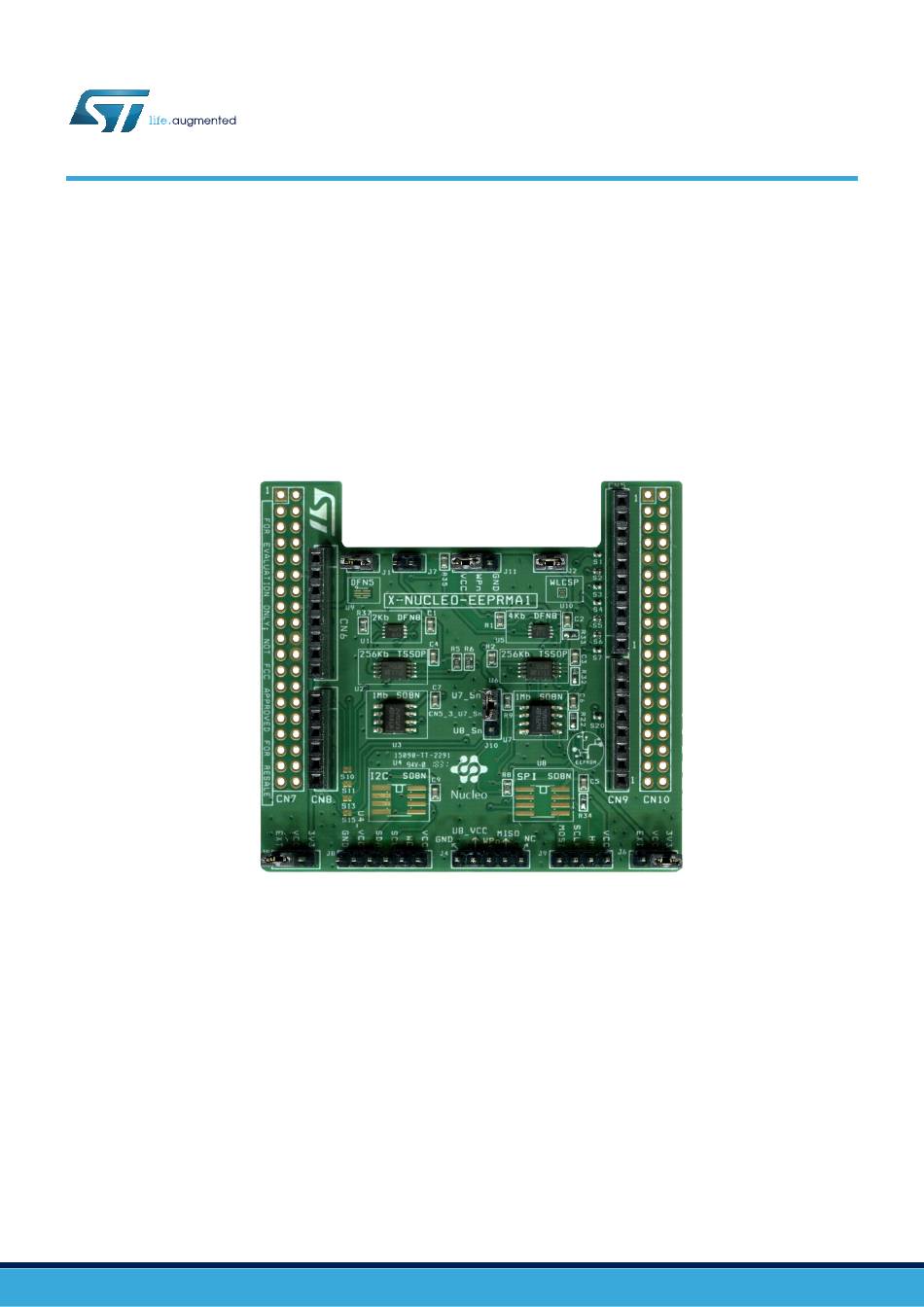

Figure 1.
X-NUCLEO-EEPRMA1 expansion board
UM2480 - Rev 1 - October 2018
www.st.com
For further information contact your local STMicroelectronics sales office.
