Wiring Diagram - Timeguard TRT034 Operating & Installation Instructions Manual

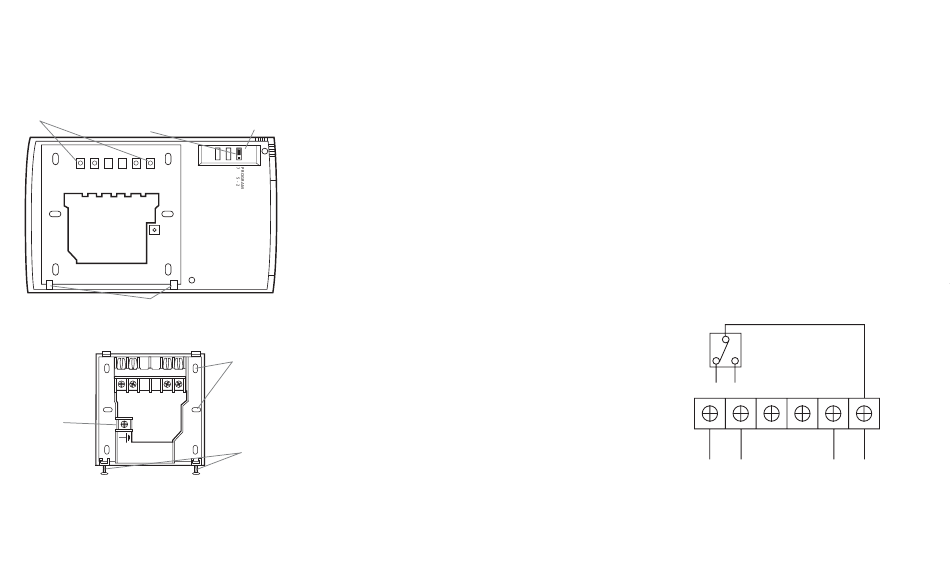

Rear View of TRT034
Connection Press reset after
pins moving jumper
Wall plate retaining screws
Fig. 2 (at bottom of TRT034)
Back Plate Removed
NC1 NO1 N L
Terminal for
retaining
continuity
of earth
Fig. 3 Mount the wall plate in this configuration only
Contents
7 day or
TRT034 programmer
5 + 2 jumper
TRT034 wall plate
TRT034 instruction leaflet
2. Siting
The TRT034 should be located at a position
which eases wiring runs and gives good access
for programming. It should be mounted
approximately 1.5m above floor level.
3. Installation
This product must be installed in accordance with
the appropriate building and wiring regulations.
In all cases if there is a doubt as to how to
proceed with an installation consult a qualified
electrician, your local authority's building
Alternative
fixing holes control department or the Timeguard helpline
(020 8450 0515).
Always isolate the mains supply before
removing the unit from its wall plate.
The TRT034 is designed to be surface mounted
Product
on the supplied wall plate.
retaining
screws
Isolate 230VAC mains supply.
Incoming and outgoing cable should be 1.5mmsq.
Remove wall plate from unit, by undoing
retaining screws, and pivoting the bottom of the
2 x wall plugs
unit outwards. The unit can then be lifted off.
2 x screws
Pass incoming wires through opening in wall
plate, and fix wall plate securely to the wall,
using screws provided (and wall plugs if
necessary). The screws which hold the product
to the wall plate should point downwards.
Allow sufficient excess cable to wire up the unit,
but not too much to make it difficult to close
the unit to the wall plate.
Connect the conductors to the relevant terminal,
according to the wiring diagram on the wall
plate (or below). Ensure that the curved brass
washer grips the conductor.

Wiring Diagram

Fig. 4
NC1 NO1 N L
CH CH N L
OFF ON 230 VAC
