Crestron CBL-USB-RS232KM-6 Installation Manual

CBL-USB-RS232KM-6
RS-232 to USB Keyboard/Mouse Cable
Installation Guide

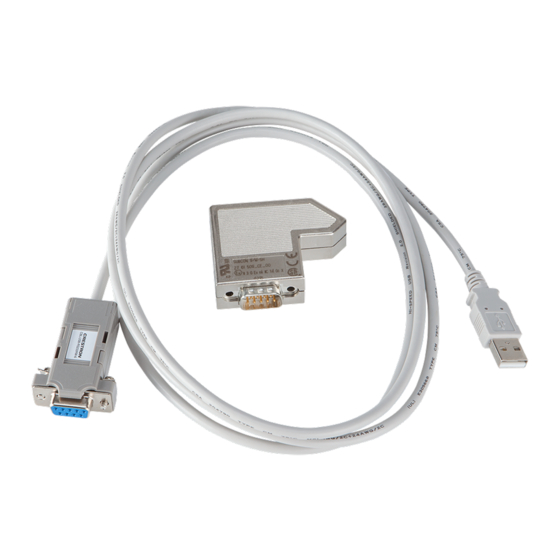

Description
The CBL-USB-RS2 32KM-6 RS-232 to USB
Keyboard/Mouse Cable all ows RS-232 serial
communication from a Crestron
produce keystroke and mouse actions on a target
computer.
NOTE: This product can be used only with 3-Series
control systems.
Additional Resources
Visit the product page on the
Crestron website
(www.crestron.com) for additional
information and the latest rmware
updates. Use a QR reader
application on your mobile device
to scan the QR image.
Installation
Connect the CBL-USB-RS2 32KM-6 to the target
computer's USB port and the control system's serial
port. If the control system does not use a DB9
connector for RS-232 communication, wire a cable
between the included adapter and the control system to
create a connection to the control system's RS-232
port. Refer to the adapter's installation notes to connect
the pins shown in the following table.
PIN
Serial data, connected to Receive on control
2
system
Serial data, connected to Transmit on control
3
system
5 Logic ground
Serial Con guration
The control system's RS-232 port should be con gured
to operate at 9600 baud, 8 data bits, and 1 stop bit.
When programming a control system with Crestron's
programming software, use the two-way serial driver
programming module to send mouse and keyboard
commands from the control system's RS-232 port.
Custom serial commands can be sent as well. Refer to
the CBL-USB-RS2 32KM-6 Reference Guide (Doc. 7854)
at www.crestron.com/manuals for details.
control system to
®
DESCRIPTION
®
