CBLR2 Series
FlipTop™ Cable Retractors
The Crestron®
CBLR2 Series

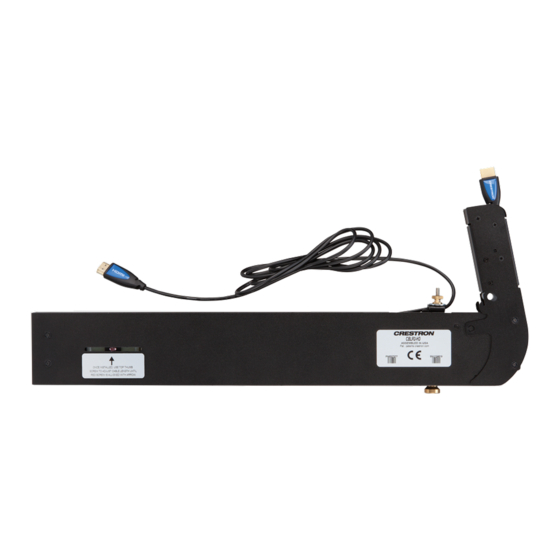

FlipTop™ Cable Retractors offer a refined
solution for Crestron FlipTop cable management systems. Each cable
pulls out smoothly to a length of 3 ft (0.9 m) and latches in position. A
second pull of the cable releases the latch and retracts the cable back into
the compartment.
In the Box
1
CBLR2-HD, CBLR2-MDP-DP, CBLR2-VGA, CBLR2-AUDIO,
CBLR2-USB, CBLR2-CAT5E, or CBLR2-VGA-AUDIO
Check the Accessories
Ensure that the mounting bracket received is appropriate for the FlipTop
being modified
NOTE:
The following table excludes FlipTop 600 Series models.
Mounting Bracket
Assemblies
CBLRA-BRKT-3-FT
FT-PWR-D, QM-FTCC, QM-FTCC-NB, QM-FTDC,
3-Position
QM-FTDC-NB, and QM-FTMC
Domestic Model
CBLRA-BRKT-4-FT
C2N-FTR-TPS4, C2N-FTR-TPS4-U, FT-PWR-D-LG,
4-Position
QM-FTCC-NB, and QM-FTCC-TPS4
Domestic Model
CBLRAI-BRKT-4-FT
FTI-PWR-D, QMI-FTCC, QMI-FTCSC, QMI-FTDC, and
4-Position
QMI-FTMC
International Model
Two spacer insert models,
CBLRA-INSERT-BLANK
CBLRA-INSERT-2WIRE, may be used to fill unpopulated retractor slots in
any of the FlipTops listed above.
Quick Start
FlipTop Models
and
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Crestron FlipTop CBLR2 Series
Summary of Contents for Crestron FlipTop CBLR2 Series
- Page 1 The Crestron® CBLR2 Series FlipTop™ Cable Retractors offer a refined solution for Crestron FlipTop cable management systems. Each cable Check the Accessories pulls out smoothly to a length of 3 ft (0.9 m) and latches in position. A second pull of the cable releases the latch and retracts the cable back into Ensure that the mounting bracket received is appropriate for the FlipTop the compartment.
- Page 2 Quick Start CBLR2 Series FlipTop™ Cable Retractors 4. Remove and discard the cable guide. The cable guide is used with pass- through cables only. Prepare the FlipTop Assembly Attaching the CBLR2 Series retractors requires modification to the FlipTop assembly, which also includes determining the desired mounting orientation.
- Page 3 Quick Start CBLR2 Series FlipTop™ Cable Retractors 5. Move the mounting bracket assembly up into position and secure the assembly using six screws removed in step 1. 6. Position the side filler plates and secure them using four screws removed in step 3.
- Page 4 Quick Start CBLR2 Series FlipTop™ Cable Retractors Modify the FlipTop (FlipTop 600 Series Models) 2. Remove and retain the shoulder screws from the front of the 600 Series FlipTop. The shoulder screws are used to install the cable Retractors may be installed in both the left and right sides of the FlipTop retractors.
- Page 5 Quick Start CBLR2 Series FlipTop™ Cable Retractors Reconfigure the Retractors for Horizontal 3. Using the four screws removed from step 1, secure the retractor neck. Operation The retractors are shipped configured for vertical orientation. If the vertical space beneath the table is limited, the retractors may be reconfigured for horizontal orientation by following the steps below.
- Page 6 Quick Start CBLR2 Series FlipTop™ Cable Retractors Adjust the Retractor Tension 1. Loosen the top thumb screw enough so that the adjacent cable end Adjust the Retractor may move freely. When the retractor arm is in the desired orientation, the retractor arm 2.
- Page 7 Quick Start CBLR2 Series FlipTop™ Cable Retractors Setting the Cable Retraction Speed The cable retraction speed must be set before installing the cable Install the Retractors retractor. Cable retractor installation consists of attaching the cable retractors to 1. Pull the cable (connector end) out so it is fully extended. the FlipTop assembly.
- Page 8 Quick Start CBLR2 Series FlipTop™ Cable Retractors 4. Tighten the set screw in each retractor neck so that the screws are just snug against the clevis pin.
- Page 9 Quick Start CBLR2 Series FlipTop™ Cable Retractors Attach the Cable Retractors to the FlipTop 3. Tighten the set screw in each retractor neck. (FlipTop 600 Series Models) 1. Insert the retractor necks into the FlipTop until they engage the frame of the 600 Series FlipTop assembly. 2.
