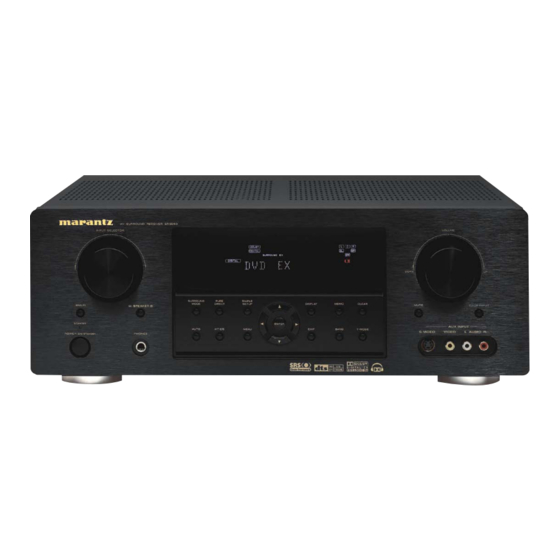

Partner: Marantz
Model: SR5500
Device Type: Receiver/Processor
GENERAL INFORMATION
SIMPLWINDOWS NAME:
CATEGORY:
VERSION:
SUMMARY:
GENERAL NOTES:
CRESTRON HARDWARE REQUIRED:
SETUP OF CRESTRON HARDWARE:
VENDOR FIRMWARE:
VENDOR SETUP:

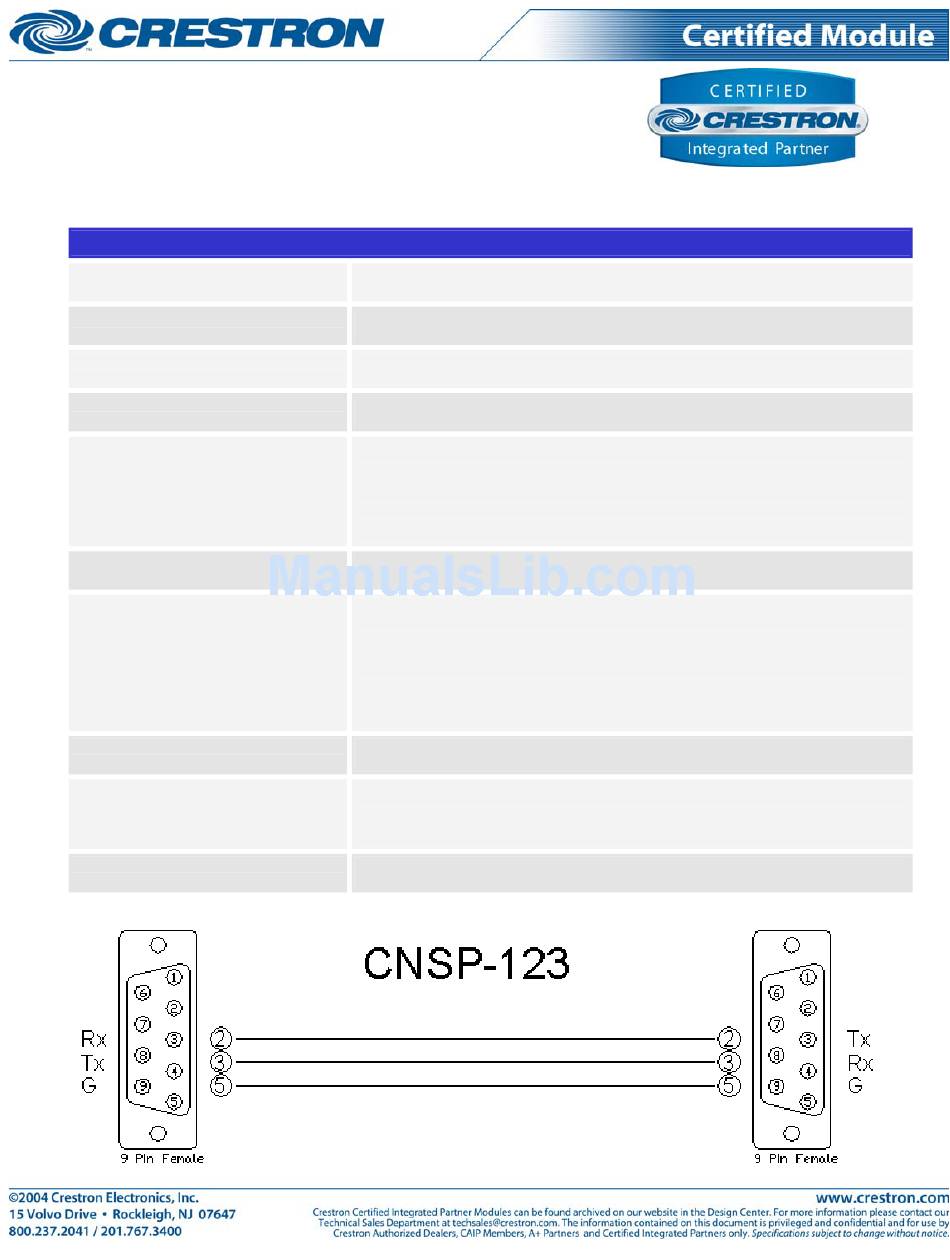

CABLE DIAGRAM:
Marantz SR5500
Receiver/Processor
1.0
This module controls the Marantz SR5500.
This module provides controls for both zones of the SR5500. IT also provides true
feedback.
NOTE: IN THE PREFERENCES MENU, YOU MUST SET THE STBY MODE TO NORMAL.
IF YOU DO NOT CHANGE THIS SETTING, YOU WILL NOT BE ABLE TO TURN THE
RECEIVER ON VIA RS232.
CNXCOM, C2-COM, ST-COM
RS232
Baud: 9600
Parity: None
Data Bits: 8
Stop Bits: 1
None
IN THE PREFERENCES MENU, YOU MUST SET THE STBY MODE TO NORMAL. IF YOU
DO NOT CHANGE THIS SETTING, YOU WILL NOT BE ABLE TO TURN THE RECEIVER
ON VIA RS232.
CNSP-123
Advertisement
Related Manuals for Crestron SR5500
Summary of Contents for Crestron SR5500
- Page 1 Marantz SR5500 Receiver/Processor This module controls the Marantz SR5500. This module provides controls for both zones of the SR5500. IT also provides true feedback. NOTE: IN THE PREFERENCES MENU, YOU MUST SET THE STBY MODE TO NORMAL. IF YOU DO NOT CHANGE THIS SETTING, YOU WILL NOT BE ABLE TO TURN THE RECEIVER ON VIA RS232.
- Page 2 Press and hold to adjust the treble. Pulse to turn the video mute on and off. Pulse to select the information you want displayed on the front of the receiver. Pulse to select the sleep time or turn the sleep timer off. Toggle will step through the sleep times.
- Page 3 Partner: Marantz Model: SR5500 Device Type: Receiver/Processor Lip_Sync Tuner_mode_* Tuner_freq_up/down Tuner_auto_up/down/stop Tuner_preset_up/down Tuner_preset_scan_start/stop Tuner_rds_disp/pty Key_* Tuner_preset_num_call Tuner freq_num_direct_set MR_Power_On/Off/Toggle MR_source_* MR_Volume_Up/Down MR_Volume_Mute_On/Off/Toggle MR_Tuner_Frequency_Up/down MR_Tuner_Auto_Tune_Up/Down/stop MR_tuner_preset_up/down MR_tuner_preset_scan_start/stop MR_tuner_preset_num_call MR_tuner_freq_num_direct_set MS_power_* Ms_volume_up/down Ms_volume_mute_on/off/toggle Pulse to activate the lip sync functions. Pulse to set the tuner mode to stereo auto or mono.
- Page 4 High to indicate the current state of the front panel display. High to indicate that the sleep mode is off. Analog signal indicating the current time remaining before the SR5500 will shut off. To be displayed using a bar graph on a touch panel.
- Page 5 Analog value indicating the value being entered using the Key_* inputs. This is the number that will be sent to the SR5500 when one of the preset_call or freq_num_direct inputs is pulsed. High to indicate the current multi room power state.
- Page 6 High to indicate the sampling rate for the currently selected input. High to indicate which speakers are currently active in the main room. Serial signal to be routed to a 2-way serial com port. PRO2: 3.137 CNMSX-Pro: 5.14.02x 2.05.22 Marantz SR5500 Demo V. 1.0...
