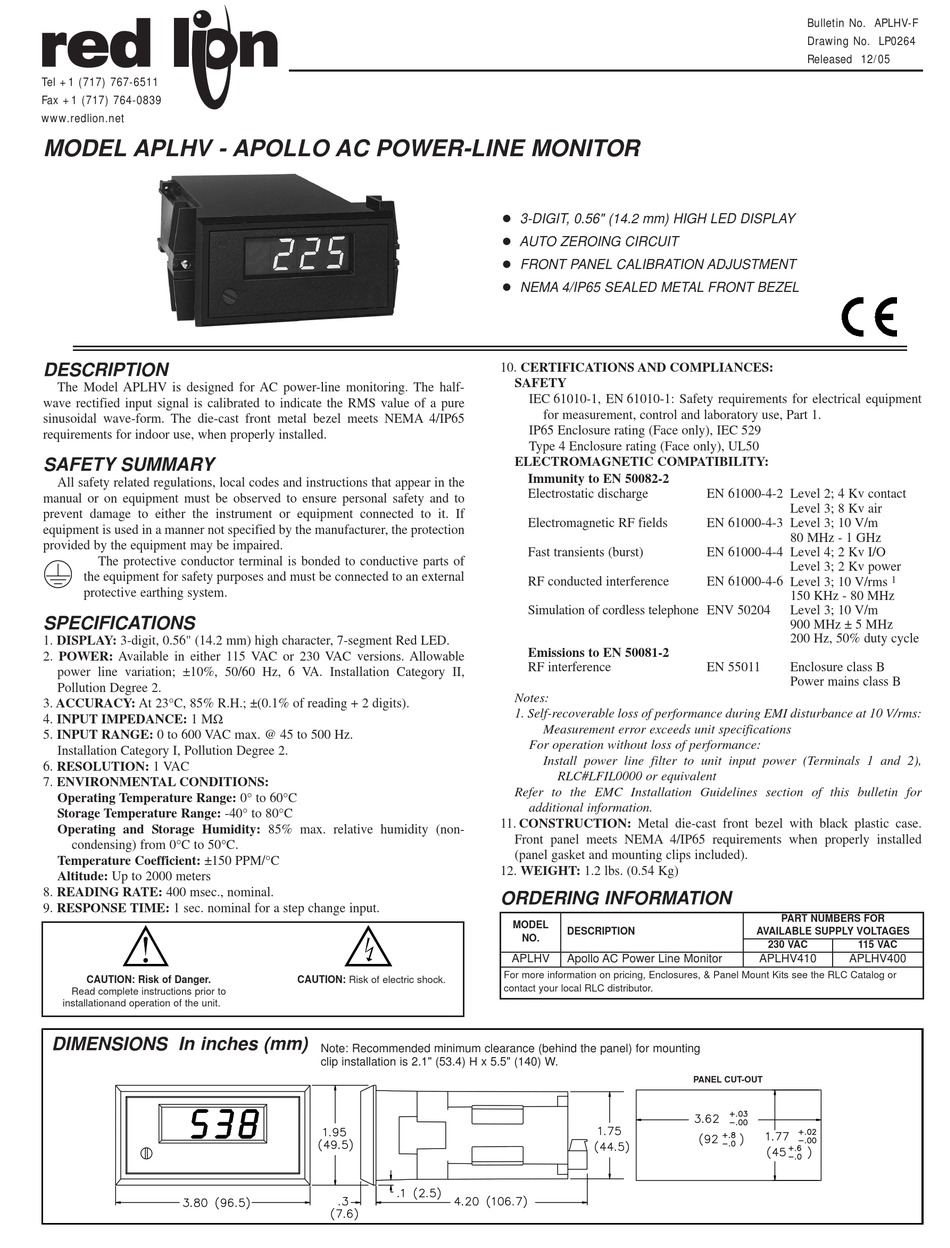

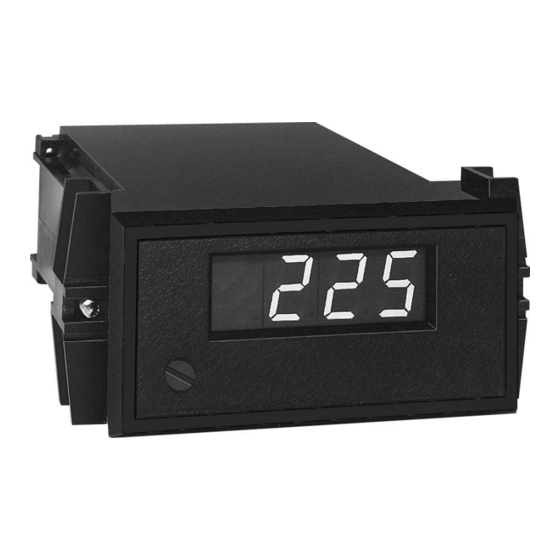

MODEL APLHV - APOLLO AC POWER-LINE MONITOR

DESCRIPTION

The Model APLHV is designed for AC power-line monitoring. The half-
wave rectified input signal is calibrated to indicate the RMS value of a pure
sinusoidal wave-form. The die-cast front metal bezel meets NEMA 4/IP65
requirements for indoor use, when properly installed.

SAFETY SUMMARY

All safety related regulations, local codes and instructions that appear in the
manual or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
The protective conductor terminal is bonded to conductive parts of
the equipment for safety purposes and must be connected to an external
protective earthing system.

SPECIFICATIONS

1. DISPLAY: 3-digit, 0.56" (14.2 mm) high character, 7-segment Red LED.
2. POWER: Available in either 115 VAC or 230 VAC versions. Allowable
power line variation; ±10%, 50/60 Hz, 6 VA. Installation Category II,
Pollution Degree 2.
3. ACCURACY: At 23°C, 85% R.H.; ±(0.1% of reading + 2 digits).
4. INPUT IMPEDANCE: 1 MΩ
5. INPUT RANGE: 0 to 600 VAC max. @ 45 to 500 Hz.
Installation Category I, Pollution Degree 2.
6. RESOLUTION: 1 VAC
7. ENVIRONMENTAL CONDITIONS:
Operating Temperature Range: 0° to 60°C
Storage Temperature Range: -40° to 80°C
Operating and Storage Humidity: 85% max. relative humidity (non-
condensing) from 0°C to 50°C.
Temperature Coefficient: ±150 PPM/°C
Altitude: Up to 2000 meters
8. READING RATE: 400 msec., nominal.
9. RESPONSE TIME: 1 sec. nominal for a step change input.
CAUTION: Risk of Danger.
Read complete instructions prior to
installationand operation of the unit.
DIMENSIONS In inches (mm)
CAUTION: Risk of electric shock.
Note: Recommended minimum clearance (behind the panel) for mounting
clip installation is 2.1" (53.4) H x 5.5" (140) W.
! 3-DIGIT, 0.56" (14.2 mm) HIGH LED DISPLAY
! AUTO ZEROING CIRCUIT
! FRONT PANEL CALIBRATION ADJUSTMENT
! NEMA 4/IP65 SEALED METAL FRONT BEZEL
10. CERTIFICATIONS AND COMPLIANCES:
SAFETY
IEC 61010-1, EN 61010-1: Safety requirements for electrical equipment
for measurement, control and laboratory use, Part 1.
IP65 Enclosure rating (Face only), IEC 529
Type 4 Enclosure rating (Face only), UL50
ELECTROMAGNETIC COMPATIBILITY:
Immunity to EN 50082-2
Electrostatic discharge
Electromagnetic RF fields
Fast transients (burst)
RF conducted interference
Simulation of cordless telephone
Emissions to EN 50081-2
RF interference
Notes:
1. Self-recoverable loss of performance during EMI disturbance at 10 V/rms:
Measurement error exceeds unit specifications
For operation without loss of performance:
Install power line filter to unit input power (Terminals 1 and 2),
RLC#LFIL0000 or equivalent
Refer to the EMC Installation Guidelines section of this bulletin for
additional information.
11. CONSTRUCTION: Metal die-cast front bezel with black plastic case.
Front panel meets NEMA 4/IP65 requirements when properly installed
(panel gasket and mounting clips included).
12. WEIGHT: 1.2 lbs. (0.54 Kg)

ORDERING INFORMATION

MODEL
DESCRIPTION
NO.
APLHV Apollo AC Power Line Monitor
For more information on pricing, Enclosures, & Panel Mount Kits see the RLC Catalog or
contact your local RLC distributor.
Bulletin No. APLHV-F
Drawing No. LP0264
Released 12/05
EN 61000-4-2 Level 2; 4 Kv contact
Level 3; 8 Kv air
EN 61000-4-3 Level 3; 10 V/m
80 MHz - 1 GHz
EN 61000-4-4 Level 4; 2 Kv I/O
Level 3; 2 Kv power
EN 61000-4-6 Level 3; 10 V/rms
150 KHz - 80 MHz
ENV 50204 Level 3; 10 V/m
900 MHz ± 5 MHz
200 Hz, 50% duty cycle
EN 55011 Enclosure class B
Power mains class B
PART NUMBERS FOR
AVAILABLE SUPPLY VOLTAGES
230 VAC 115 VAC
APLHV410 APLHV400
PANEL CUT-OUT
