3.9 Adjusting Transport Lights

1. Position amber light support (A) perpendicular to the
header.
2. Check that pivot bolt (B) is tight enough to hold light
support (A) in upright position, yet allows the light to pivot
out of the way of obstructions.
NOTE:
Do NOT overtighten mounting hardware.
3. Ensure base of light housings and bolted connections on
light supports provide proper electrical grounding.
214805
ASSEMBLING THE MACHINE

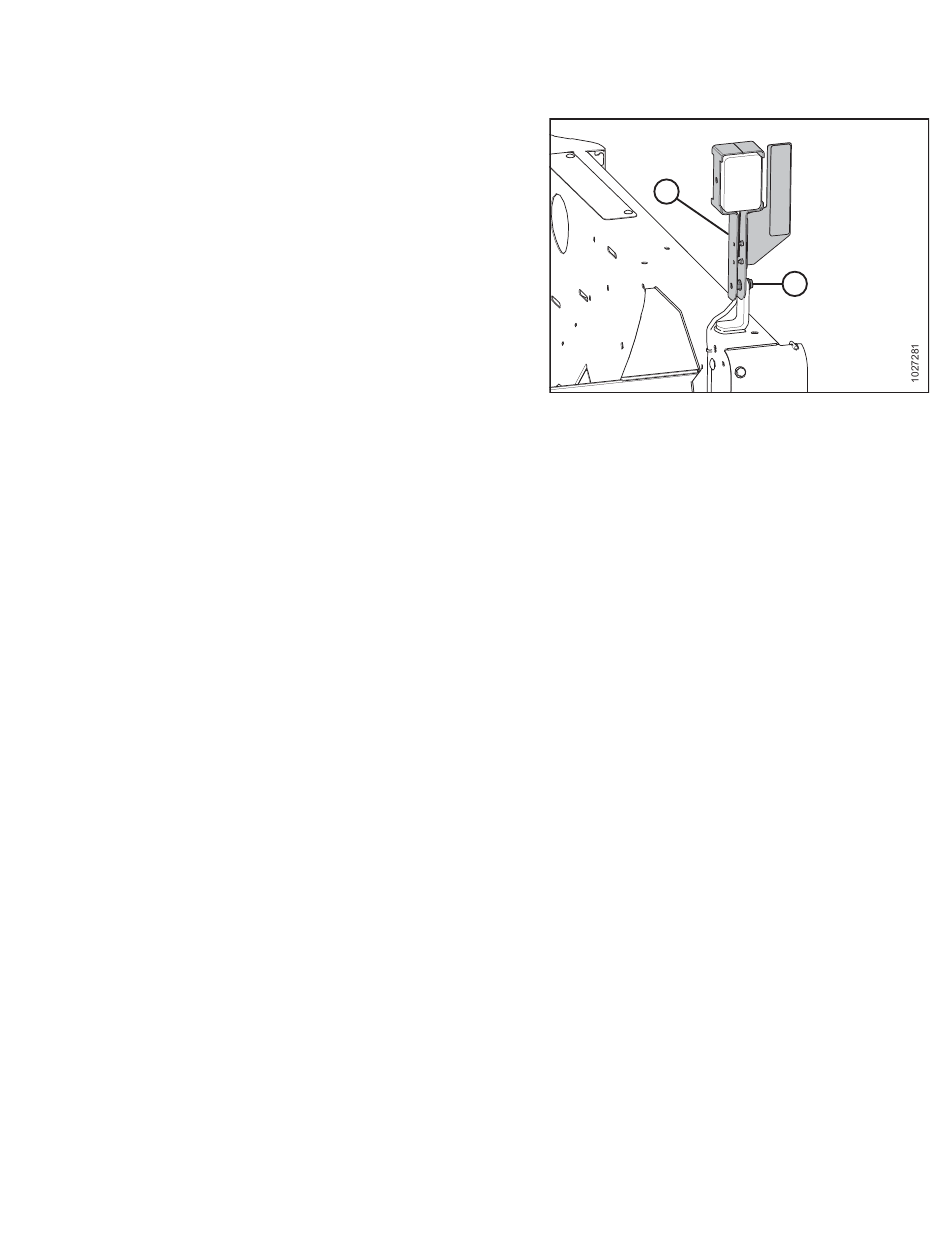

Figure 3.26: Amber Hazard Light
