5.2 Checking Auger Stripper Bar Clearance

1. Check for signs of auger flighting (A) rubbing stripper
bars (B) after run-up.
2. Check clearance between auger flighting (A) and
stripper bars (B).
NOTE:
The auger flighting (A) should clear the stripper bars (B) on
the auger pan by approximately 1–4 mm (1/32–5/32 in.).
Shimming the stripper bars may be required.
214805
PERFORMING PREDELIVERY CHECKS

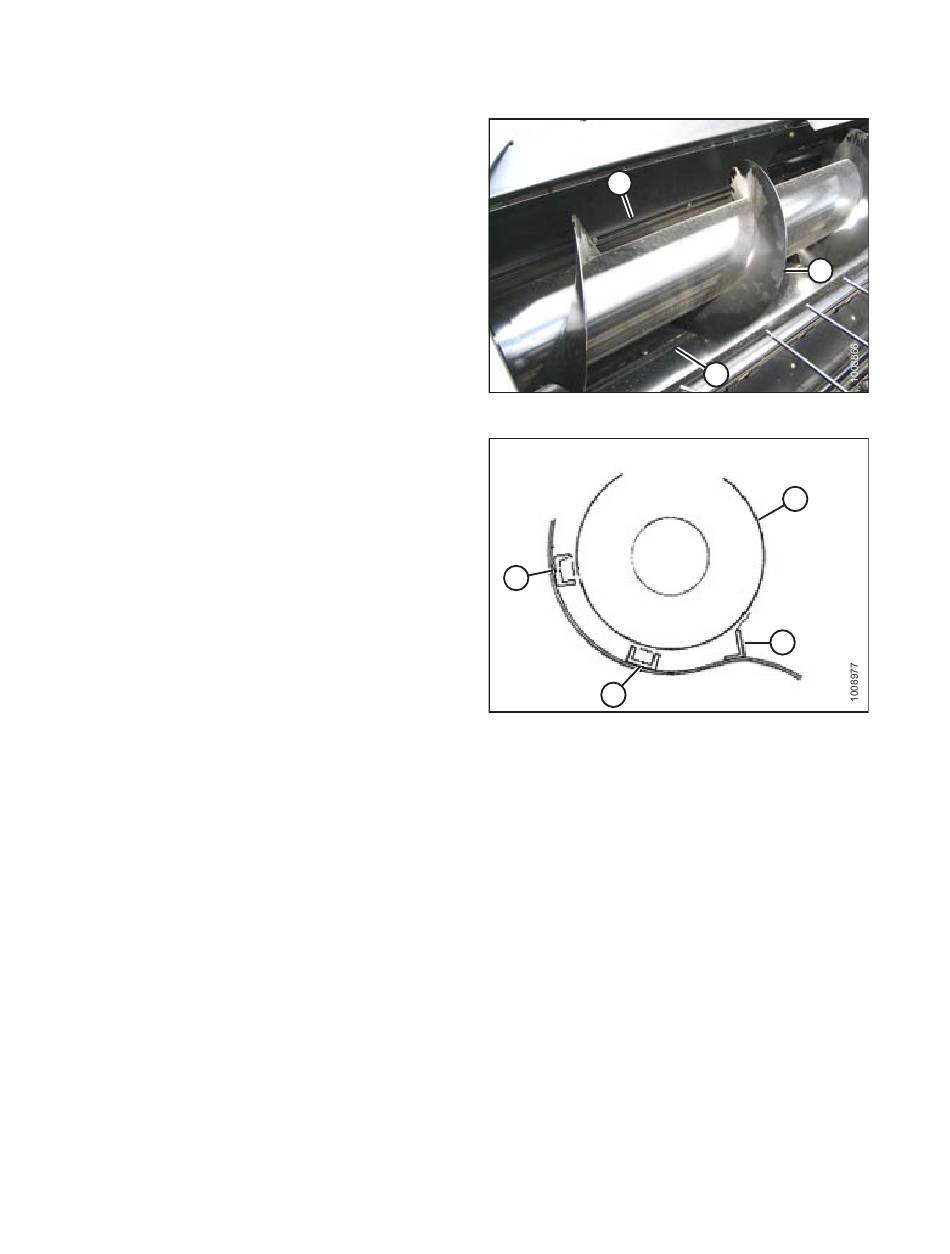

Figure 5.3: Auger
Figure 5.4: End View Diagram Showing Auger and
Stripper Bars
