Assembly instructions
Change circuit board – motor control Aquatec

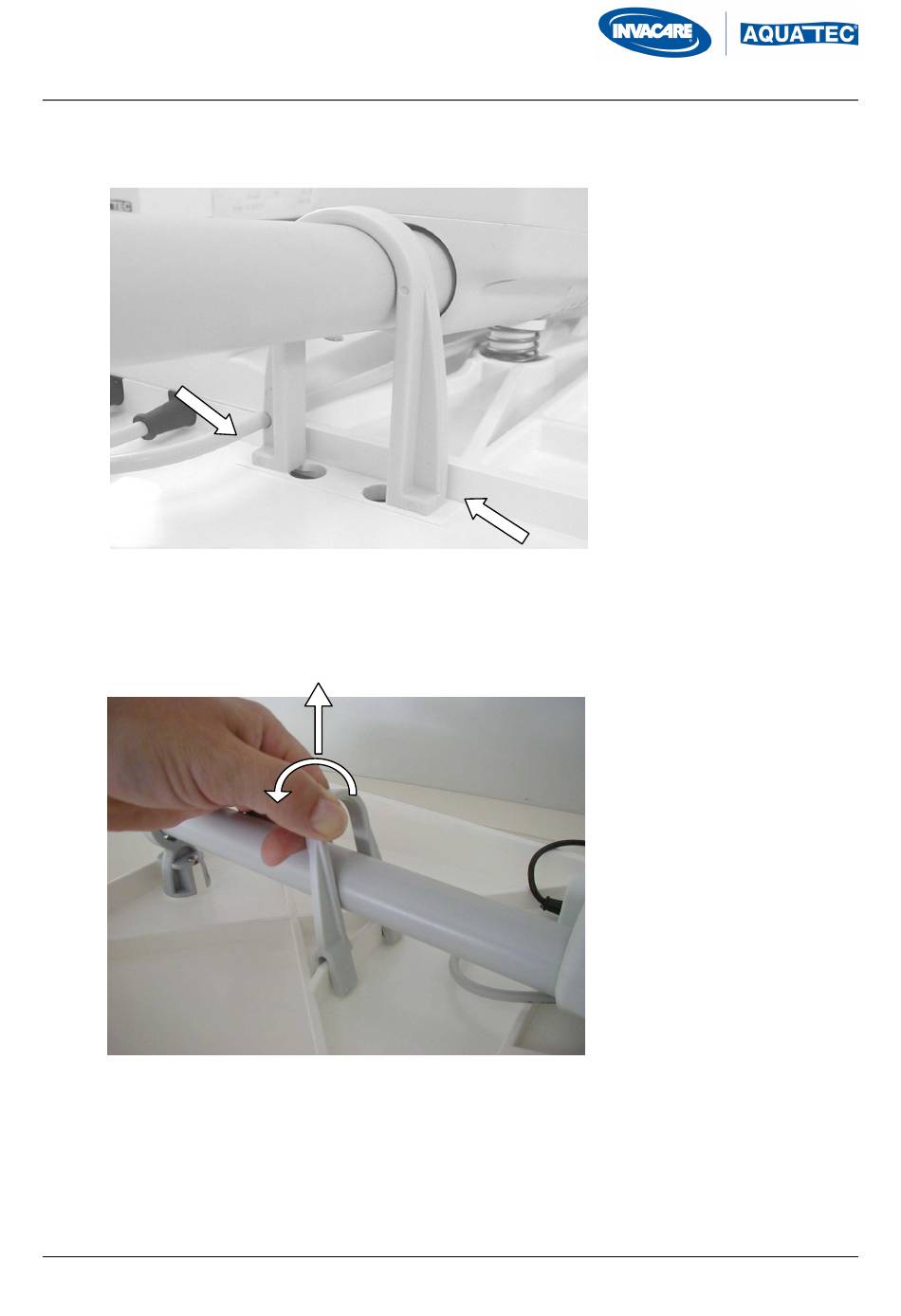

2. Remove the bow from the backrest by pressing its legs and fold up the actuator.
from serial no. 900732
1. Remove the bow from the backrest by tilting and pulling upwards.
2. Release the actuator tube from the spindle catch and fold up the actuator.
Status: 01.12.06 / Marketing
15980 Change circuit board – motor conrol Beluga
®
Beluga
page 2 of 4 V/Allgemein/Montage/Montageanleitungen/Englisch
Beluga/Change circuit board – motor control Beluga
