Assembly Instructions
Change of actuator Aquatec
Please read the assembly instructions carefully before you start to work!
A.

REPAIR ELEMENTS

1.
Actuator Aquatec
2.
Motor bolt (order no. 14468)
3.
Assembly instructions (4 pages)
B.

TOOLS

1.
Phillips screw driver size no. 1
2.
Screw driver
3.
Pliers
C.

PREPARATION

Place the Aquatec
D.

DISMANTLING

1.
Push the holder down, away from the motor until it loosens.
Status: 01.12.06 / Marketing
1470111 Change actuator Beluga
®
Beluga
®
Beluga (order no. 15828) incl. pulley assembly
®
Beluga in a folded up position on a table.
Page 1 of 4
V/Allgemein/Montage/Montageanleitungen/Englisch
Beluga/Change actuator Beluga

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Beluga and is the answer not in the manual?

Questions and answers

Related Manuals for Aquatec Beluga

Summary of Contents for Aquatec Beluga

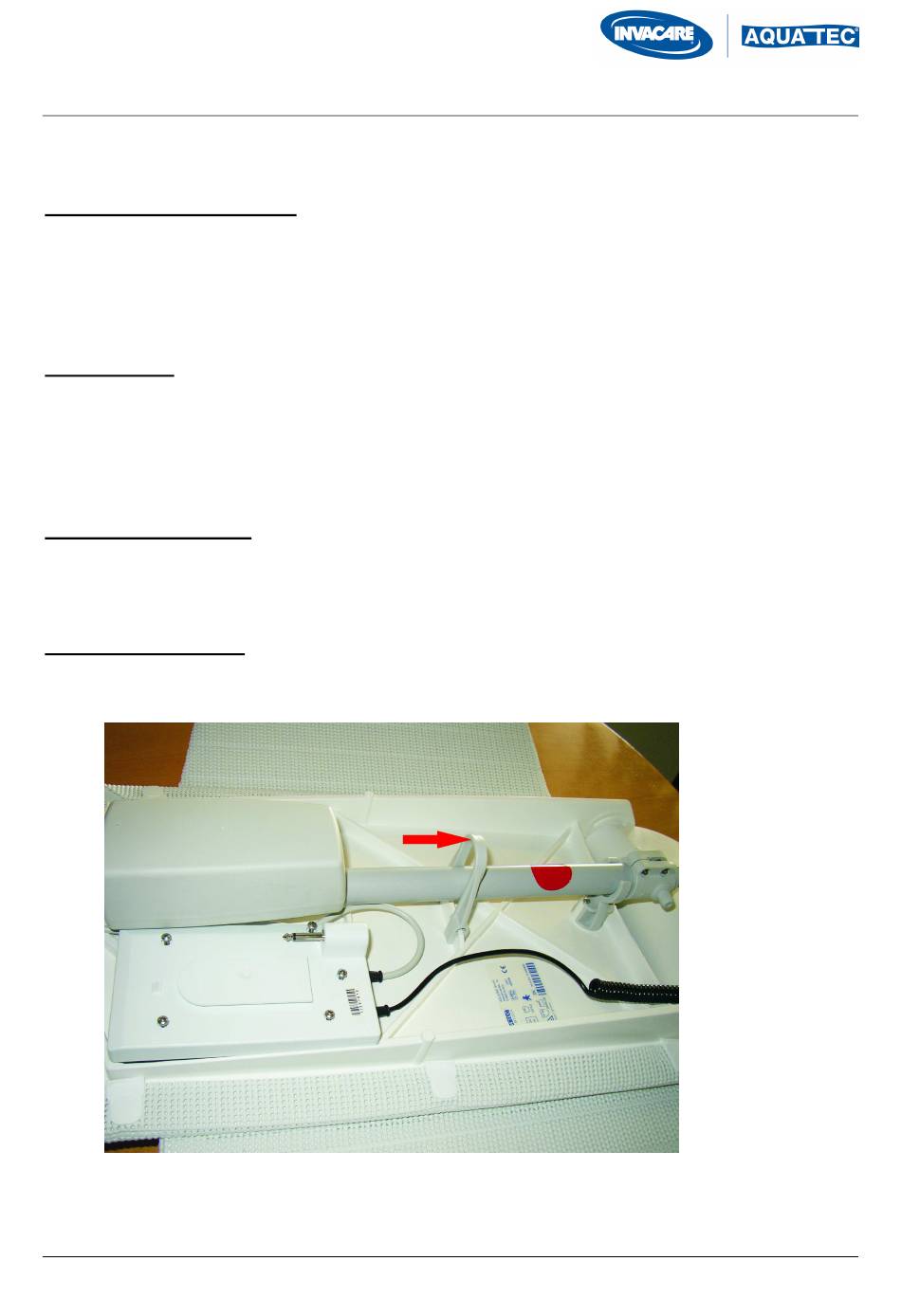

  • Page 1 Phillips screw driver size no. 1 Screw driver Pliers PREPARATION ® Place the Aquatec Beluga in a folded up position on a table. DISMANTLING Push the holder down, away from the motor until it loosens. Status: 01.12.06 / Marketing Page 1 of 4 V/Allgemein/Montage/Montageanleitungen/Englisch...
  • Page 2 Remove the lid and the gasket carefully and unplug both motor cable plugs with the pliers from the circuit board. Put the lid and the gasket aside! Status: 01.12.06 / Marketing Page 2 of 4 V/Allgemein/Montage/Montageanleitungen/Englisch Beluga/Change actuator Beluga 1470111 Change actuator Beluga...
  • Page 3 Screw the lid on but please do not strip the screws! Put the new actuator in its position on the backrest. Now put in the new motor bolt until it is engaged. Status: 01.12.06 / Marketing Page 3 of 4 V/Allgemein/Montage/Montageanleitungen/Englisch Beluga/Change actuator Beluga 1470111 Change actuator Beluga...
  • Page 4 Push the actuator in the spindle catch. Make sure that the spring under the actuator is in its correct position. Hold the holder vertically to the actuator and press it carefully downwards until it is engaged. Status: 01.12.06 / Marketing Page 4 of 4 V/Allgemein/Montage/Montageanleitungen/Englisch Beluga/Change actuator Beluga 1470111 Change actuator Beluga...
