RC/FC Series Installation, Operation, and Maintenance Manual

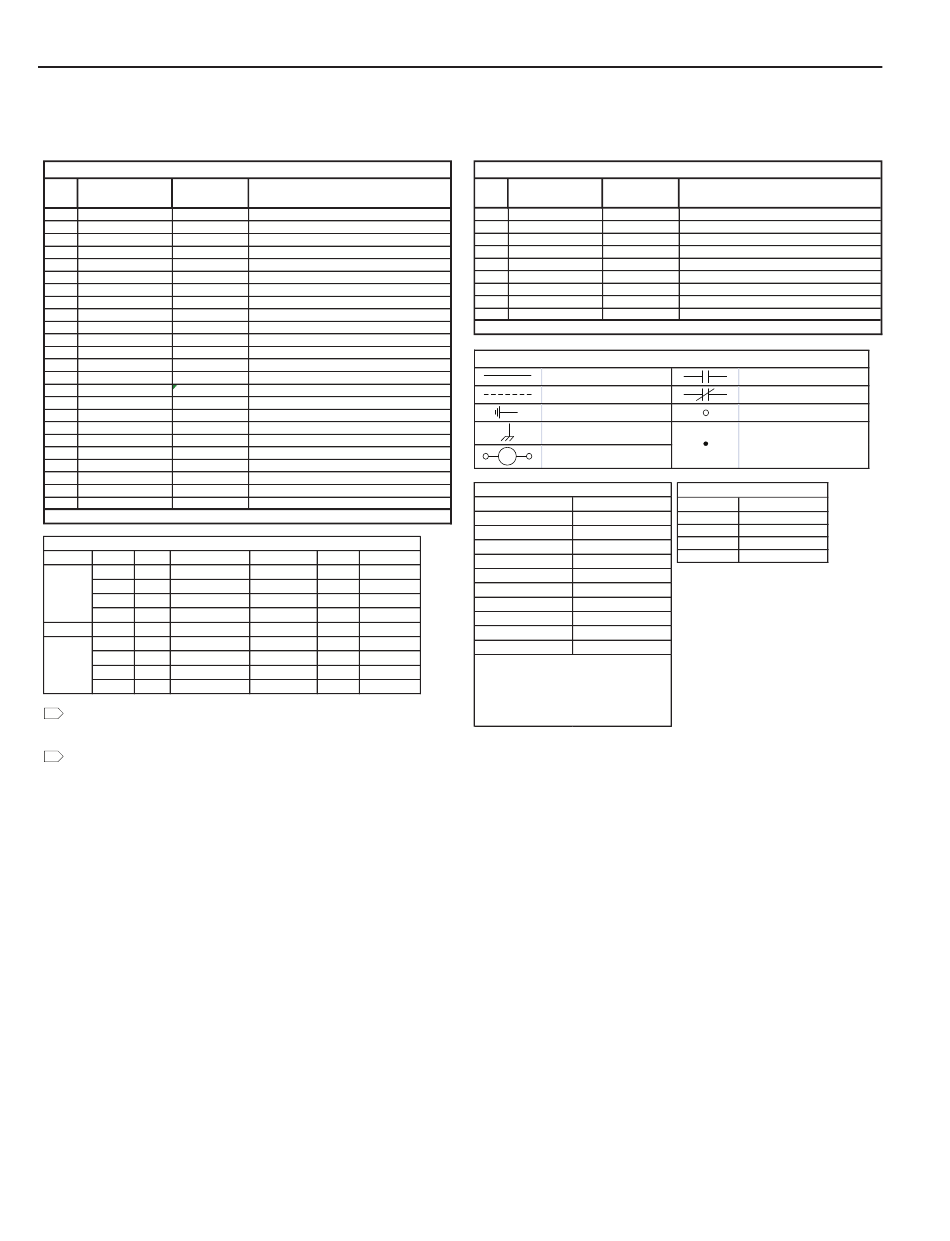

Figure 12: Example Electrical Wiring Diagram, Cont.
LEGEND - ITEMS INSIDE CONTROL PANEL
FUNCTIONAL
ITEM LINE NUMBER
DESIGNATION
104 CC1 110
105 CC1-A1, CC1-A2 #
107 MSP-CC1 1
108 CC2 123
109 CC2-A1, CC2-A2 #
111 MSP-CC2 11
118 EGB 4
119 F1, F2, F3 59, 60, 61
120 CB 71
122 MSP-OF1 22
123 MSP-OF2 26
126 OF1VFD 22, 25
129 MDC1 214
130 MRC1 202
131 PDB 1, 2, 3
132 PM 59, 71
133 RHR 156
135 T1 62, 67
136 T2 200
137 TB1 Sheet 2-5
138 TB2 71
139 TB3 204, 216
140 TB-A Sheet 5
152 CR1 112
# SEE LINE NUMBER TO THE RIGHT OF CONTACTOR COIL ON WIRING DIAGRAM.
FUSE TABLE
FUSE NO. CLASS VAC AMPS-208/230V
CC 600 3
CC 600 2
F1, F3
CC 600 2
CC 600 1.5
F2, F9, F10 CC 600 1
CC 600 16
CC 600 10
CB
CC 600 10
CC 600 6
1
FIELD POWER SUPPLY 208/230/460/575-3-60. MINIMUM CIRCUIT AMPACITY AND
MAXIMUM SIZE AND TYPE OF BRANCH-CIRCUIT SHORT-CIRCUIT AND GROUND-FAULT
PROTECTION PER UNIT RATING PLATE. PROVIDE DISCONNECTING MEANS AS REQUIRED.
2 TYPICAL MOTORS AND COMPRESSORS SHOWN. SEE CONNECTION DIAGRAM ON MOTOR
OR COMPRESSOR FOR ACTUAL WIRING DETAIL.
Page 40 of 80
DESCRIPTION
Compressor Contactor no. 1
"CC1" Auxiliary Contact no. 1 and 2
Motor Starter Protection-"CC1"
Compressor Contactor no. 2
"CC2" Auxiliary Contact no. 1 and 2
Motor Starter Protection-"CC2"
Equipment Grounding Bar
Fusing-See Fuse Table on this sheet
Circuit Breaker-See Fuse Table on this sheet
Motor Starter Protection-Outdoor Fan no. 1
Motor Starter Protection-Outdoor Fan no. 2
Outdoor Fan Variable Frequency Drive no. 1
Modulating Discharge-Line Controller no. 1
Modulating Reheat Controller no. 1
Power Distribution Block
Power/Phase Monitor
Reheat Relay
Control Transformer no. 1
Control Transformer no. 2
Terminal Board no. 1
Terminal Board no. 2
Terminal Board no. 3
Terminal Board no. -A
Compressor Relay no. 1
AMPS-460V XFMR TIME DELAY
2 350VA YES
1.5 250VA YES
1.5 200VA YES
3/4 150VA YES
1 N/A YES
16 350VA YES
10 250VA YES
10 200VA YES
6 150VA YES
LEGEND - ITEMS OUTSIDE CONTROL PANEL
FUNCTIONAL
ITEM LINE NUMBER
DESIGNATION
101 BOS1 132
102 CCH1 4
103 CM1 2
104 CM2 12
105 HP1 110
106 LP1 265
107 LLS1 144
108 OFM1 23
109 OFM2 27
# SEE LINE NUMBER TO THE RIGHT OF CONTACTOR COIL ON WIRING DIAGRAM.
SYMBOL LEGEND
FACTORY W R I N I G
FIELD W R I N I G
EARTH G R O U N D
CHASSIS (PANEL) GROUND
COIL
WIRE COLOR LEGEND
ABBREVIATION COLOR
BK BLACK
BL BLUE
BR BROWN
G GREEN
O ORANGE
PK PINK
PR PURPLE
R RED
W WHITE
Y YELLOW
NOTE: NUMBER PLACED AFTER DASH
FOLLOWING COLOR CODE INDICATES WIRE
GAGE. EX. - BK-12 IS A BLACK, 12 AWG WIRE.
NO NUMBER AFTER COLOR CODE INDICATES 18
AWG WIRE. EX. - BK IS A BLACK 18 AWG WIRE.
DESCRIPTION
Bleed-Off Solenoid no. 1
Compressor Crankcase Heater No. 1
Compressor Motor No. 1
Compressor Motor No. 2
High Pressure Switch No. 1
Low Pressure Switch No. 1
Liquid Line Solenoid no. 1
Outdoor Fan Motor No. 1
Outdoor Fan Motor No. 2
N O R M A L Y L OPEN CONTACTS
N O R M A L Y L L C O E S D CONTACTS
D I E N T F I A I B E L TERMINAL
NON-IDENTIFIABLE TERMINAL,
OTHER WIRE JUNCTIONS,
INCLUDING SCHEMATIC
24 Volt Class 2 Minimum Wire Size
Wire Size Maxium Run
18 AWG 50 Feet
16 AWG 75 Feet
14 AWG 100/125 Feet
14 AWG 150/200 Feet
