Steps to Program and Install a NETCOM6P
The NETCOM6P plugs directly into a PC109x or higher control board. Please note that this
configuration only supports a single panel communication bus.
To program the NETCOM6P, use a direct serial connection via the RS-232 (COM4) terminal
block on the ACU control board as instructed.
1.
Touch the earth ground lug inside the ACU metal enclosure to discharge body static.
2.
Disconnect the ACU control board from the power.
3.

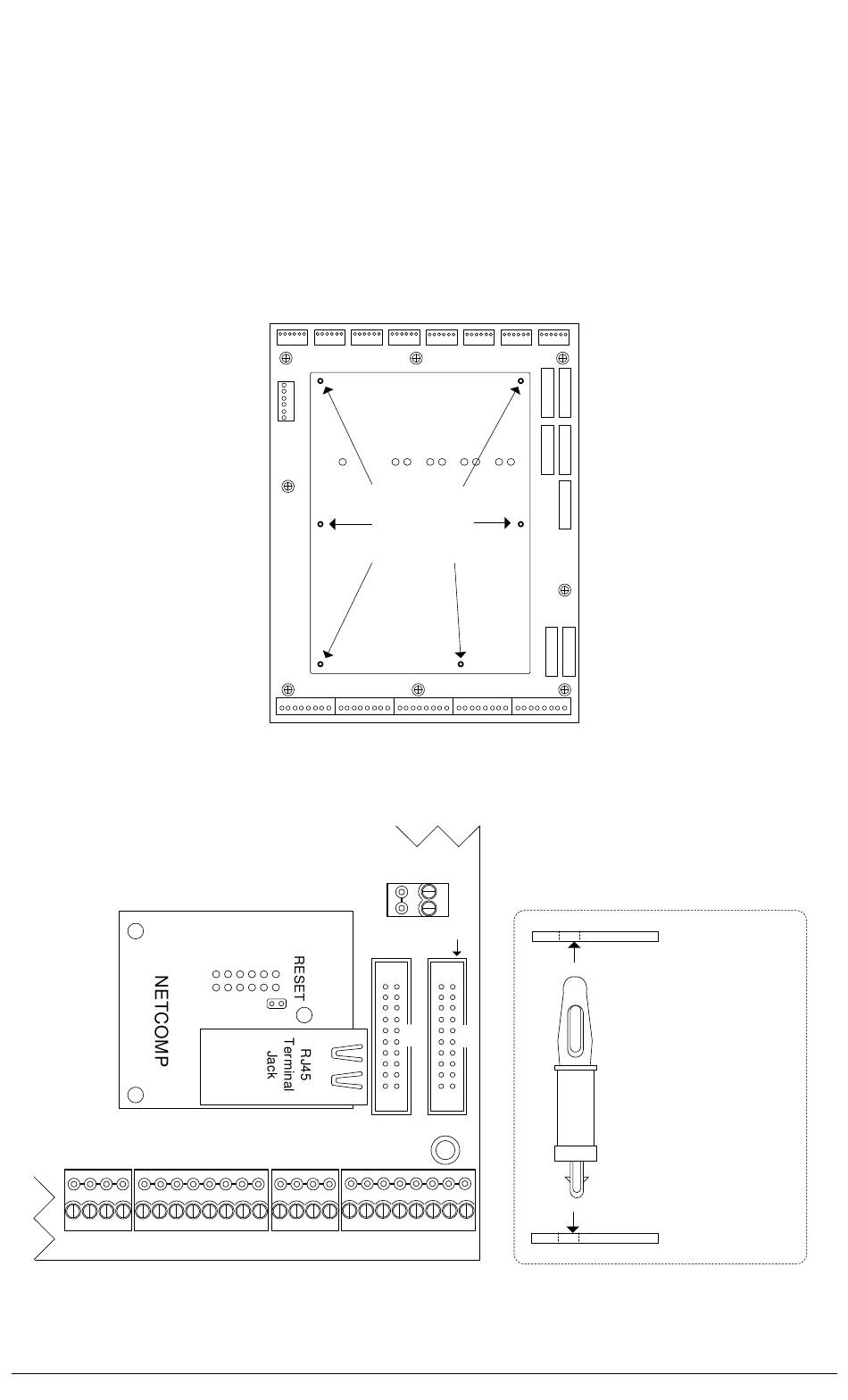

Using a #4 Phillips screwdriver, unfasten the 6 screws holding the ACU protective
cover. Remove the cover and set it aside with the six screws.
4.
Mount the NETCOM6P into M1 in the correct orientation as shown below.
NETCOMP plugs into M1 on
Common
AUX Inputs - D
KI-00255E-03-12
NETCOM6P/ACU RN (Encrypted) Installation Guide
PC109x
control board.
Common
Use # 4
Phillips
screwdriver
to remove
screws.
KI-00251E-01-14
IOCB (COM1)
CPB/CB MODULE
(COM4)
AUX Inputs - E
NETCOM2P
Standoff
- correct mounting
orientation
Control Board
Continued on the next page...
7
