NETCOM6P/Control Board Operational Connection
Figure 7 illustrates NETCOM6P operating connections and jumper settings when mounted
on a PC109x or higher control board. This configuration only supports a single control
board communication bus.

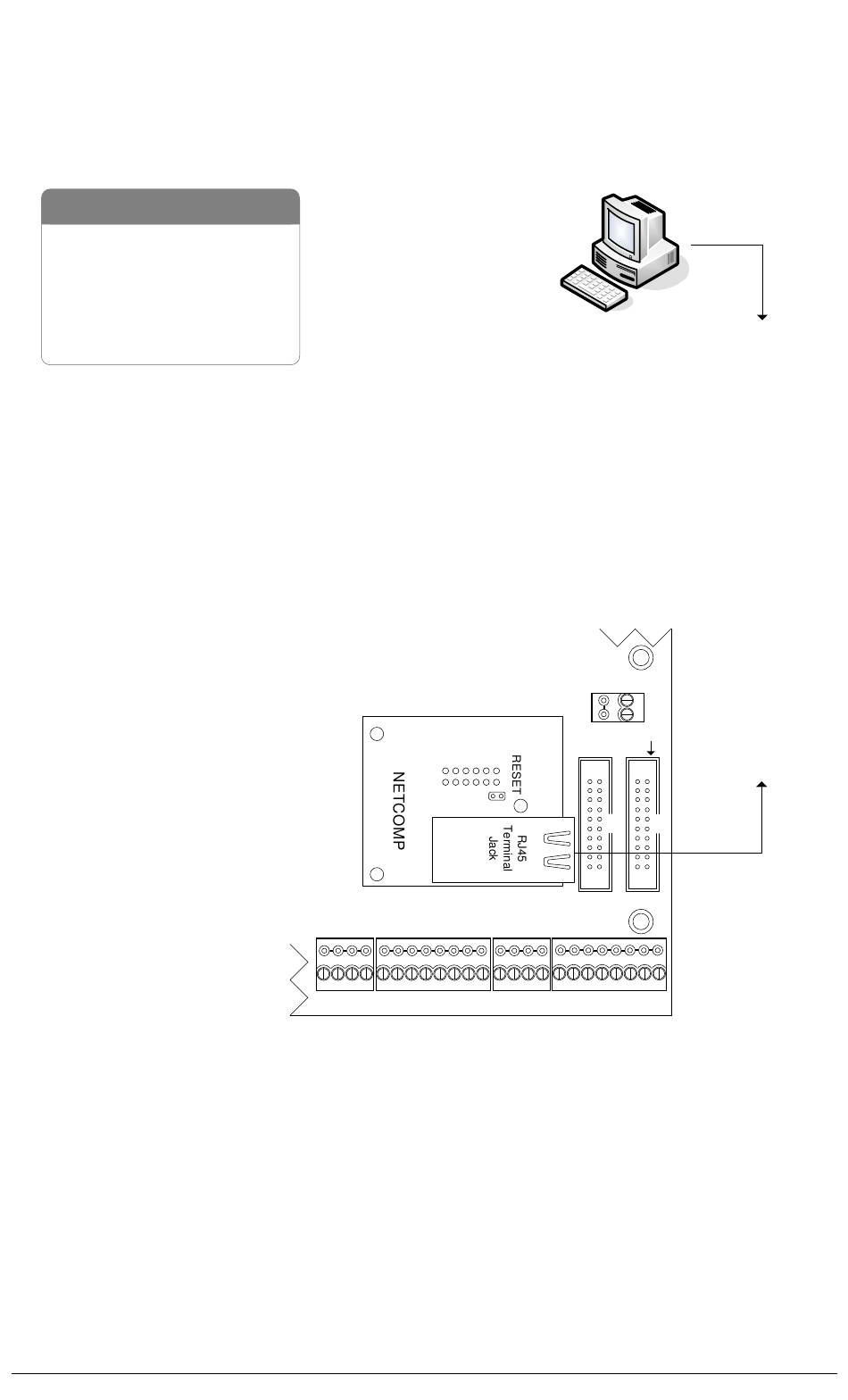

Figure 7 - NETCOM6P/PC109x (or higher) ACU Control Board
Parts List
- PC
- 10/100 Base-T Cable
- Control Board
- NETCOM2P or NETCOM6P
J16
Pin F = ON
Pin G = OFF
Or
S2
DIP switch 7 = ON
DIP switch 8 = OFF
Current Draw
ACU + NETCOMP = 270 mA
KI-00161E-04-13
Keyscan Inc. A Member of the Kaba Group
Control Board
(PC 109x)
Cut view with
ACU protective
cover removed.
NETCOMP plugs into M1 on
control board.
Common AUX Inputs - D
Host PC with
Communication Manager
IOCB (COM1)
RX
TX
CPB/CB MODULE
(COM4)
Common AUX Inputs - E
to network
to network
10 or 100
Base-T
