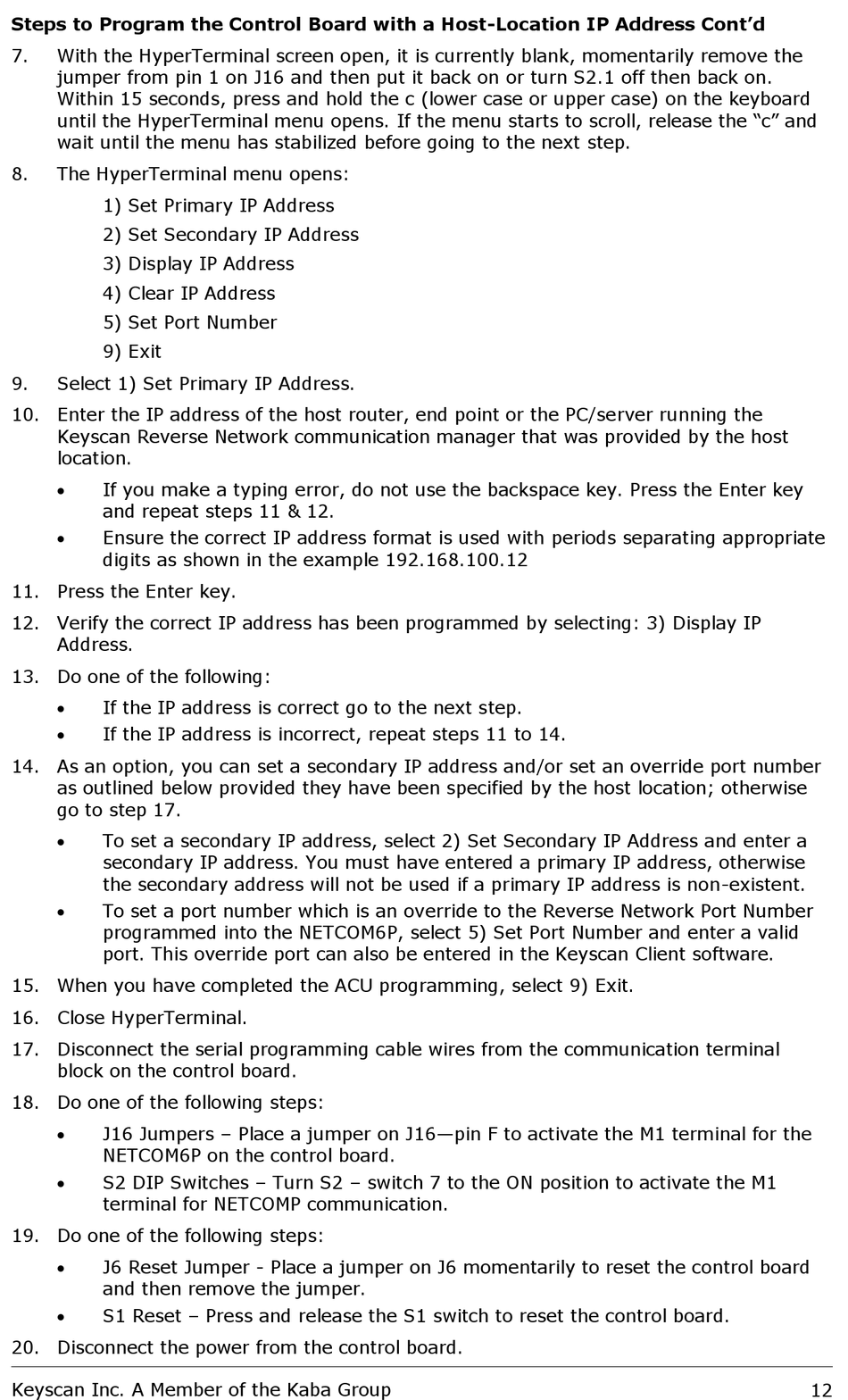

Steps to Program the Control Board with a Host-Location IP Address Cont'd
7. With the HyperTerminal screen open, it is currently blank, momentarily remove the
jumper from pin 1 on J16 and then put it back on or turn S2.1 off then back on.
Within 15 seconds, press and hold the c (lower case or upper case) on the keyboard
until the HyperTerminal menu opens. If the menu starts to scroll, release the "c" and
wait until the menu has stabilized before going to the next step.
8. The HyperTerminal menu opens:
1) Set Primary IP Address
2) Set Secondary IP Address
3) Display IP Address
4) Clear IP Address
5) Set Port Number
9) Exit
9. Select 1) Set Primary IP Address.
10. Enter the IP address of the host router, end point or the PC/server running the
Keyscan Reverse Network communication manager that was provided by the host
location.
 If you make a typing error, do not use the backspace key. Press the Enter key
and repeat steps 11 & 12.
 Ensure the correct IP address format is used with periods separating appropriate
digits as shown in the example 192.168.100.12
11. Press the Enter key.
12. Verify the correct IP address has been programmed by selecting: 3) Display IP
Address.
13. Do one of the following:
 If the IP address is correct go to the next step.
 If the IP address is incorrect, repeat steps 11 to 14.
14. As an option, you can set a secondary IP address and/or set an override port number
as outlined below provided they have been specified by the host location; otherwise
go to step 17.
 To set a secondary IP address, select 2) Set Secondary IP Address and enter a
secondary IP address. You must have entered a primary IP address, otherwise
the secondary address will not be used if a primary IP address is non-existent.
 To set a port number which is an override to the Reverse Network Port Number
programmed into the NETCOM6P, select 5) Set Port Number and enter a valid
port. This override port can also be entered in the Keyscan Client software.
15. When you have completed the ACU programming, select 9) Exit.
16. Close HyperTerminal.
17. Disconnect the serial programming cable wires from the communication terminal
block on the control board.
18. Do one of the following steps:
 J16 Jumpers – Place a jumper on J16—pin F to activate the M1 terminal for the
NETCOM6P on the control board.
 S2 DIP Switches – Turn S2 – switch 7 to the ON position to activate the M1
terminal for NETCOMP communication.
19. Do one of the following steps:
 J6 Reset Jumper - Place a jumper on J6 momentarily to reset the control board
and then remove the jumper.
 S1 Reset – Press and release the S1 switch to reset the control board.
20. Disconnect the power from the control board.
