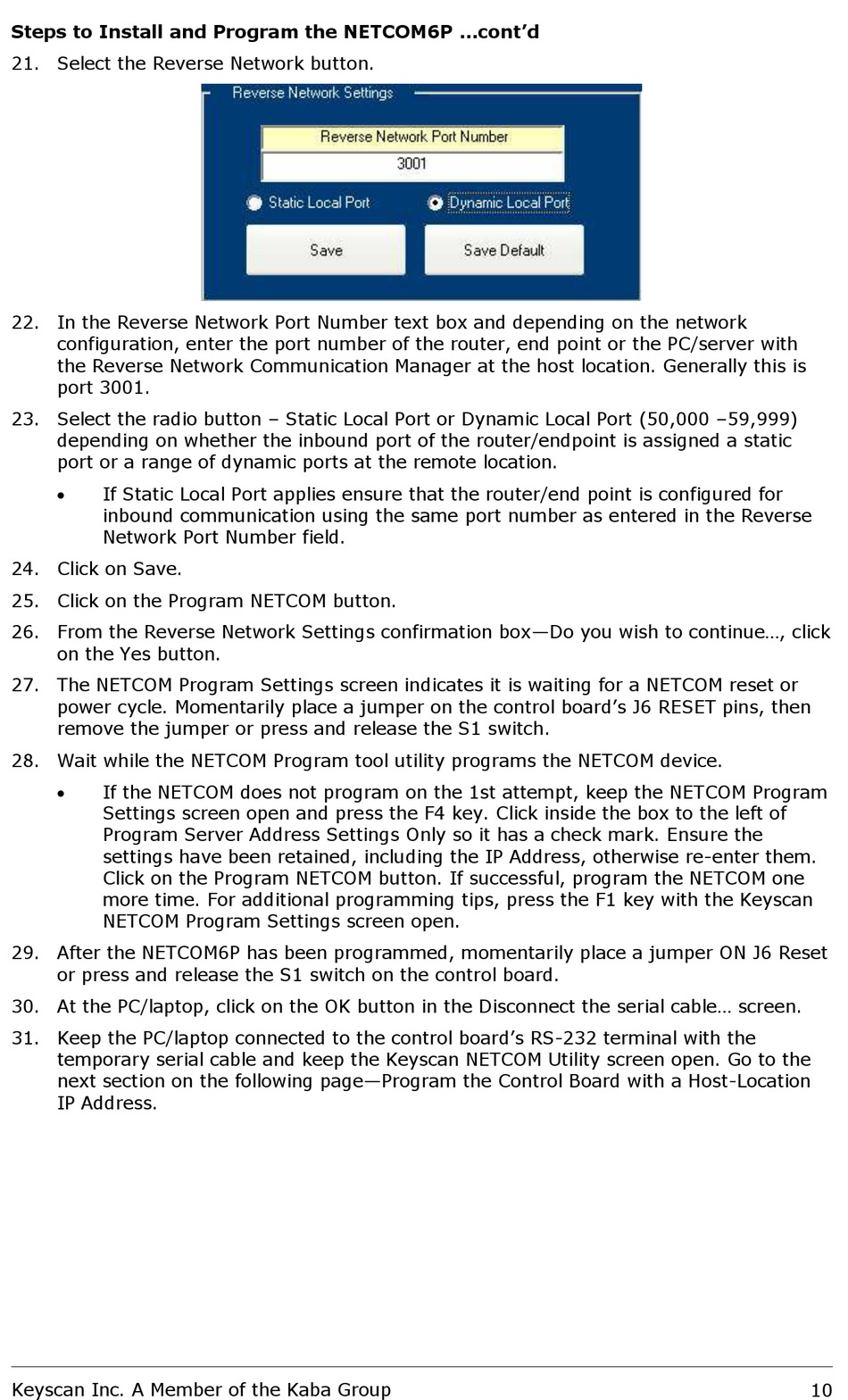

Keyscan NETCOM6P Installation Manual page 10

Steps to Install and Program the NETCOM6P ...cont'd
21. Select the Reverse Network button.
22. In the Reverse Network Port Number text box and depending on the network
configuration, enter the port number of the router, end point or the PC/server with
the Reverse Network Communication Manager at the host location. Generally this is
port 3001.
23. Select the radio button – Static Local Port or Dynamic Local Port (50,000 –59,999)
depending on whether the inbound port of the router/endpoint is assigned a static
port or a range of dynamic ports at the remote location.
 If Static Local Port applies ensure that the router/end point is configured for
inbound communication using the same port number as entered in the Reverse
Network Port Number field.
24. Click on Save.
25. Click on the Program NETCOM button.
26. From the Reverse Network Settings confirmation box—Do you wish to continue..., click
on the Yes button.
27. The NETCOM Program Settings screen indicates it is waiting for a NETCOM reset or
power cycle. Momentarily place a jumper on the control board's J6 RESET pins, then
remove the jumper or press and release the S1 switch.
28. Wait while the NETCOM Program tool utility programs the NETCOM device.
 If the NETCOM does not program on the 1st attempt, keep the NETCOM Program
Settings screen open and press the F4 key. Click inside the box to the left of
Program Server Address Settings Only so it has a check mark. Ensure the
settings have been retained, including the IP Address, otherwise re-enter them.
Click on the Program NETCOM button. If successful, program the NETCOM one
more time. For additional programming tips, press the F1 key with the Keyscan
NETCOM Program Settings screen open.
29. After the NETCOM6P has been programmed, momentarily place a jumper ON J6 Reset
or press and release the S1 switch on the control board.
30. At the PC/laptop, click on the OK button in the Disconnect the serial cable... screen.
31. Keep the PC/laptop connected to the control board's RS-232 terminal with the
temporary serial cable and keep the Keyscan NETCOM Utility screen open. Go to the
next section on the following page—Program the Control Board with a Host-Location
IP Address.
