Set Control Board for Reverse Network
In this set of procedures you will configure the control board for reverse network
communication at one of the following bit rates: 9600 or 57,600.
See the table below for reverse network jumper settings.
Set Reverse Network – Jumper J16 or S2 DIP Switches on Control Board
The table below outlines reverse network configurations for PC109x control boards.
Depending on the PC109x control board version, which either have jumpers at J16 or DIP
switches at S2, refer to the relevant settings.
System Jumper J16 – Reverse Network Settings
Communication
S2 DIP Switches – Reverse Network Settings
Communication
The recommended setting is 57,600.
Steps to Set the Control Board for Reverse Network and Set the Bit Rate
1. Configure the control board for reverse network settings, either the jumpers at J16 or
the DIP switches at S2 as outlined above.
2. Note the bit rate you have selected for the control board. You require this setting
when programming the NETCOM6P.
3. Go to Install NETCOM Program Tool Utility on the next page and follow each set of
setup instructions.
Cut View of CA8500B
System Configuration
Location of J16 is the
same on all CA & EC
KI-00143E-07-11
NETCOM6P/ACU RN (Encrypted) Installation Guide
Bits/Second
9,600
57,600
Bits/Second
9600
57,600

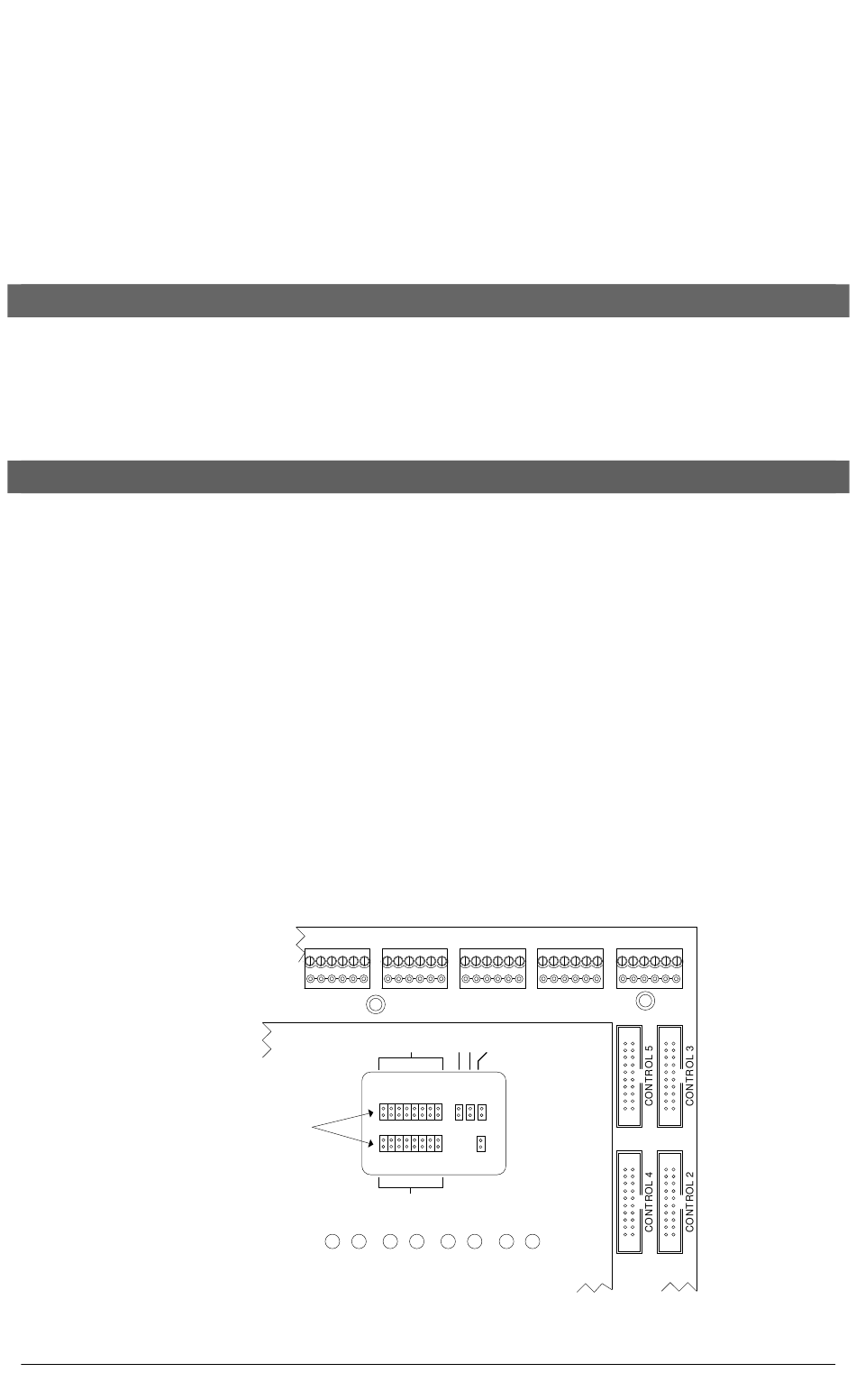

Figure 3 - Location of J16 Jumpers
