StarTech.com RKCOND17HD Quick Start Manual

1-Port VGA/DVI Rackmount LCD Console - 17 in. - 1080p - 1U

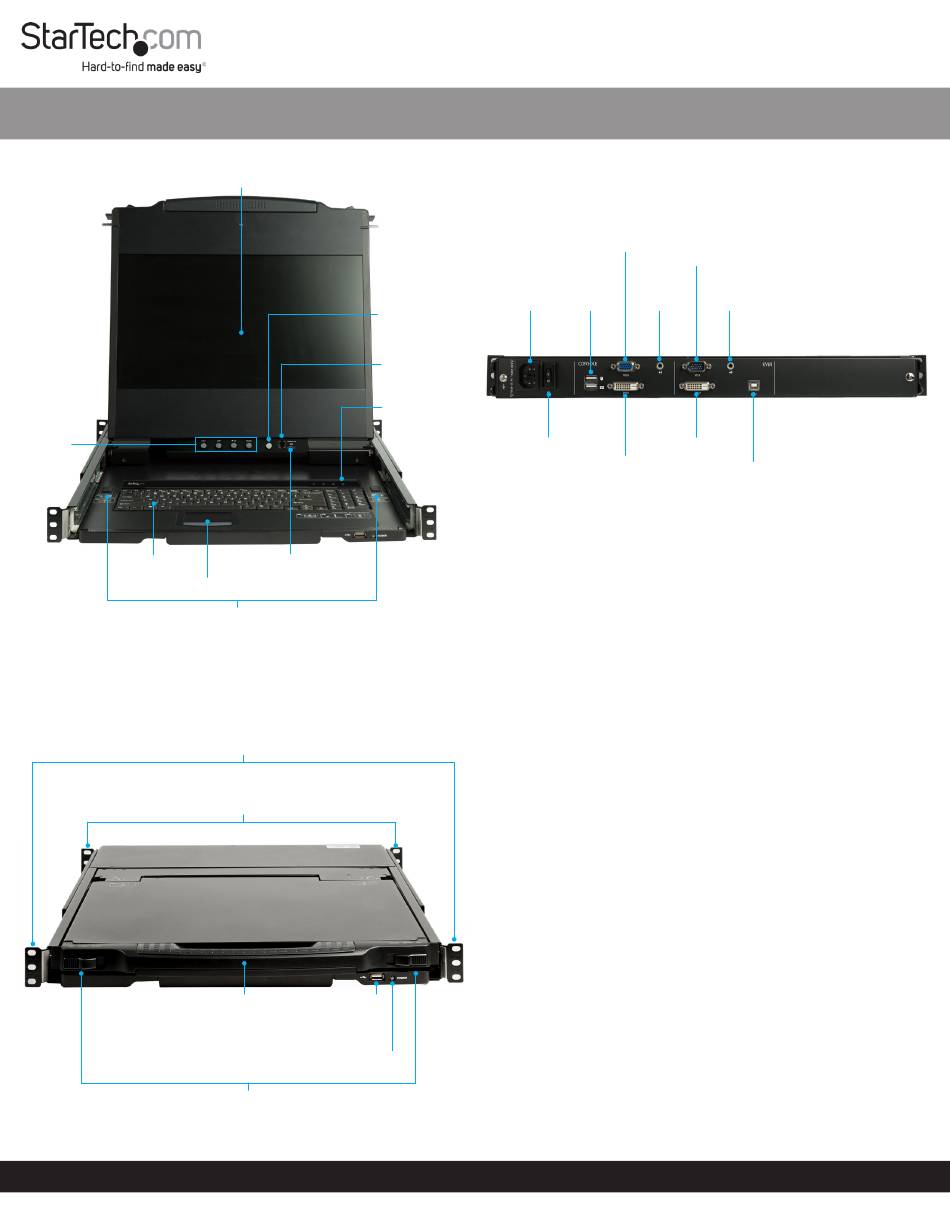

Front View (Open)
LCD
Controls
Keyboard
Touchpad
Front View (Closed)
Front Mounting Brackets
Rear Mounting Brackets
For the latest information, specifications, and support visit www.startech.com/RKCOND17HD.
LCD Module
LCD On / Off
Firmware
Upgrade
Switch
Keyboard
Release
Catches
Upper USB
Handle HID
Port
Power
Module Release
Catches
Rear View
Power
Socket
Button
Firmware
Upgrade
Port
Reset Button
Power Switch

Package Contents

• LCD Console x 1
• Rear Mounting Brackets x 2
• KVM Cables (USB/VGA) x 1
• Audio Cable x 1
• M5 Cage Nuts x 8
• M5 Screws x 8
• Power Cords (NA, JP, UK, EU, ANZ) x 5
• Quick-Start Guide x 1
Requirements
Installation:
• 1U of Rack Space
• Phillips Head Screwdriver x 1
• (Optional) Cage Nut Tool x 1
• AC Electrical Outlet
• Two people are required for hardware installation

Hardware Installation

Standard Rack Mounting

Note: Installation of this product requires at least two people. One
person is required to hold the unit in place. A second person is
required to screw in all of the required fasteners.
1. Select the 1U of Rack Space that you intend to use for installing
this product.
2. Install four M5 Cage Nuts into the front of your rack.
3. Repeat Step 2 for the rear side of your rack.
LED
Note: Ensure that your M5 Cage Nuts are installed in the same 1U
of rack space in both the front and the rear of your rack.
4. While one person holds the RKCOND17HD unit in place, the
Quick-Start Guide
Console KVM
VGA Port VGA
Port
Console KVM
Console
USB HID Audio
Audio
Ports Port
Port
KVM DVI-D
Port
Console
KVM USB Port
DVI-D Port
SKU #: RKCOND17HD
Revision: 05/31/2018
