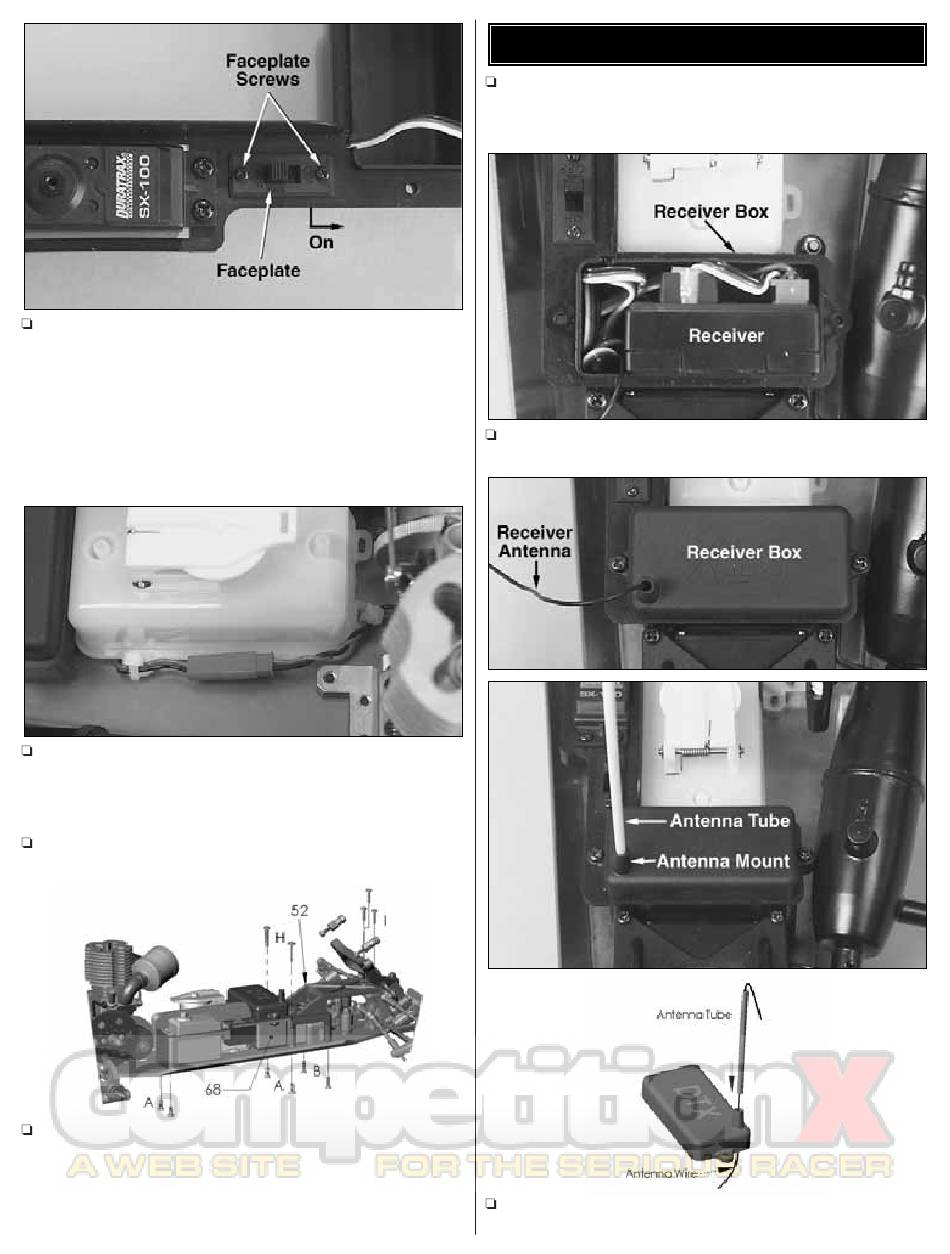

4. Locate the switch that came with your radio system. Remove
the two screws from the face plate of the on/off switch and remove
the face plate. Note which position is "Off" before removing the face
plate. Insert the on/off switch through the bottom of the radio plate.
Then install the face plate over the top of the on/off switch and place
the two screws back through the face plate into the on/off switch.
Note: Make sure the switch is situated so that when the switch
is pushed forward it is in the on position. This will prevent the
switch from shutting off in case of impact.
5. Run the end of the on/off switch that installs into receiver
through the same hole in the receiver box that you just ran the
throttle servo wire through. Connect the other end to the receiver
battery box.
6. Route the steering servo wire through the same hole
in the receiver box as the throttle servo and the on/off switch.
7. Reinstall the receiver box/radio plate onto the chassis using
the (4) 3x10mm flat head machine screws (A) on the bottom. Re-
install the upper brace (52) over the servo and reinstall the (3)
3x8mm pan head self tapping screws (I) and the (2) 3x15mm
socket head screws (H) in the top and (2) 3x10mm flat head self
tapping screws (B) in the bottom.

RECEIVER INSTALLATION

1. Insert the switch, throttle and steering servo plugs into the
receiver. Refer to the radio's instruction manual to determine
which slots to plug each of the servos into.
2.Install the receiver into the receiver box as shown.
3. Route the receiver antenna through the hole in the receiver box
lid (69) as shown in the drawing above. Locate the antenna tube, and
