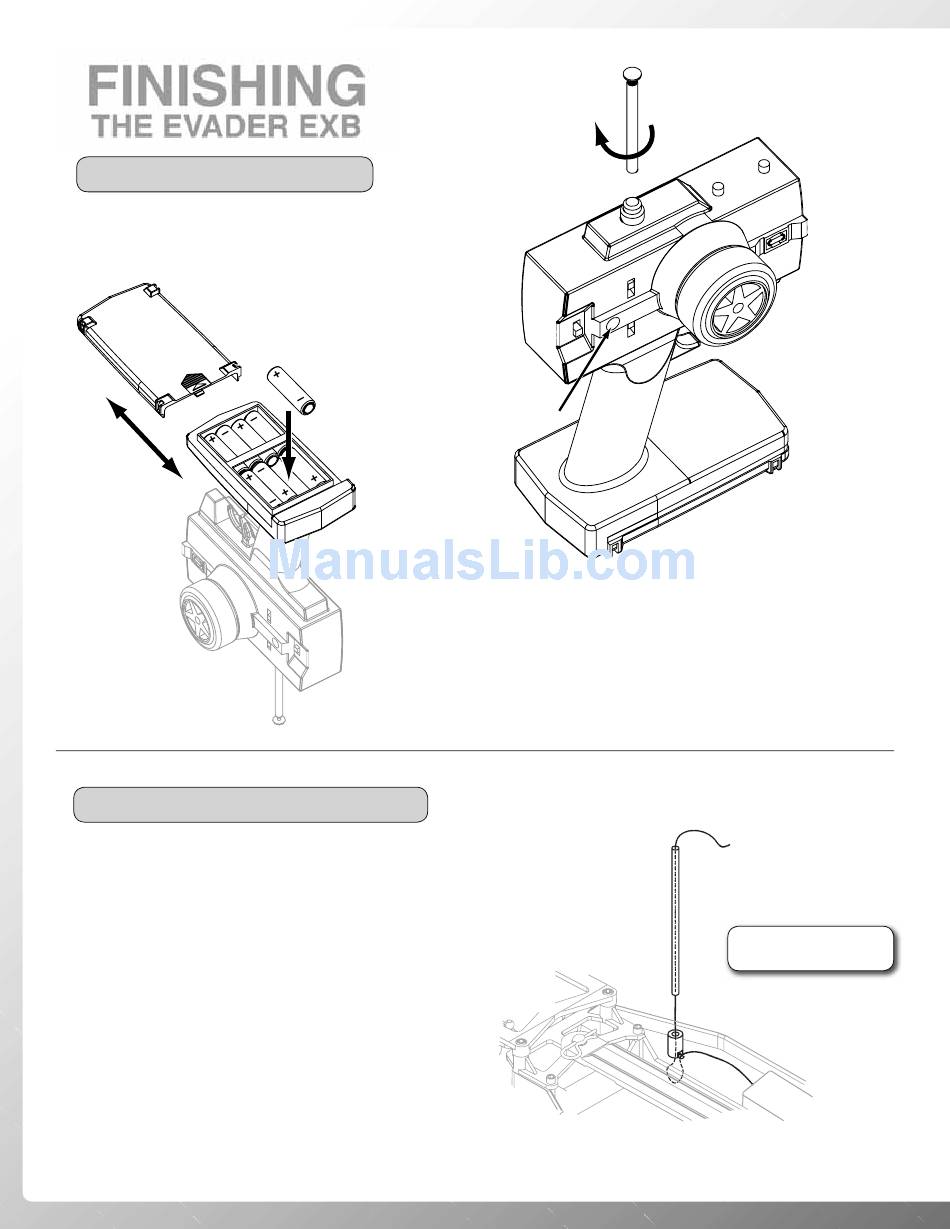

TRANSMITTER PREPARATION

• Slide the batttery tray door off and install
eight "AA" batteries into transmitter,
making sure the polarity is correct.
Battery
Tray Door

RECEIVER ANTENNA INSTALLATION

• Route the receiver antenna through the holes in the
chassis as shown.
• Thread the receiver antenna through the antenna tube.
The antenna will be longer than the antenna tube.
• Press fi t the antenna tube into the hole in the chassis.
• Tip: Run the antenna wire through your fi ngers to
straighten out the kinks before running through the
antenna tube. Also, applying a small amount of soap
and water to the antenna wire will help lubricate the wire
for threading into the antenna tube. Use a piece of tape
to hold the excess antenna wire to the antenna tube.
Battery Light
• Insert the antenna into the top of the transmitter and tighten.
• Turn the transmitter on and check the battery light. If the red light glows
steadily, the batteries have enough voltage. If the red light blinks, the
batteries are low and should be replaced.
4 4
DO NOT CUT THE
X
ANTENNA WIRE!
