Rear Shock Tower, Rear Bulkhead, Rear; Receiver Battery Box; Rear Hub, Rear Axles - Duratrax Nitro Evader BX Assembly And Operation Manual

Rear Shock Tower, Rear Bulkhead, Rear Transmission Plate,

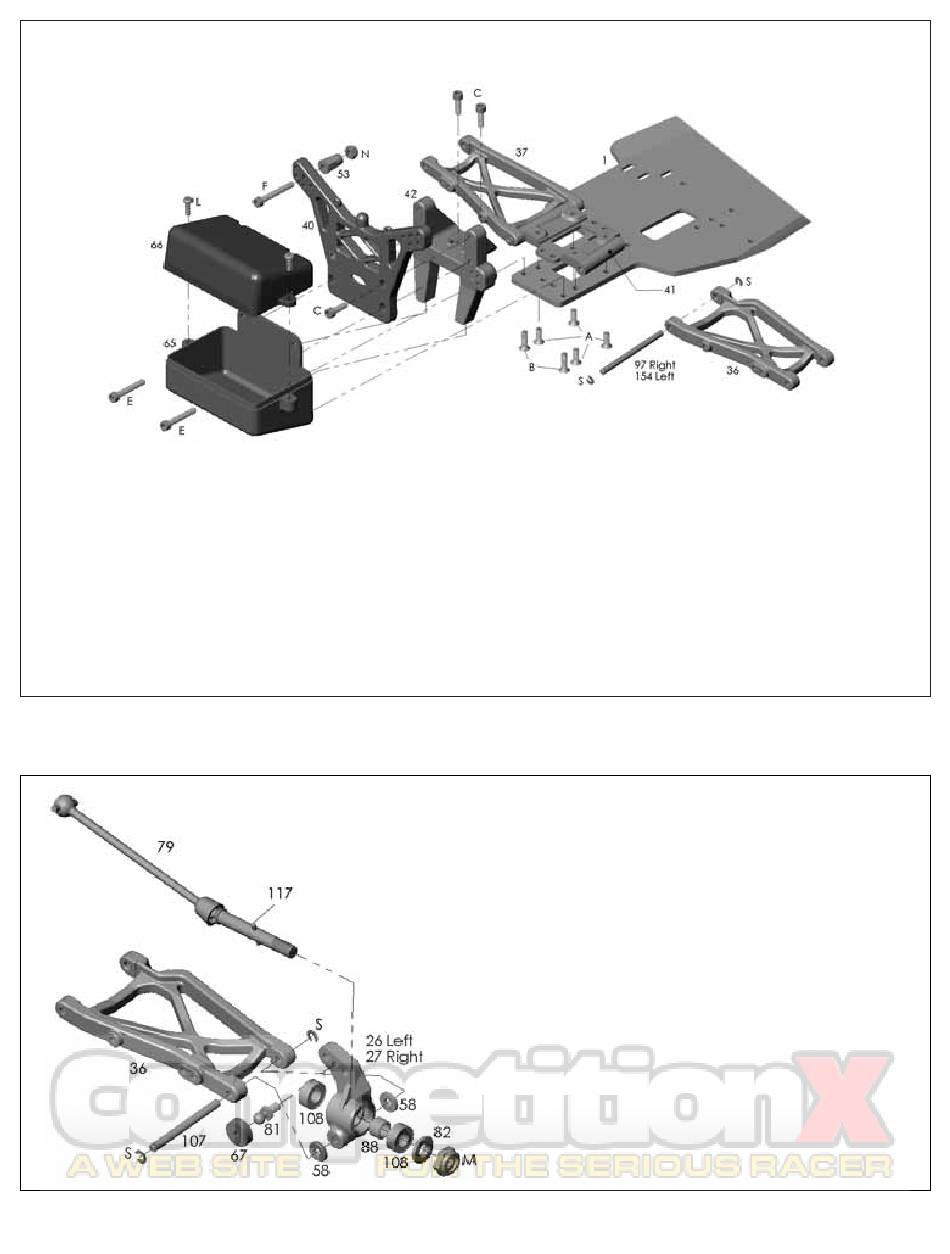

1. Attach the rear suspension plate (41) to the chassis (1) using (4) 3x8mm flat head screws (A).
2. Attach the rear suspension arms (36 & 37) to the rear suspension plate (41) using the inner rear hinge pins (97 & 104).
3. Secure the inner rear hinge pins (97 & 104) in place using (2) 2.5mm e-clips (S).
4. Install (2) ball studs (81) into the appropriate holes in the transmission brace (42). Note: The stock setting is the lower
inner holes. Make sure that the ball studs are in the same hole location on both sides.
5. Install the transmission brace (42) onto the gearbox using (2) 4-40x3/8" socket head screws (C). Note: Do not install
the two screws through the chassis into the rear bulkhead. You must install the receiver battery box bottom first.
6. Attach the top of the rear shock tower (40) to the transmission brace (42) using (2) 4-40x3/8" socket head screws (C).
Note: Make sure the screws pass through the shock tower, chassis and into the rear bulkhead.
7. Attach the receiver battery box bottom (65) to the chassis (1) with (2) 3x10 flat head self tapping screws (B). Also, use
(2) 4-40x3/4" socket head screws (E) to secure the receiver battery box bottom (65) to the rear shock tower (40).
8. Secure the receiver battery cover (66) to the receiver battery bottom (65) using (2) 3x5 pan head screws (L).
Rear Suspension Arm, Receiver Battery Box

Rear Hub, Rear Axles

1. Install axle spacer (88) in the center of each rear hub.
2. Install (2) 5x10mm bearing (108) in both of the rear hubs (26 & 27).
3. Install a ball stud (81) into the center hole of the rear hubs (26 & 27).
4. Place a 3mm plastic spacer (58) on each side of the rear hubs (26
& 27). Secure the rear hubs (26 & 27) to the rear suspension arms
(36 & 37) with the 3mm outer rear hinge pins (107).
5. Secure the outer rear hinge pins (107) with 2.5mm E-clips (S).
6. Install the rear axles (79) through the bearings in the hubs.
7.Slide a rear axle washer (82) onto the axle then install a
2.5x12mm spring pin (117) into the rear axle.
