Assembly Guide; Front Knuckle Arm, Hub Carrier, Axle; Bulkhead, Bulkhead Brace, Front Shock Tower, Front Suspension Arm, Front Bumper - Duratrax Nitro Evader BX Assembly And Operation Manual

The following information has been provided to help maintain and tune the Nitro Evader BX.
1. Attach the front hub carriers (28) to the front suspension arms (38 & 39)
using the outer front hinge pins (95).
2. Install the front axles (91) into the knuckle arms (24 & 25).
3. Install two kingpin spacers (Y) onto each kingpin (94).
4. Insert the knuckle arms (24 & 25) into the front hub carriers (28) and then
secure them in place with the kingpins (94). Note: The king pin spacers go
on the top of the hub carriers.
5. Secure the kingpins (94) in place using 2mm e-clips (R).
6. Install a 3mm set screw (K) into the axle (91) to secure the kingpins (94)
in the axle.
1. Attach the front bulkhead (51) to the chassis by
installing (2) 3x10 flat head self tapping screws (A) into
the (2) rear holes.
2. Secure the bumper (2) and bulkhead (51) onto the
chassis (1) using (2) 3x8mm flat head self tapping
screws (B).
3. Install the front hinge pin brace (50) against the front
of the front bulkhead (51). Then attach and secure the
front suspension arms (38 & 39) to the front bulkhead
(51) using the inner front inner hinge pins (104).
4. Secure the rear of the front inner hinge pin (104) with
a 2.5mm e-clip (S).
5. Secure the front bulkhead brace using 2.5mm e-clips
(S).
6. Attach the front shock tower (49) to the front bulkhead
(51) using (4) 4-40x3/8" socket head screws (C).
7. Secure the front body mount (57) to the front shock
tower (49) using (2) 4-40x3/8" socket head screws (C).
8. Attach the top of the front bulkhead (51) to the upper
plate (52) with (3) 3x10 pan head screws (I).

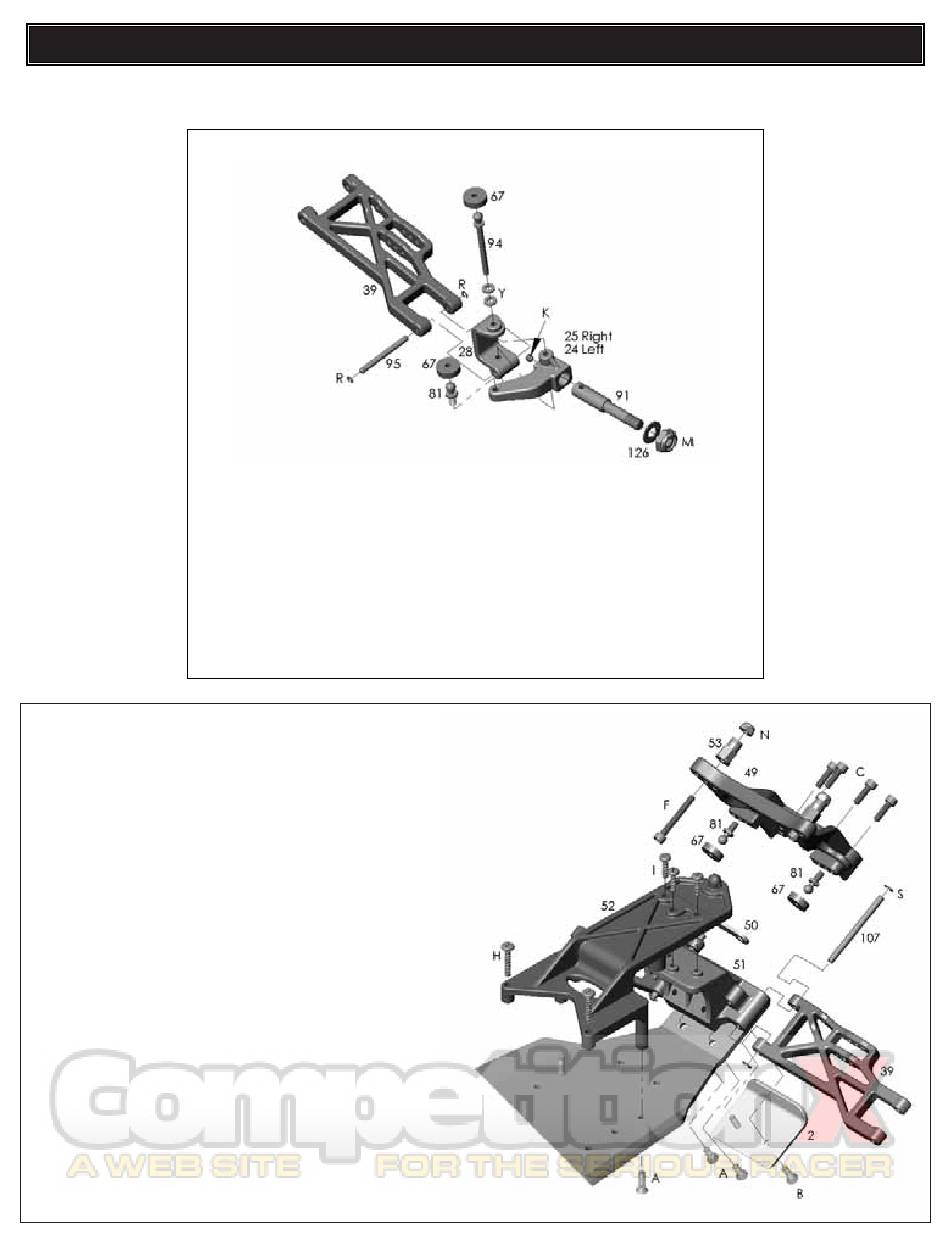

ASSEMBLY GUIDE

Front Knuckle Arm, Hub Carrier, Axle

Bulkhead, Bulkhead Brace, Front Suspension Arm
Front Shock Tower, Front Bumper
13
