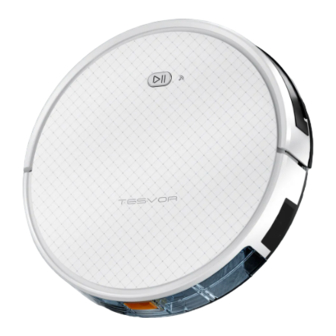

- Page 1 Product Manual...
- Page 3 1.Greetings from Tesvor! Thank you for purchasing Tesvor Robot Vacuum! We hope that our products will bring you an intelligent and convenient lifestyle! If you encounter any problems which cannot be solved by this manual, please contact service@tesvor.com Our products are subject to material, and our company reserves the right to...
- Page 4 1. Welcome 2. Safety Instructions 3. Product Composition 3.1 Components Names 3.2 Product Specifications 4. Instructions 4.1 Remote Control Instructions 4.2 Operating Instructions 5. Product Maintenance 5.1 Side Brush Cleaning Replacement 5.2 Dust Container and Screen Cleaning 5.3 Other Component Maintenance 6.
- Page 5 Please read this instruction carefully and follow this manual. Any operations not following this instruction may cause damage to the product. Safety Precautions Related To The Host and Accessories ! Warning 1. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that my cause undesired...
- Page 6 The Robotic Vacuum Cleaner complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. Caution: To maintain the compliance with the FCC’s RF exposure guideline, install the Robotic Vacuum Cleaner at least 7.9” (20 cm) from ALL persons. The transmitter of this device must not be co-located or operating in conjunction with any other antenna or transmitter.
-
Page 7: Product Composition
Product Composition 3.1 Component Name Robot Vacuum Host Charger Remote Control Power Adapter Cleaning Tools Edge Swipes Extra HEPA filter... - Page 8 Robot Vacuum Host 1-Bumper 2-Control Button 3-Panel 4-Middle Lid Robot Vacuum Host 1-Universal Wheel 2-Charging Spring Plate 3-Side Brush 4- Battery Cover 5-Suction Port 6-Chassis 7-Side Wheel...
-
Page 9: Dust Container
Robot Vacuum Host 1-Middle Cover 2-Dust Container 3-DC Power Plug 4-Power Switch Dust Container 1-Dust Container Cover, 2-Basic Filter 3-Dust Container 4- High-efficiency Filter 5-Dust Container Sealing Pad... -
Page 10: Charging Base
Charging Base 1-Charging Indicator 2-DC Power Plug 3-Charging Port... - Page 11 3.2 Product Specifications Structure Electronic Diameter of host:320mm Voltage: 14.4V Thickness of host:78mm Battery capacity: 2500mAh Net weight of host:2.5kg Main button type: LED button Attachments Operation Specifications Dust container capacity: 600ml Charge type: manual / automatic Dishcloth (polyester cotton): 316*177*4mm Cleaning time: about 100min Charge time: 240-360min Strong Suction...
-
Page 12: Remote Control Instructions
4.1 Remote Control Instructions Power Switch Display Screen Smart Cleaning Mode Recharge Key Direction Key Confirm Key Clock Setting Key Suction Setting Key Single Room Cleaning Key Border Cleaning Key Fixed-Point Cleaning Mode Reservation Settings Key... - Page 13 Smart Cleaning Key Press this button to enter the mode. Recharge Key Press this button to enter the charging mode, and the remote control screen shows " " Forward Key Press this key, the machine continues to move forward, and the machine is suspended after loosening. In the reservation mode or in the time setting mode, press this key to increase the number.
- Page 14 Operation Instructions Place the Charging Base Put the charging base against the wall. Don't put anything around it, and don't put any radiation, such as a mirror. Turn on the power switch on the machine side, "I" is boot, "O" is shutdown. If the machine stops working for more than 5 minutes, the machine will turn into sleeping mode.
- Page 15 Charge the Host Before charging the machine, make sure that the power switch is on. Plug the power adapter directly into the machine, and turn on the power, and then the machine is charged. Before charging the machine, make sure that the power switch is on.
-
Page 16: Auto Charging
Auto Charging The machine can be auto charged by pressing the recharging key of the remote control. When the cleaning is completed or the power is too low, the machine will automatically locate the charging seat for charging. Please keep the charging seat on power, or the machine will not be able to find the charging seat. -
Page 17: Operating Mode
Switching Modes Standby Mode The power switch is on, the A key is on, and the machine is in a stationary state. Sleep Mode The power switch is on, the A key flashes, and the machine is in a stationary state. Operating Mode The machine is in the working state, the A key is lighting, and the machine turns into the cleaning mode. -
Page 18: Cleaning Mode
Cleaning Mode Fixed-point Cleaning Smart Cleaning The machine will clean the The fixed point cleaning function is room in planned routes based on only suitable for operation on the APP. the room situations Edge Sweeping / Border Cleaning The machine will sweep along the edges of the room. - Page 19 5.1 Side Brush Cleaning and Replacement Check the brush condition: whether it has been damaged or entangled with foreign material, then clean the brush with a cleaning tool or cloth. When the side brush can not be used, please replace it in time. 5.2 Dust Container and Filter Cleaning Open the top cover to remove the dust container.
- Page 20 Remove the HEPA Filter Open the litter box to remove the filter.
- Page 21 Lower the level of the dust container to dump the rubbish. The dust container, high efficiency filter screen and basic filter screen are thoroughly cleaned, and the basic filter screen should be washed after 15-30 days, and the efficient filter screen is recommended to be changed every 3-4 months.
- Page 22 Dry the components until they are completely dry. Re-install the basic screen and the HEPA filter back to the garbage can.
-
Page 23: Maintenance Of Other Components
5.4 Maintenance Of Other Components Electrode Poles Sensor Clean the electrodes and sensor gently with dry cloth. Charging Base Clean the charging ports with cleaning tools or clean soft cloth. Clean suction passages regularly with cleaning tools or soft cloth. -
Page 24: Alarm Prompt
6.1 Alarm Prompt Message Failure Cause Solution Dust container not installed Dust Container was taken out and Pack the filter back into the not installed dust container and press the cleaning key Please check whether the The wheels holder is blocked Check whether the wheel has wheels are jammed been wound and clean it up... -
Page 25: Replaceable Components
6.2 Replaceable Components Dust Container Shell Fan Module Side Brush Module Right Wheel Module Left Wheel Module Universal Wheel Module Right Side Brush Left Side Brush Lithium Battery Battery Cover Scraper Pressure Plate... - Page 26 Make Life Smart Manufacturer: TESVOR, Shenzhen Tian You Intelligence Co., Ltd Address: 2nd Floor, Building B, You Xin Da Industrial Park, Guangming New District, Shenzhen, China Website: www.tesvor.com Customer Contact: service@tesvor.com...
