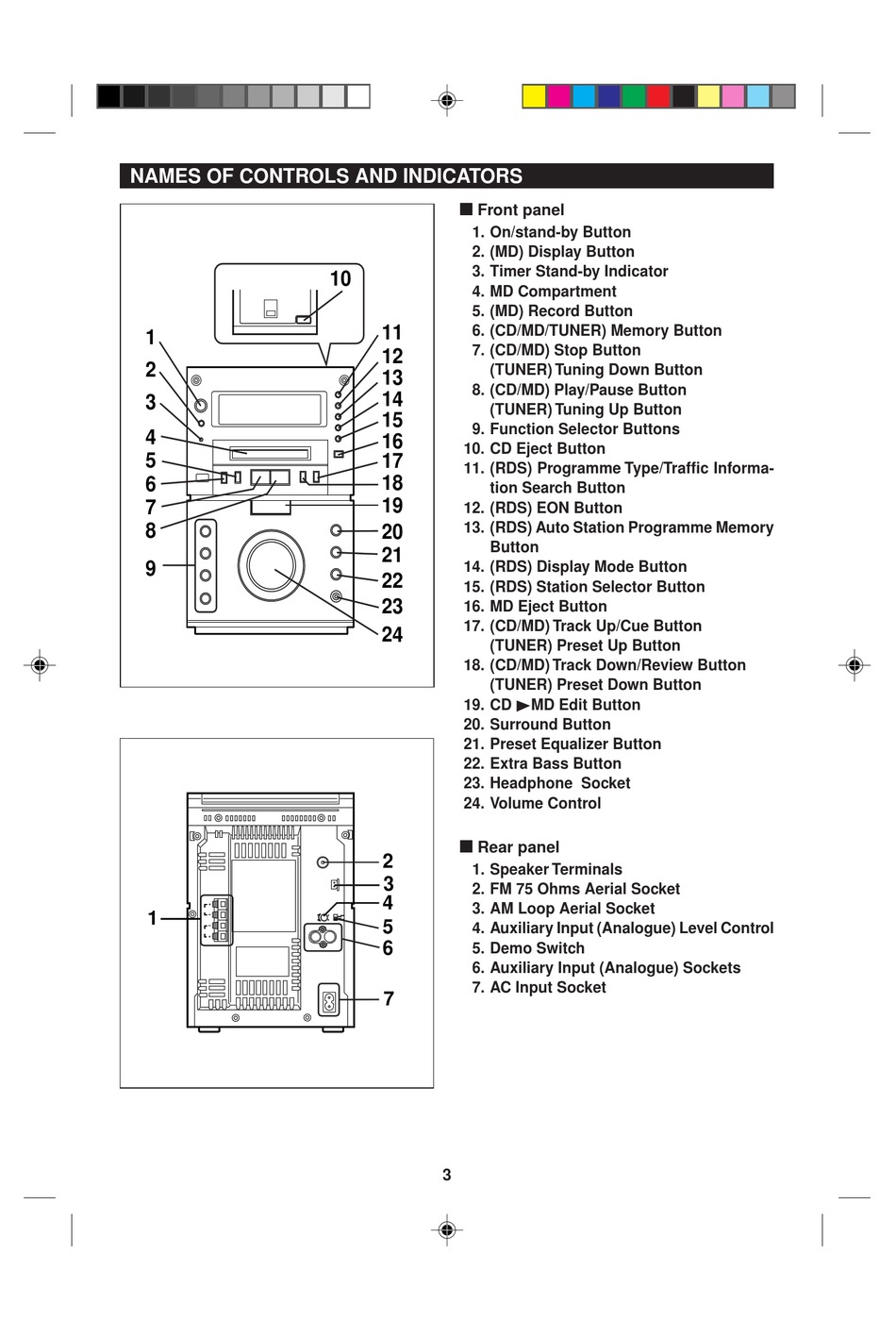

NAMES OF CONTROLS AND INDICATORS

1
2
3
4
5
6
7
8
9
1
Front panel
1. On/stand-by Button
2. (MD) Display Button
3. Timer Stand-by Indicator
10
4. MD Compartment
5. (MD) Record Button
11 6. (CD/MD/TUNER) Memory Button
7. (CD/MD) Stop Button
12
(TUNER) Tuning Down Button
13
8. (CD/MD) Play/Pause Button
14
(TUNER) Tuning Up Button
15
9. Function Selector Buttons
16
10. CD Eject Button
17
11. (RDS) Programme Type/Traffic Informa-
18
tion Search Button
19
12. (RDS) EON Button
13. (RDS) Auto Station Programme Memory
20
Button
21
14. (RDS) Display Mode Button
22
15. (RDS) Station Selector Button
23
16. MD Eject Button
17. (CD/MD) Track Up/Cue Button
24
(TUNER) Preset Up Button
18. (CD/MD) Track Down/Review Button
(TUNER) Preset Down Button
19. CD 0MD Edit Button
20. Surround Button
21. Preset Equalizer Button
22. Extra Bass Button
23. Headphone Socket
24. Volume Control
Rear panel
2
1. Speaker Terminals
3
2. FM 75 Ohms Aerial Socket
4
3. AM Loop Aerial Socket
5
4. Auxiliary Input (Analogue) Level Control
6
5. Demo Switch
6. Auxiliary Input (Analogue) Sockets
7. AC Input Socket
7
3
